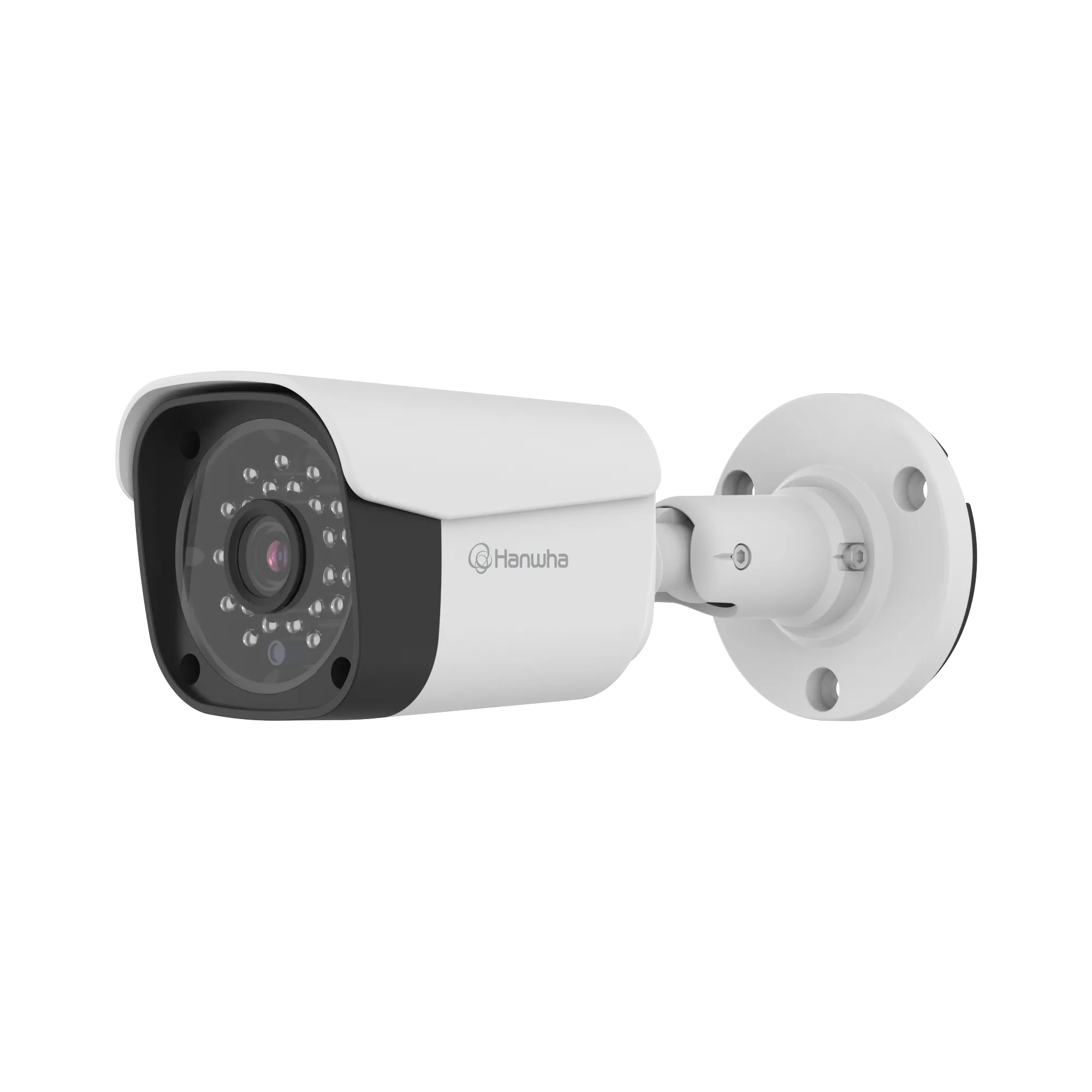

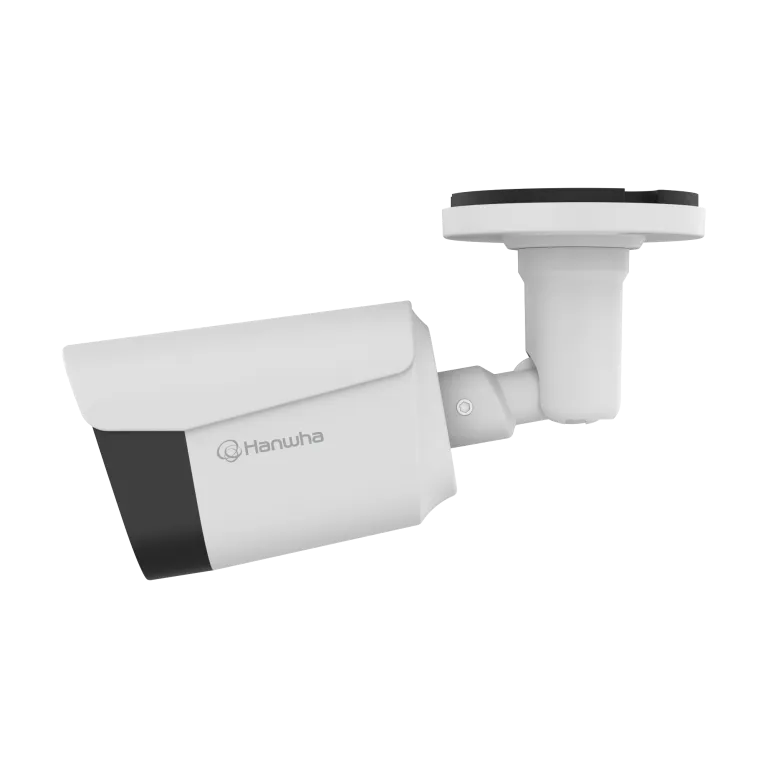

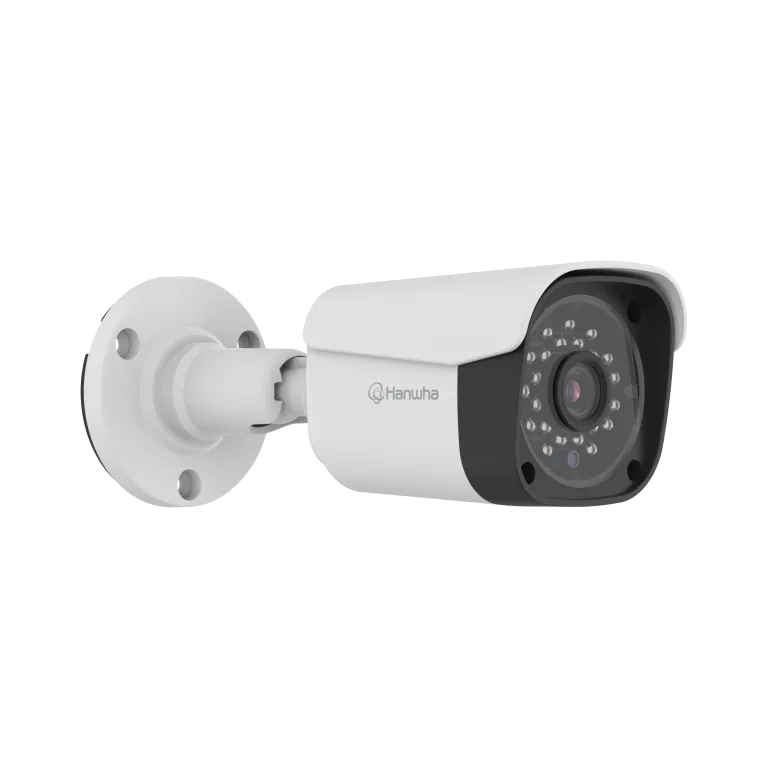

Hanwha - ACO-6020R - Wisenet A Series 2MP IR bullet camera, AHD / TVI / CVI / CVBS formats are available, 2MP @ 30 FPS, 3.6mm fixed focal lens, FoV H: 81° / V: 42°, DWDR, IR distance 25m(82 ft), day & night , IP67, IK10, 12VDC, Analog, white.
Hanwha - ACO-6020R - Wisenet A Series 2MP IR bullet camera, AHD / TVI / CVI / CVBS formats are available, 2MP @ 30 FPS, 3.6mm fixed focal lens, FoV H: 81° / V: 42°, DWDR, IR distance 25m(82 ft), day & night , IP67, IK10, 12VDC, Analog, white.
Hanwha - ACO-6020R - Wisenet A Series 2MP IR bullet camera, AHD / TVI / CVI / CVBS formats are available, 2MP @ 30 FPS, 3.6mm fixed focal lens, FoV H: 81° / V: 42°, DWDR, IR distance 25m(82 ft), day & night , IP67, IK10, 12VDC, Analog, white.
Hanwha - ACO-6020R - Wisenet A Series 2MP IR bullet camera, AHD / TVI / CVI / CVBS formats are available, 2MP @ 30 FPS, 3.6mm fixed focal lens, FoV H: 81° / V: 42°, DWDR, IR distance 25m(82 ft), day & night , IP67, IK10, 12VDC, Analog, white.
Hanwha - ACO-6020R - Wisenet A Series 2MP IR bullet camera, AHD / TVI / CVI / CVBS formats are available, 2MP @ 30 FPS, 3.6mm fixed focal lens, FoV H: 81° / V: 42°, DWDR, IR distance 25m(82 ft), day & night , IP67, IK10, 12VDC, Analog, white.
Hanwha - ACO-6020R - Wisenet A Series 2MP IR bullet camera, AHD / TVI / CVI / CVBS formats are available, 2MP @ 30 FPS, 3.6mm fixed focal lens, FoV H: 81° / V: 42°, DWDR, IR distance 25m(82 ft), day & night , IP67, IK10, 12VDC, Analog, white. Hanwha - ACO-6020R - Wisenet A Series 2MP IR bullet camera, AHD / TVI / CVI / CVBS formats are available, 2MP @ 30 FPS, 3.6mm fixed focal lens, FoV H: 81° / V: 42°, DWDR, IR distance 25m(82 ft), day & night , IP67, IK10, 12VDC, Analog, white. Hanwha - ACO-6020R - Wisenet A Series 2MP IR bullet camera, AHD / TVI / CVI / CVBS formats are available, 2MP @ 30 FPS, 3.6mm fixed focal lens, FoV H: 81° / V: 42°, DWDR, IR distance 25m(82 ft), day & night , IP67, IK10, 12VDC, Analog, white. Hanwha - ACO-6020R - Wisenet A Series 2MP IR bullet camera, AHD / TVI / CVI / CVBS formats are available, 2MP @ 30 FPS, 3.6mm fixed focal lens, FoV H: 81° / V: 42°, DWDR, IR distance 25m(82 ft), day & night , IP67, IK10, 12VDC, Analog, white.

Hanwha - ACO-6020R - Wisenet A Series 2MP IR bullet camera, AHD / TVI / CVI / CVBS formats are available, 2MP @ 30 FPS, 3.6mm fixed focal lens, FoV H: 81° / V: 42°, DWDR, IR distance 25m(82 ft), day & night , IP67, IK10, 12VDC, Analog, white.

Part number:
ACO-6020R
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

Wisenet A Series 2MP IR bullet camera, AHD / TVI / CVI / CVBS formats are available, 2MP @ 30 FPS, 3.6mm fixed focal lens, FoV H: 81° / V: 42°, DWDR, IR distance 25m(82 ft), day & night , IP67, IK10, 12VDC, Analog, white.



Features:

  • 2MP Full HD resolution @ 30FPS
  • 0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
  • 3.6mm fixed focal lens FoV H: 81° / V: 42°
  • Day & Night (ICR), DWDR
  • IR distance 20m(65.6 ft)
  • IP67, IK10
  • 12v DC power
  • Transmission distance Max.500m
  • Easy installation (Plug & play), Coaxial control
  • Multi-protocol compatible with AHD, TVI, CVI, CVBS
Video
Imaging Device1/3" CMOS
Resolution1920x1080
Max. Framerate30fps
Min. IlluminationColor : 0.08Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED on)
Video OutBNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance300m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio)3.6mm fixed focal
Max. Aperture RatioF1.6
Angular Field of ViewH: 78° / V: 41° / D: 92°
Min. Object Distance2.0m(6.56ft)
Operationala
Day & NightAuto(ICR)
Backlight CompensationBLC
Wide Dynamic RangeDWDR
Digital Noise Reduction2D + 3DNR
Gain ControlLOW / MIDDLE / HIGH
White BalanceATW / AWC
Electronic Shutter SpeedAUTO(1/30~1/50,000)
Video RotationMIRROR/V-FLIP/ROTATE
IR Viewable Length25m(82.02ft)
Coaxial ProtocolACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity-30°C~+55°C(-22°F~+131°F) / 0~90% RH
Storage Temperature / Humidity-30°C~+60°C(-22°F~+140°F) / 0~90% RH
CertificationIP67, IK10
Input Voltage12VDC
Power ConsumptionMax 3.6W, Typical 2.9W
Mechanical
Color / MaterialWhite / Aluminum / Plastic
Product Dimensions / Weight70(W)x69(H)x186(D)mm(2.76"x2.72"x7.32"), 420g(0.93lb)
BackboxSBV-A14B
