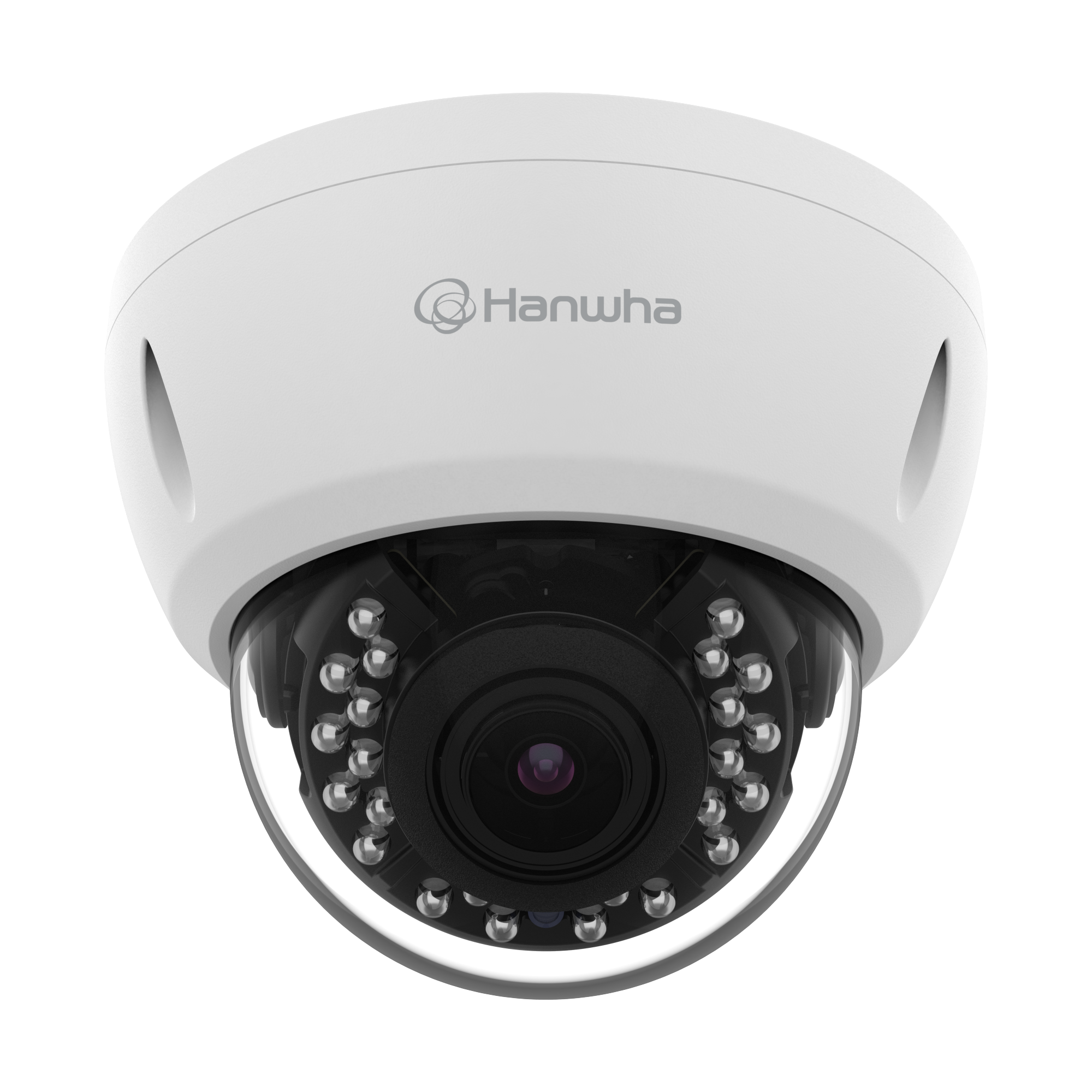

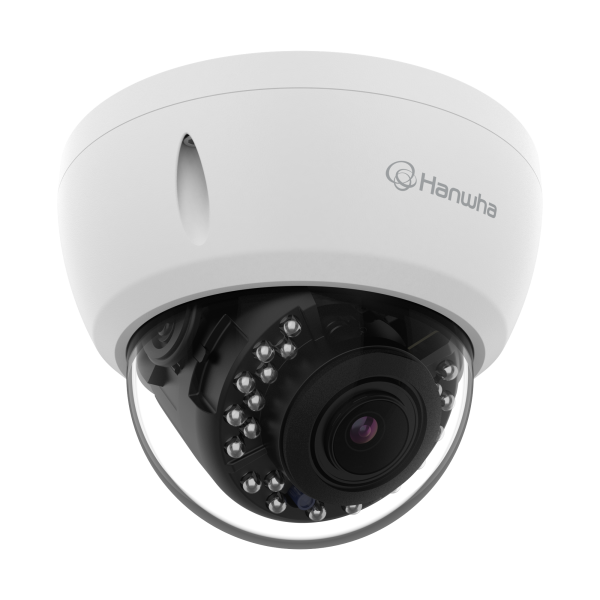

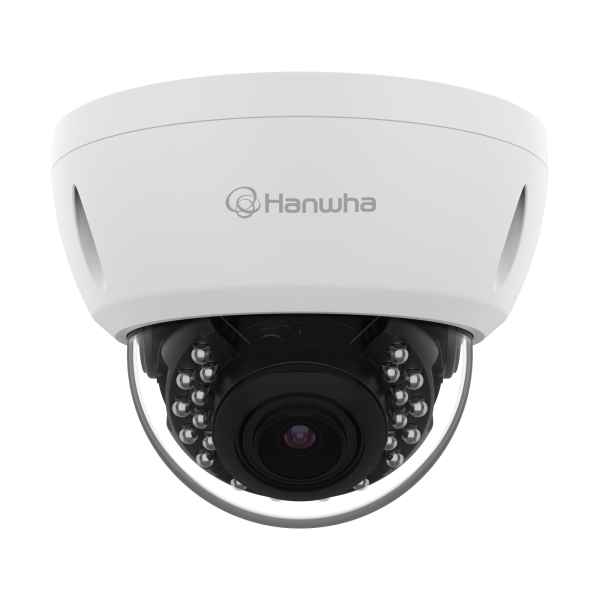

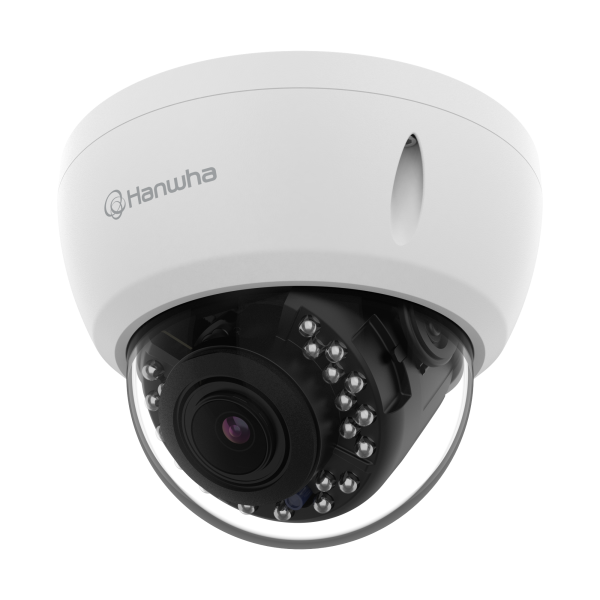

Hanwha - ACV-8081R - Wisenet A Series 5MP IR vandal dome camera, AHD / TVI / CVI / CVBS formats are available, 5MP @ 30fps, motorized vari-focal lens 3x (3.5~10.5mm) (99.1°~ 30.3°), WDR, IR distance 20m(65.6 ft), day & night, IP66, IK10, 12VDC, Analo
Part number:
ACV-8081R
Price:
Wisenet A Series 5MP IR vandal dome camera, AHD / TVI / CVI / CVBS formats are available, 5MP @ 30fps, motorized vari-focal lens 3x (3.5~10.5mm) (99.1°~ 30.3°), WDR, IR distance 20m(65.6 ft), day & night, IP66, IK10, 12VDC, Analog, white.
Features:
- 5MP resolution @ 30FPS, 4MP @ CVI
- 0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
- 3.5mm~10.5mm (3x) motorized varifocal
- Day & Night (ICR), WDR
- IR distance 20m(65.6 ft)
- IP67, IK10
- 12v DC power
- Transmission distance Max.500m
- Easy installation (Plug & play), Coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
| Specifications | |
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2592x1944, 2560x1440 |
| Max. Framerate | Max. 30fps (@5MP Max. 20fps) |
| Min. Illumination | Color : 0.06Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED on) |
| Video Out | BNC: AHD/TVI/CVI/CVBS Selectable |
| Video Transmission Distance | 300m(5C2V Coaxial Cable) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.5mm~10.5mm (3x) motorized varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 82°(Wide)~27°(Tele) V: 60°(Wide)~20°(Tele) D: 105°(Wide)~33°(Tele) |
| Min. Object Distance | 0.8m(2.62ft) |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR |
| Wide Dynamic Range | 95dB |
| Digital Noise Reduction | 2D + 3DNR |
| Gain Control | LOW / MIDDLE / HIGH |
| White Balance | ATW / AWC |
| Electronic Shutter Speed | AUTO(1/30~1/30,000) |
| Video Rotation | MIRROR/V-FLIP/ROTATE |
| IR Viewable Length | 25m(82.02ft) |
| Coaxial Protocol | ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS: Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~90% RH |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F~+140°F) / 0~90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 12VDC |
| Power Consumption | Max 7.2W, Typical 5.8W |
| Mechanical | |
| Color / Material | White / Aluminum / Plastic |
| Product Dimensions / Weight | ø132x103mm(ø5.20"x4.06"), 550g(1.21lb) |
