• Max up to 8CH inputs
• Analytics events based on AI engine (WiseAI)
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• Business intelligence based on AI engine (People/Vehicle counting, Queue management, Heatmap)
• Rack mount installation
• Support SDK/API for interworking with 3rd party VMS
• WAVE, Genetec, Milestone integration
| Network | |
|---|---|
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SRTP |
| IP Version | IPv4/v6 |
| OS | Windows 11/10, macOS 10.13 |
| Web Browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software Type | WebViewer, WAVE, Genetec, Milestone |
| Indicator/Interface | |
| Front Indicator | LED (Status indicator) : Alarm(1), Power(1), Network(1) |
| Ethernet | RJ-45 1ea (1Gbps) |

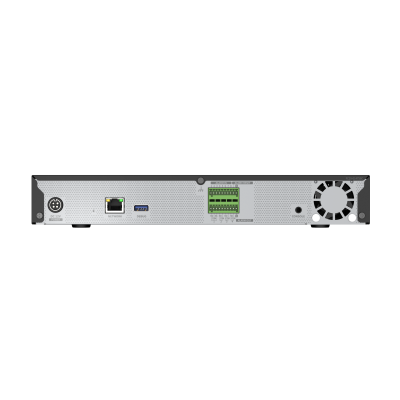

| Alarm | (1) In (8EA, Terminal Block), (2) Alarm Reset (1EA), (3) Out (4EA, Terminal Block) - Relay Out1 (NO/NC/COM) - Relay Out2~4 (NO/COM) |
| USB | 1EA (Rear 1 x USB 3.0) for DEBUG |
| Serial | Not Supported (internal Debug) |
| Power Cord | DIN 4P 12V, 4A |
| System | |
| CPU | NVIDIA ORIN NX 8GB (SOM) |
| Environmental | |
| Operating Temperature / Humidity | +0°C to +40°C (+32°F to +104°F) / 20% ~ 85% RH |
| Electrical | |
| Power | 100~240 VAC ±10%; 50/60Hz, 12V, 4A Adaptor |
| Power Consumption | 28W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 300 x 47.6 x 240.9mm (11.81 x 1.87 x 9.48inch) |
| Weight | 1.39kg |
