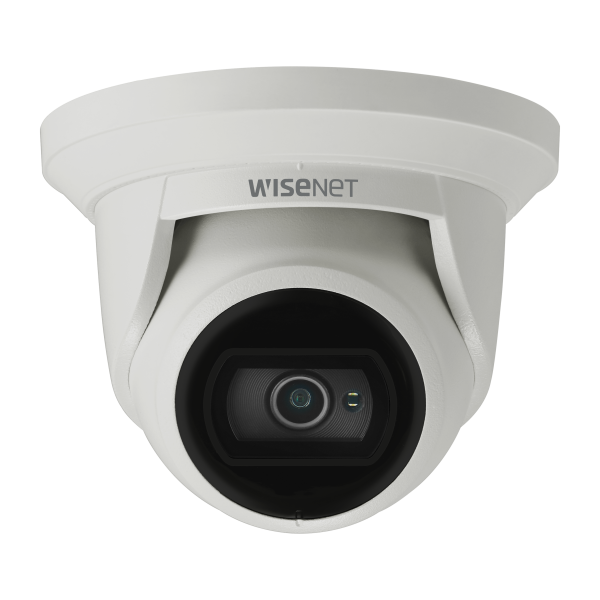

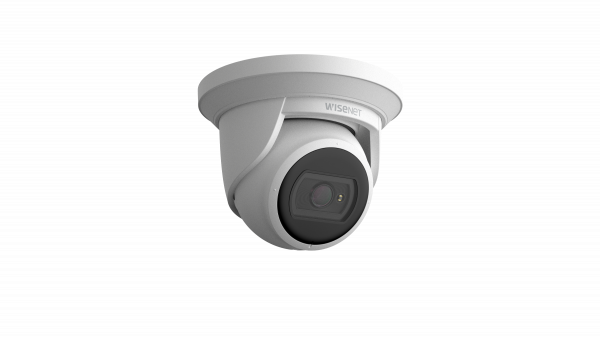

Hanwha - ANE-L6012R - 2MP Super-Compact IR Flateye Camera
Part number:
ANE-L6012R
Price:
Wisenet A Series turret camera, 2MP @ 30 FPS, 3mm fixed focal lens, FoV H: 107.7° / V: 59.0°, WiseStream II, triple codec (H.265/H.264/MJPEG), 120dB WDR, IR LEDs 20m(65.62ft), day & night (ICR), virtual area (intrusion/enter/exit), virtual Line (crossing/ direction), motion detection, tampering, hallway view, built-in SD card slot (1x32GB), IP66, PoE, white.
Features:
- 2 megapixel (1920 x 1080) resolution
- Built-in 3mm fixed lens
- 30fps@ all resolutions (H.265/H.264)
- H.265/H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Virtual Line Crossing/Directional Detection, Enter/Exit, Tampering, Motion detection
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR viewable length 20m
- IP67,IK10 support
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG : Max. 10fps |
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) BW : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 107.7° / V: 59.0° / D: 126.7° |
| Min. Object Distance | 1.1m(3.6ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, rectangler zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90/270) |
| Analytics | Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm Triggers | Analytics |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC recording at event triggers |
| IR Viewable Length | 20m(65.62ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.265/H.264: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| General | |
| Webpage Language | English |
| Edge Storage | Micro SD/SDHC 1slot 32GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH |
| Certification | IP67, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max 6.6W, Typical 4.8W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø125.0x87.4mm(Ø4.92x3.44"), 630g |
| Compatible Conduit hole / Gangbox | None / Single, Double, 4" Octagon |
| Backbox | SBV-A14B |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 28.1m(92.04ft) |
| Observe (63PPM/ 19PPF) | 11.2m(36.82ft) |
| Recognize (125PPM/ 38PPF) | 5.6m(18.41ft) |
| Identify (250PPM/ 76PPF) | 2.8m(9.20ft) |
Name
Description
Size
Downloads
File
datasheet
0.8mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.6mb
File
A&E Specifications
0mb
