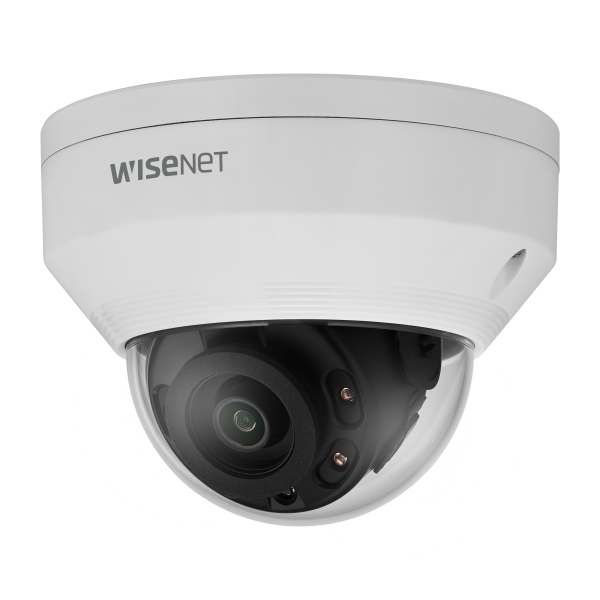

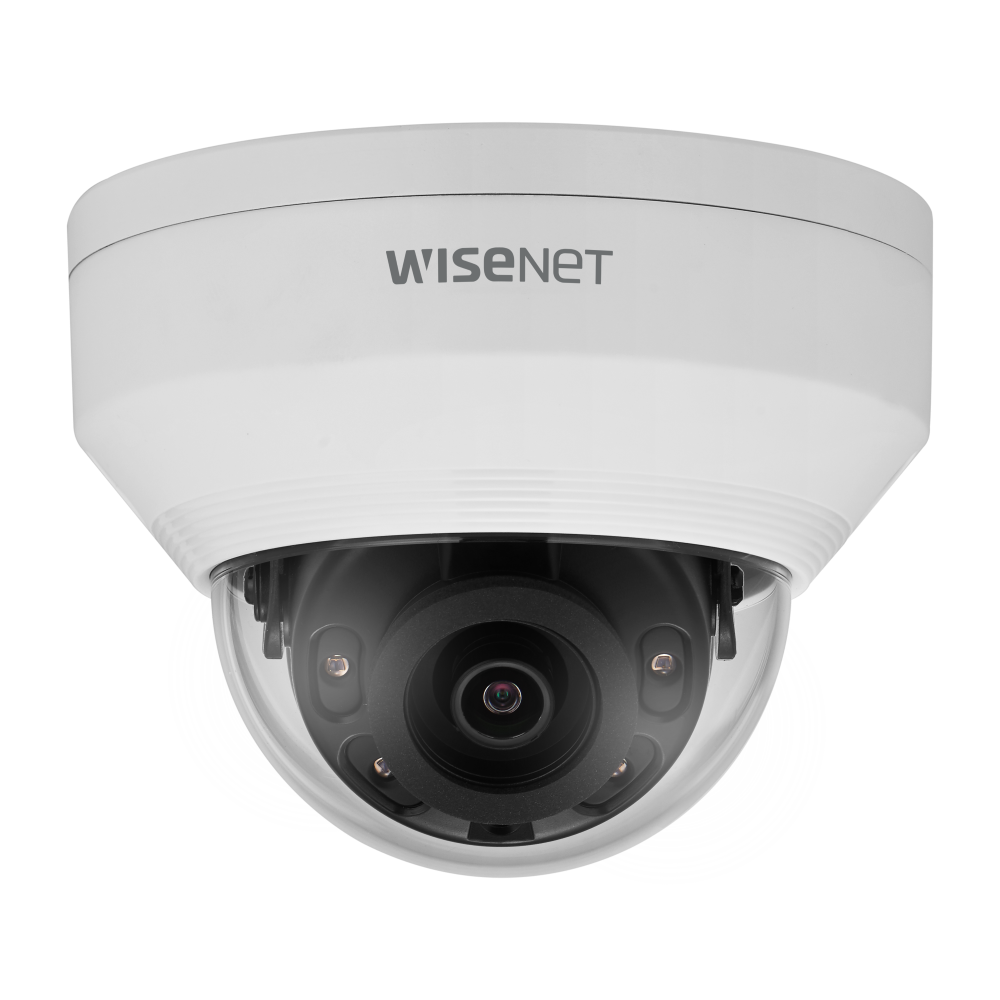

Hanwha - ANV-L6012R - 2MP IR Vandal Dome
Part number:
ANV-L6012R
Price:
Wisenet A Series network vandal resistant IR Dome PoE Camera, 2MP @ 30 FPS, 2.8mm fixed focal lens, triple codec (H.265/H.264/MJPEG) with WiseStream II,120dB, IR viewable length 30m(98.43ft), Day & Night (ICR), FOV H: 113.7° / V: 61.5° , IVA, Defocus detection, Motion detection, Tampering, IR viewable length 30m(98.43ft), SD card, Hallway View, IP66, IK10.
Features:
- 2 Megapixel (1920 x 1080) resolution
- 2.8mm lens w/ 113.7° HFoV
- 30fps@all resolutions (H.265/H.264)
- H.265/H.264, MJPEG codec support, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway View, WiseStream II support
- IR viewable length 30m
- IP66, IK10 support
- White camera body
| Specifications | |
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG : Max. 10fps |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 113.7° / V: 61.5° / D: 134.4° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, rectangler zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90/270) |
| Analytics | Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm Triggers | Analytics |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC recording at event triggers |
| IR Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.265/H.264: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
