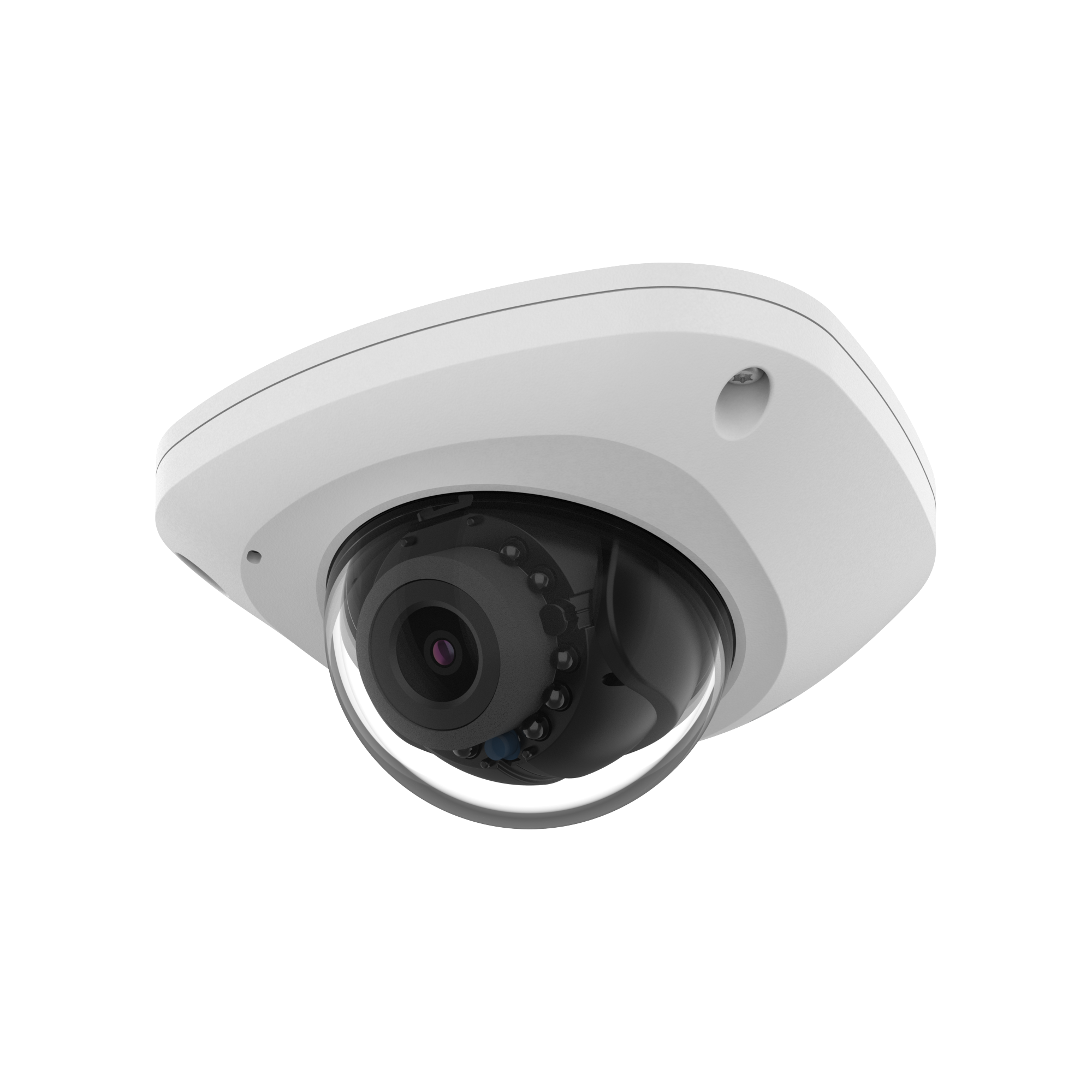

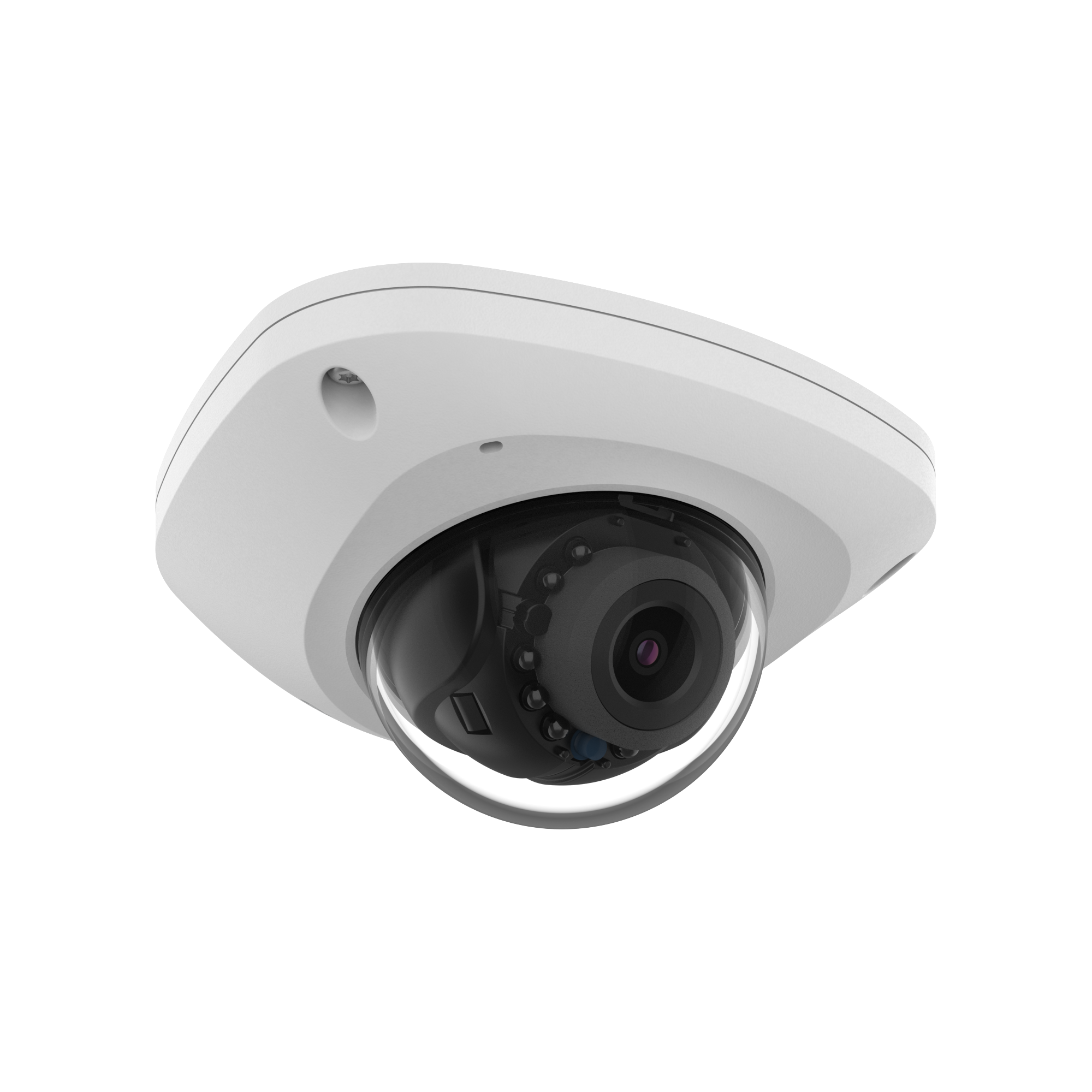

Hanwha - ANV-L6023 - 2MP IR Flateye Camera, 3.6mm Lens
• 2 Megapixel (1920 x 1080) resolution
• 3.6mm lens w/ 94.8° HFoV
• 30fps@all resolutions (H.265/H.264)
• H.265/H.264, MJPEG codec support, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
• Micro SD/SDHC memory slot (Max. 128GB), PoE
• Hallway View, WiseStream II support
• IR viewable length 15m
• IP66, IK10, NEMA4X support
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264 : Max. 30fps/25fps (60Hz/50Hz), MJPEG : Max. 15fps |
| Min. Illumination | Color: 0.03Lux (F2.0, 1/30sec), BW: 0Lux (IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 94.8° / V: 49.3° / D: 114.3° |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | ±5° / 0°~67° / ±90° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Motion detection, Tampering, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers |
| Audio In | Line-in |
| IR Viewable Length | 15m (49.21ft) |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law / G.726 Selectable, G.726(ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | WiseStream II |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming | Unicast (6 users) / Multicast, Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API), Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 95% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 6.70W, Typical 5.00W |
| Mechanical | |
| Color / Material | White / Aluminum |
| Product Dimensions / Weight | 98.9 x 52.0 x 100.0mm (3.89 x 2.05 x 3.94"), 295g (0.65 lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/8PPF) | 35.3m (115.84ft) |
| Observe (63PPM/19PPF) | 14.1m (46.33ft) |
| Recognize (125PPM/38PPF) | 7.1m (23.17ft) |
| Identify (250PPM/76PPF) | 3.5m (11.58ft) |
This 2MP IR flat-eye camera features a 1/2.8" CMOS sensor delivering 1920 x 1080 resolution at up to 30fps and includes a 3.6mm fixed lens with F2.0 aperture, providing a 94.8° horizontal field of view. IR illumination provides 15 meters of night vision with a minimum illumination of 0 Lux in black-and-white mode. Low light sensitivity reaches 0.03 Lux in color mode. Video enhancements include 120dB WDR, SSNR noise reduction, BLC, SSDR, and LDC support.
The camera supports H.265/H.264/MJPEG compression with WiseStream II technology and includes line-in audio. Analytics include defocus detection, motion detection, tampering, virtual area, and line. The camera includes 4 polygonal motion detection zones and 6 rectangular privacy mask zones. It is rated IP66, IK10, and NEMA 4X, operating from -30°C to +55°C. Edge storage is available via a microSD slot up to 128GB. The camera is powered by PoE, Class 3, with typical power consumption of 5.0-6.7W. DORI ratings include detection at 35.3m and identification at 3.5m.
