Hanwha - ANV-L6023R - 2MP Vandal-Resistant Network IR Flateye Dome Wisenet A Series Camera, 3.6mm Fixed Focal Lens
Product Overview

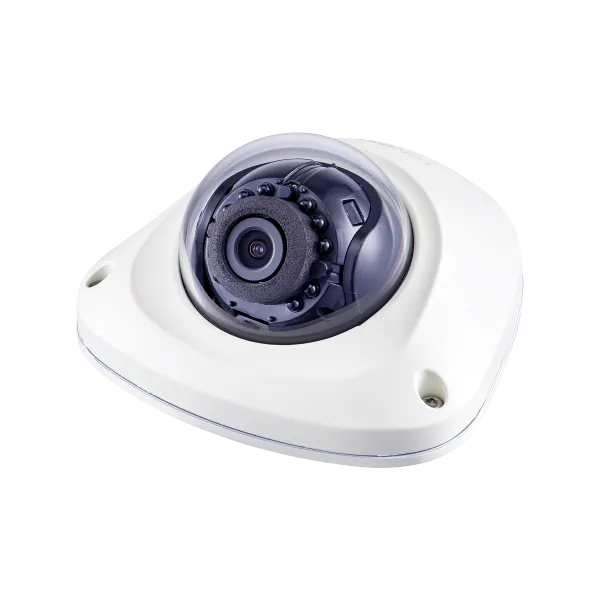

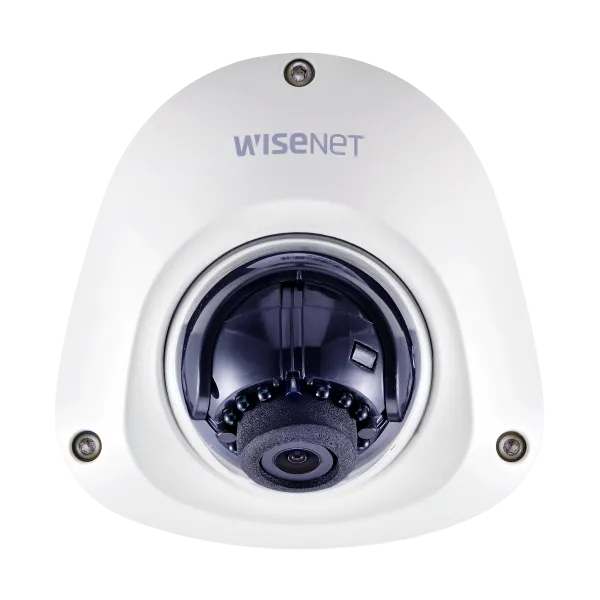

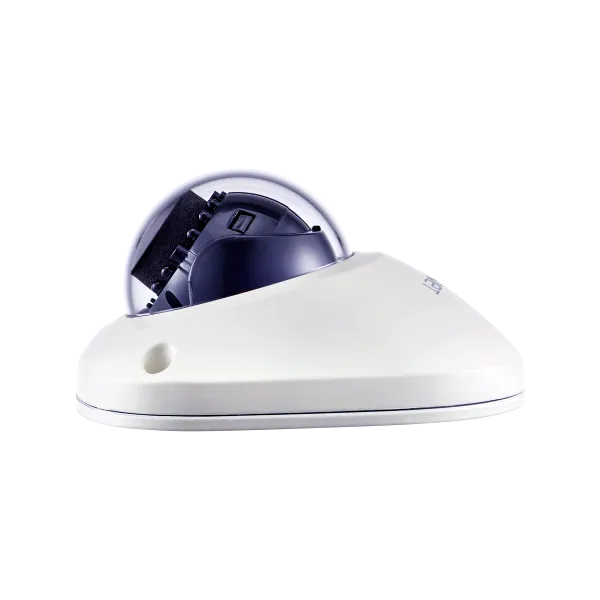

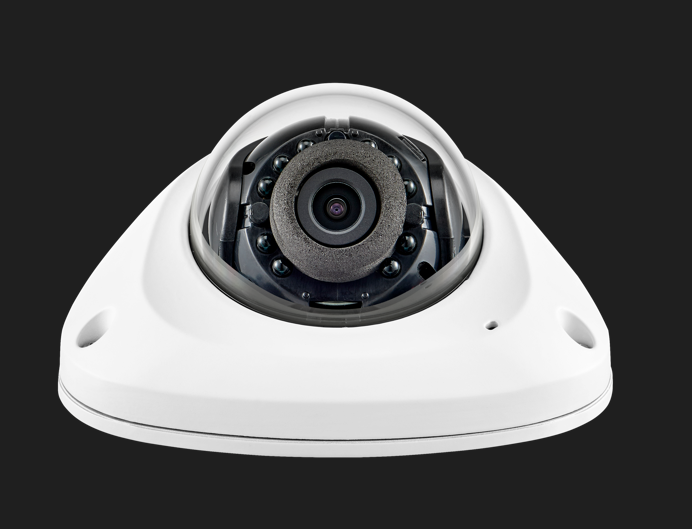

The ANV-L6023R is an outdoor, vandal-resistant mini dome camera featuring a 1/2.8" CMOS sensor and a 3.6mm fixed lens. It delivers 2MP resolution at up to 30 fps, utilizing H.265/H.264/MJPEG compression alongside WiseStream II bandwidth optimization.
Key Configuration
- • Imaging device: 1/2.8" CMOS; resolution: 1920×1080 (2MP) at up to 30 fps (H.265/H.264)
- • Lens: 3.6mm fixed focal, F2.0; horizontal FOV: 95°, vertical: 50°, diagonal: 115°
- • IR viewable length: 15m (49 ft); wavelength: 850nm; minimum illumination: color 0.03 lux, 0 lux with IR
- • Video compression: H.265/H.264 (Main/Baseline/High), MJPEG; WiseStreamⅡ
- • Power: PoE (IEEE 802.3af, Class 3); max 6.7W, typical 5.0W
Key Features
Equipped with 120dB WDR and SSNR noise reduction, this camera features 90°/270° Hallway View support and a 3-axis gimbal mechanism. Its edge analytics engine covers motion detection, tampering, defocus, virtual area intrusion, and virtual line crossing, while supporting 6 privacy masks. Operating on a 512MB RAM/256MB Flash architecture, hardware connectivity includes a line-in audio input and a metal-shielded RJ-45 port. Cyber protection is heavily hardened with firmware encryption, HTTPS, 802.1X, and SD card partition encryption, with local storage supporting up to 128GB, and a CVBS output simplifying installation alignment.
Technical Context
Featuring a 0.5m minimum object distance with fixed focus, an electronic shutter 1/5 to 1/12,000 sec, and Lens Distortion Correction (LDC), this mini dome supports 3 streaming profiles for up to 6 unicast and unlimited multicast users. Its networking foundation features a standard IT protocol suite running on a secure architecture. The unit is completely enclosed in an IP66/IK10/NEMA4X certified casing for robust physical and environmental protection.
Installation Notes
Measuring 98.9 × 52.0 × 100.0 mm and weighing 295g, this white aluminum mini dome is designed for discreet outdoor installation. Its IP66/IK10/NEMA4X-rated housing ensures weather, vandal, and corrosion resistance across an operating range of -30°C to 55°C (0–95% RH). Powered via PoE Class 3, the hardware includes a single microSD slot for edge storage, a line-in audio input, and a CVBS video output to streamline local installation alignment.
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps(@2MP Max. 4fps) |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 95° / V: 50° / D: 115° |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | ±5° / 0°~67° / ±90° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Defocus detection, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers |
| Audio In | Line-in |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 15m (49.21ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | WiseStreamⅡ |
| Video Quality Adjustment | H.265/H.264: Target bitrate level control MJPEG: Quality level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F ~ +131°F) / 0~95% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 95% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max 6.70W, Typical 5.00W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | 98.9 x 52.0 x 100.0 mm (3.89 x 2.05 x 3.94"), 295 g (0.65 lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/8PPF) | 35.3m (115.84ft) |
| Observe (63PPM/19PPF) | 14.1m (46.33ft) |
| Recognize (125PPM/38PPF) | 7.1m (23.17ft) |
| Identify (250PPM/76PPF) | 3.5m (11.58ft) |
