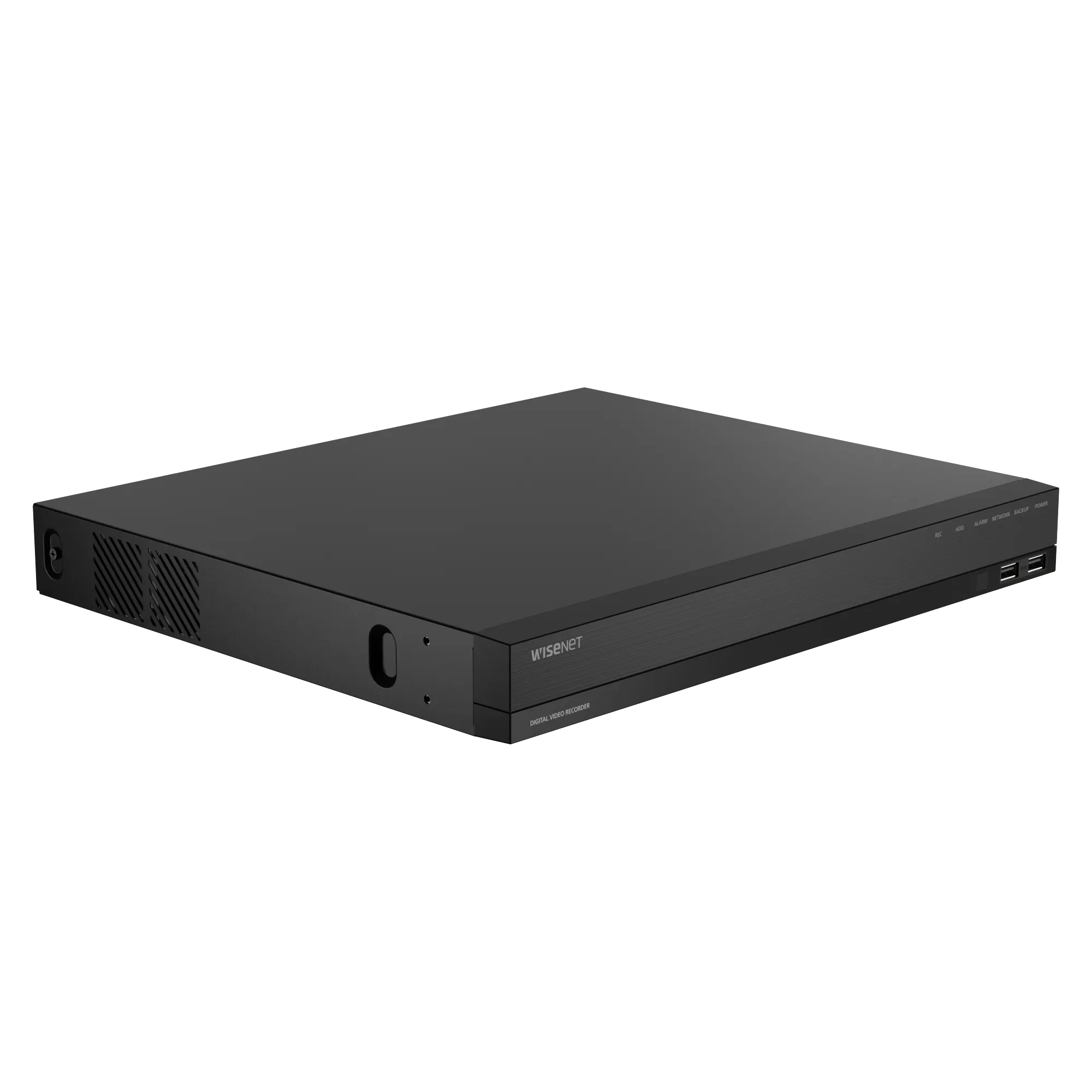

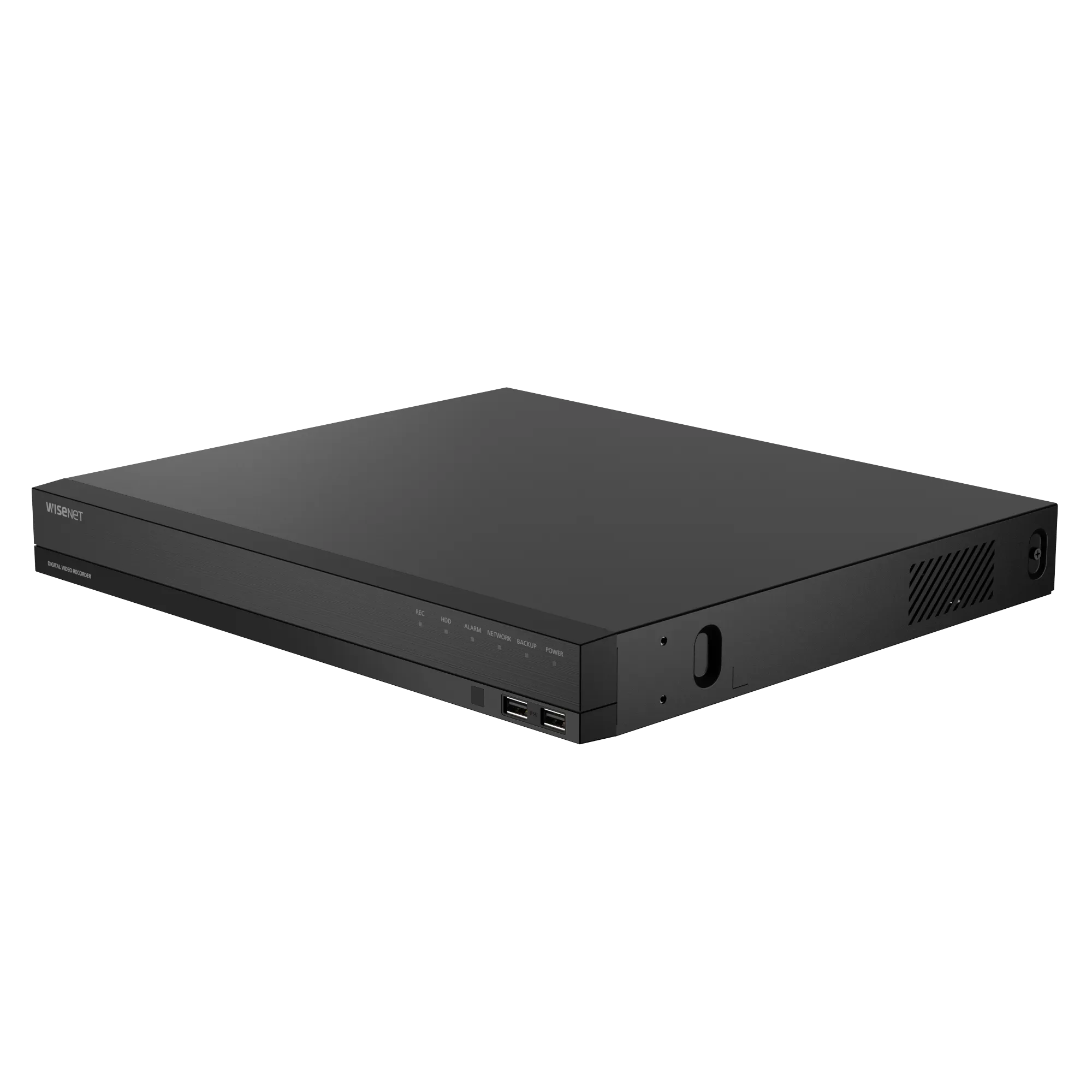

16-Channel AHD, TVI, CVI, CVBS, IP Recorder 4TB
Features:
- 5-in-1 16CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 18-Channels available (16-Channel Analog Maximum + 2 additional Channel Network, Network Maximum 18 Channel supported, depending on number of analog channels), up to 5MP. 1 IP channel can be utilized for each analog channel not being used.
- H.265, H.264, MJPEG codec
- 12fps@5MP (Half resolution recording), 15fps@4MP (Half resolution recording), 15fps@2MP recording, per channel
- Recording Bandwidth Max. 100Mbps.
- 4CH audio input/ 1CH audio output, 4 alarm input and 1 relay output, coaxial control
- Up to 2 SATA HDDs (6TB/HDD)
- HDMI/VGA video output, 1 X spot monitor output
- P2P service (QR code connect) for easy Wisenet Viewer / Wisenet Mobile app connection
- NDAA & FCC Compliant
| Specifications | ||
| Display | ||
| Analog camera | Inputs | 16CH(1Vp-p 75ohm, BNC) |
| Signal Type | AHD(5MP Half, 4MP Half, 1080p) HD TVI(5MP Half, 4MP Half, 1080p) HD CVI(5MP Half, 4MP Half, 1080p) CVBS(NTSC/PAL) | |
| Network camera | Inputs | Additional 2CH (Max. 18CH) |
| Resolution | 5MP ~ CIF | |
| Protocols | SUNAPI(Wisenet), ONVIF | |
| Live | Local Display | 1x HDMI, 1x VGA [Single Mode]
[Dual Mode] Clone
|
| Multi Screen Display | [Local monitor]
[Web] 1 / 2 / 3 / 4 / 6 / 1+5 / 1+ 7 / 9 | |
| Resolution | [Analog Camera(NTSC/PAL)] 5MP(Half ), 4MP(Half), 2MP [Network Camera] - Typ. 2MP(240fps) | |
| Performance | ||
| Operating System | Embedded | Linux |
| Record Rate(Analog) | [Analog Camera(NTSC/PAL)] 5MP(5M Half 12fps/12fps) 4MP(4M Half 15fps/12fps) 2MP(2M 15fps/12fps)
4MP will only record 2MP, and 5MP will only record 2.5MP |
| Resolution | 5MP ~ CIF |
| Event Trigger | Alarm Input Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event, Dynamic camera event |
| Search & Play | User | Max. 4 users (Set 1, Remote 3) |
| Simultaneous playback | 18CH(Local Monitor),18Ch (CMS), 4Ch (Wisenet Mobile), 1Ch(Web) | |
| Fisheye Dewarping | WEB / CMS | |
| Mode | Date & Time (Calendar) / Event log list / Text search (POS), Back up, Motion, Smart search (Virtual Line w/ direction, Enter / Exit) * All Search Included Preview Function ARB search | |
| Resolution | 5MP ~ CIF | |
| Playback Control | Fast Forward/Backward (x2,x4,x8,x16,x32,x64, x128, x256) Slow Forward/Backward (x1/2,x1/4,x1/8) ※Move one step up/down | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 2ea(Max 12TB) | |
| Backup | File backup | BU, EXE(Include Player), AVI |
| Function | Max. 18 CH play, Date-time/title display | |
| Network | ||
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Transmission Bandwidth | Max. 100Mbps | |
| Audio | Compression G.711 (N/W Cam G.711, 726) | |
| Audio Communication 2-Way | ||
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Techwin Root CA) | |
| Web viewer | Supported OS Windows 10, Mac OS 11 Big Sur and later | |
| Supported browser Chromeor, Edge , Safari | ||
| Viewer Software | SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS | |
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| PTZ | Control | Via GUI, Webviewer, SSM, Wisenet Viewer, Wisenet Mobile Viewer, System Controller |
| Preset | 300 presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(16ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ARB | Support |
| Easy configuration | Install wizard support | |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI | |
| Interface | ||

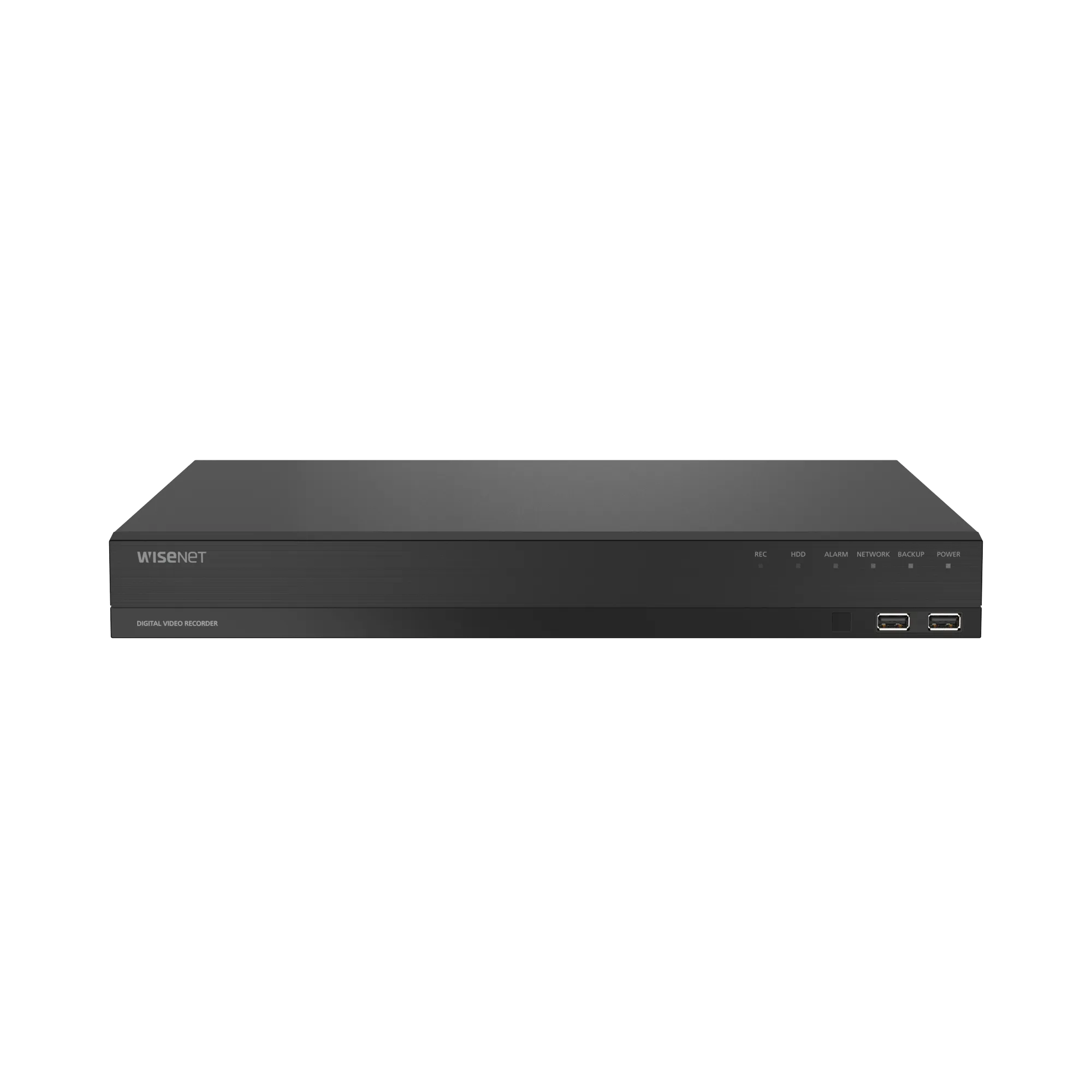

| Front | Indicator | LED(Status indicator) : Power(1), Record(1), Network(1), HDD(1), Backup(1), Alarm(1) |
| HDMI | 1EA |
| VGA | 1EA |
| BNC | 16CH In / 1CH Out(Spot Output) |
| Audio | Out(1EA, RCA, Line) |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Alarm | NoneIn 4EA, Out 1EA - Relay Out1(NO/NC/COM) |
| USB | 3EA(Front/Rear USB2.0) |
| Serial(Protocols) | RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ |
| Power inlet | 1EA DC Input Jack |
| System | |
| Log | Log List Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Certification | UL, CE, FCC, KC |
| Electrical | |
| Power Input | DC12V |
| Power Consumption | Max. 40.8W (6T HDD 2ea) |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 370.0x 44.0 x 320mm(14.57” x 1.73” x 12.6”) |
| Weight | Approx. 2.4Kg (5.3 lb, without HDD) |
