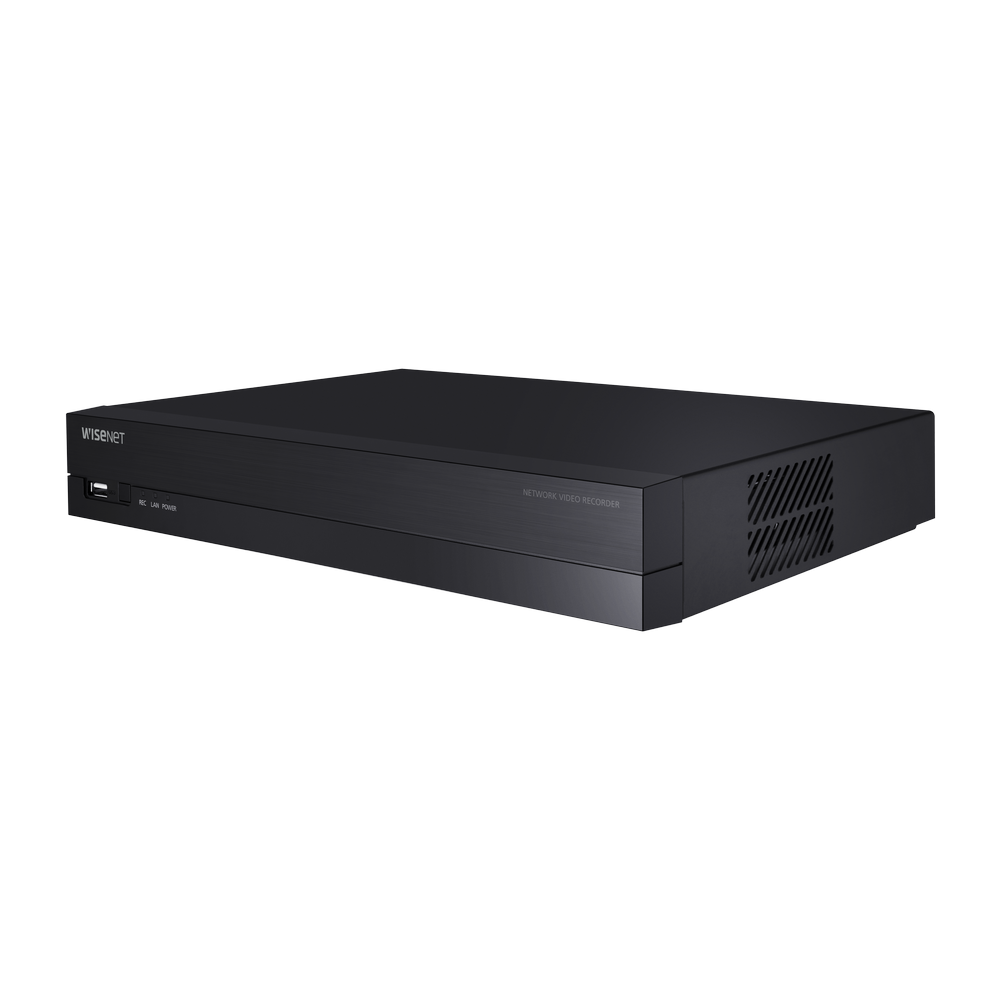

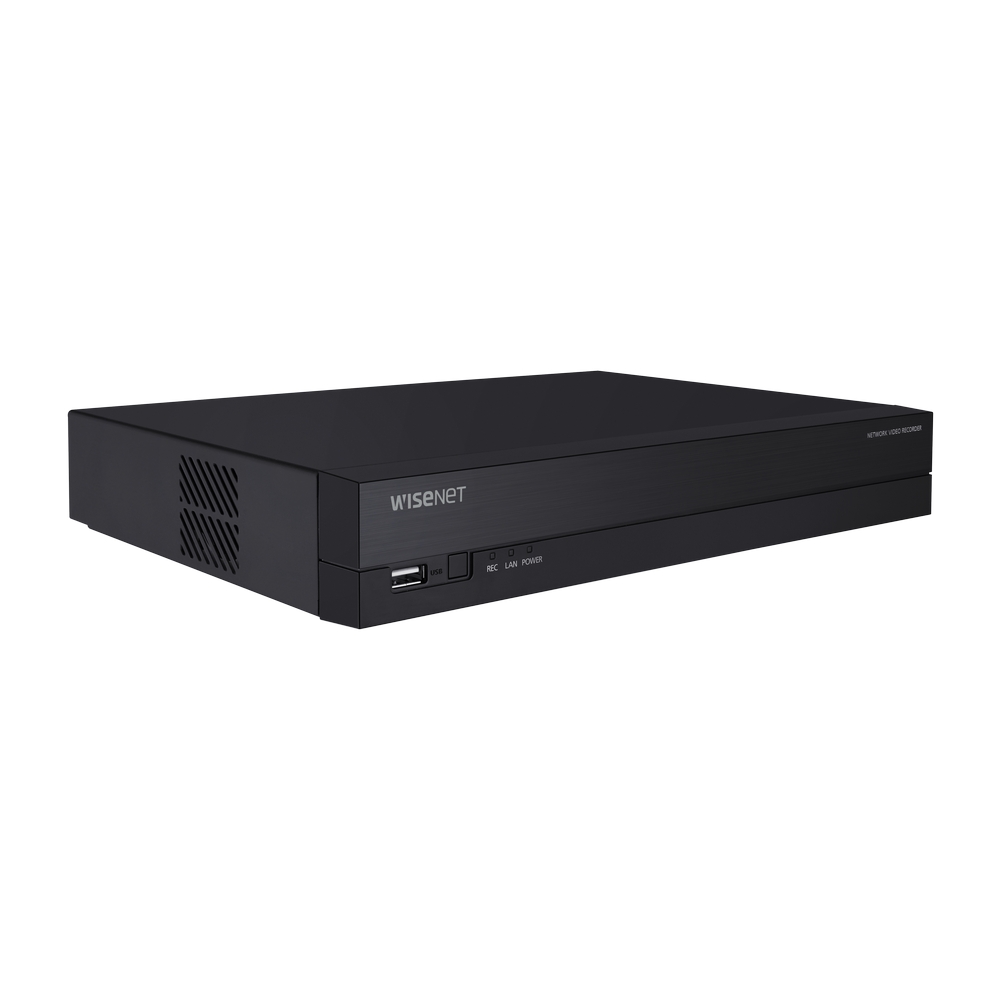

Hanwha - ARN-410S - Wisenet A-Series 4 Channel PoE NVR
Part number:
ARN-410S
Price:
- • Up to 4 channels @ 8MP resolution
- • H.265, H.264, MJPEG codec
- • 40Mbps network camera recording
- • Plug & play with 4 PoE ports
- • 1 HDD (Up to 6TB)
- • HDMI output
- • P2P service (QR code connect) for easy remote access with Wisenet Viewer & Wisenet Mobile
- • Dual track recording, 4K HDMI monitor out
| Display | |
|---|---|
| Network camera > Inputs | Max. 4CH |
| Network camera > Resolution | 8MP ~ CIF |
| Network camera > Protocols | SUNAPI, ONVIF |
| Decoding | |
| Decoding > Local Display | HDMI |
| Decoding > Multi Screen Display | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4 |
| Decoding > Resolution | [Local Monitor] 8M (30fps), 1080p (120fps), 720P (120fps), D1 (120fps) |
| Performance | |
| Operating System > Embedded | Linux |
| Record | |
| Record > Compression | H.265, H.264, MJPEG |
| Record > Recording Bandwidth | Max. 40Mbps |
| Record > Resolution | 8MP ~ CIF |
| Record > Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Record > Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event |
| Record > Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out |
| Search & Play | |
| Search & Play > Playback Bandwidth | Max. 32Mbps |
| Search & Play > User | Max. 4 Users (Local 1, Remote 3) |
| Search & Play > Simultaneous playback | Max. 16CH (Local 4CH, Remote 4CH per user) |
| Search & Play > Mode | Date & Time (Calendar), Event list, Text Search, Smart Search |
| Search & Play > Resolution | CIF ~ 8MP |
| Search & Play > Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Storage > Supported HDD | Up to 6TB |
| Storage > HDD Slot | SATA 1ea (Max. 6TB) |
| Backup | |
| Backup > File backup | BU/Exe (GUI), JPG/AVI (Network) |
| Backup > Function | Multi channel (Up to 4CH) Play, Date-Time/Title display |
| Network & System | |
|---|---|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 40Mbps |
| Audio | |
| Audio > Input/Output | 4 CH (network) |
| Audio > Compression | G.711, G.726, AAC (16/48KHz) |
| Audio > Audio Communication | 2-Way |
| Max Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | IP address filtering, User access Log, 802.1x, Encryption, Device certificate (Hanwha Techwin Root CA), Signed firmware |
| Web viewer | |
| Web viewer > Supported OS | Windows 10, macOS 10.13 |
| Web viewer > Supported browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile, Support CGI (SUNAPI) for integration to 3rd party VMS |
| Functions | |
| Camera Setup > Register | Auto, Manual |
| Camera Setup > Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon), Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | |
| PTZ > Control | Via GUI, Webviewer |
| PTZ > Preset | 300 Presets |
| Smart phone | |
| Smart phone > Support Model | iOS, Android |
| Smart phone > Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Smart phone > Control | Live 4CH (Multi-Profile Support), Playback 4CH |
| Smart phone > Max. Remote Users | Search (3), Live Unicast (10) |
| Redundancy | |
| Redundancy > Failover | N+1 |
| Redundancy > ARB | Support |
| Easy configuration | P2P (QR code) |
| Interface | |

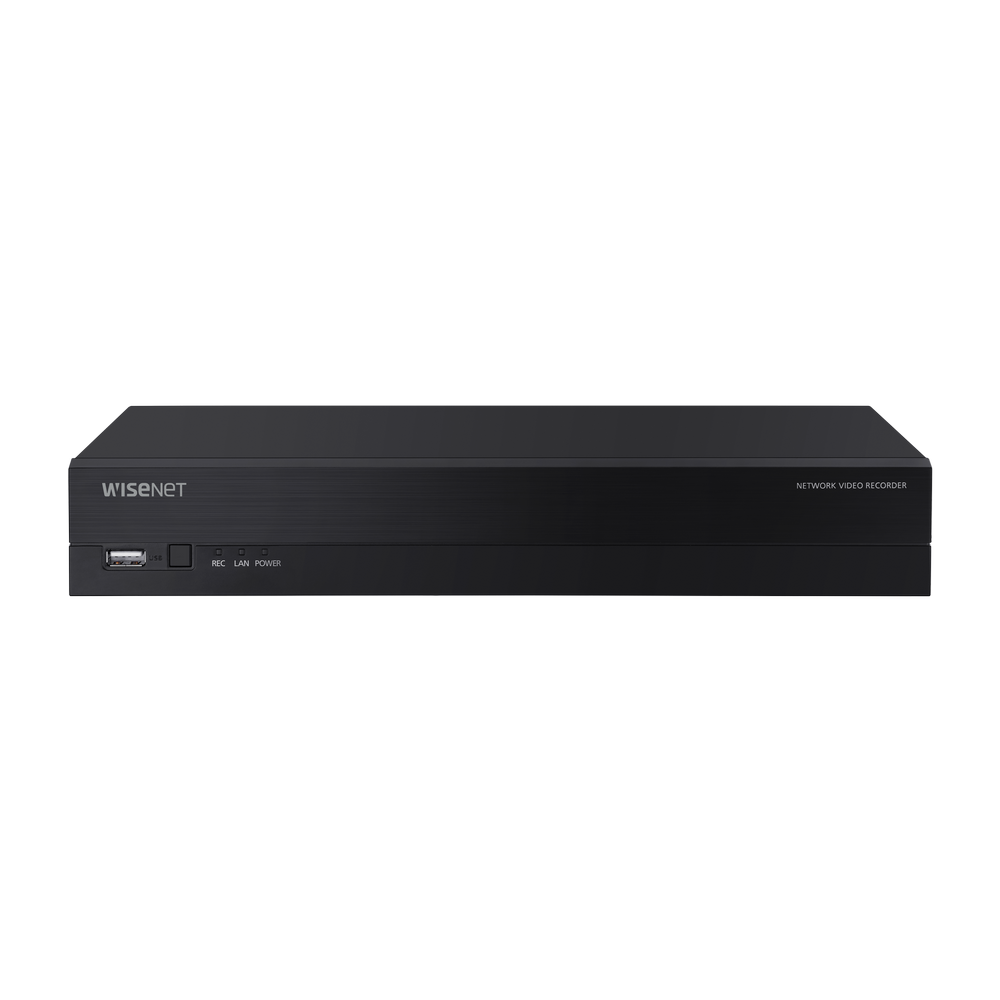

| Front > Indicator | Power, Record, Network |
| Reset | Support |
| HDMI | 1EA 3840x2160 30Hz |

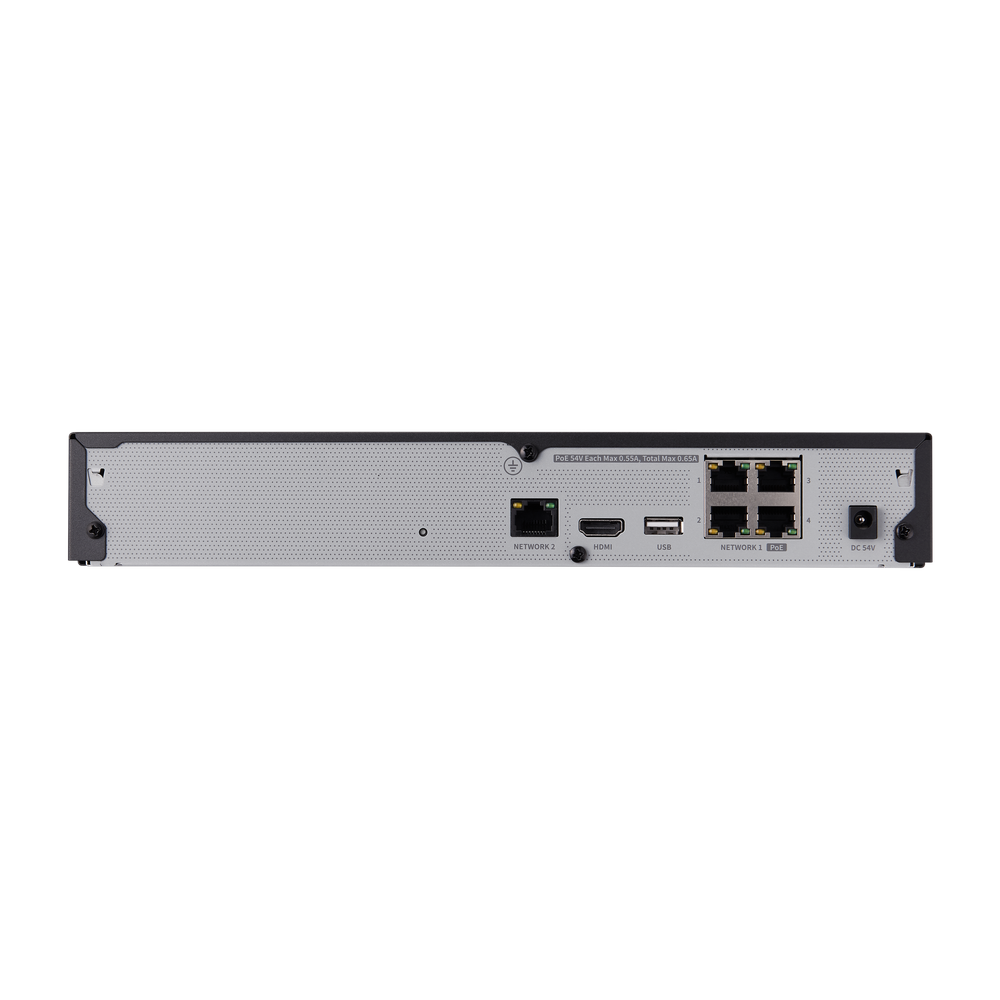

| Ethernet | PoE RJ-45 (LAN, 10/100) 4 ea, RJ-45 1ea (WAN, 10/100) |
| USB | 2EA (Front 1 x USB 2.0, Rear 1 x USB 2.0) |
| Power inlet | DC Adaptor |
| System | |
| Log > Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Web |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 54VDC / 1.20A |
| Power Consumption | Max 52W (1HDD, PoE On) |
| PoE Budget | 35W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | W300.0 x H47 x D208.7mm (1U) |
| Weight | 1.03Kg |
Name
Description
Size
Downloads
File
Datasheet
1.2mb
The Hanwha Vision ARN-410S is a 4-channel PoE NVR supporting up to 8MP IP cameras with H.265/H.264/MJPEG compression and a maximum recording bandwidth of 40Mbps. It features 4 built-in PoE ports for direct camera connection, plus one separate WAN port. The NVR includes HDMI output with 4K display resolution, supports multi-screen layouts up to 4 divisions, and provides 4 network audio inputs with two-way communication capability.
The ARN-410S includes 1 SATA HDD slot supporting up to 6TB, dual USB 2.0 ports, and supports event triggers including alarm input, video loss, camera analytics, and defocus detection with actions such as email, alarm out, PTZ presets, and buzzer. Search and playback features include smart search with up to 4 simultaneous local playback channels. The unit supports N+1 failover redundancy, P2P QR code setup, and operates from 0°C to +40°C. Power input is 54VDC with a maximum consumption of 52W.
