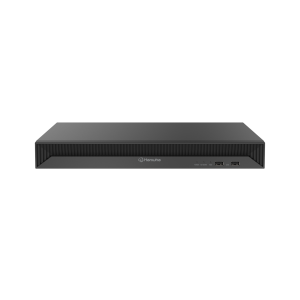

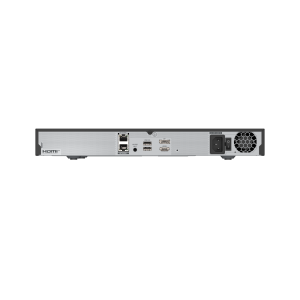

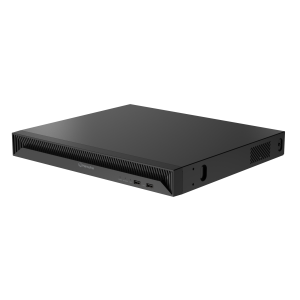

Hanwha - BRB-X1610E-4TB - BLAZE Recording Server (Hardened OS)
• Hardened OS
• Pre-loaded with BLAZE recording licenses
• Secure remote access
• 16 channel capacity
• Up to 32 TB onboard storage
• Supported by BLAZE VMS Desktop Client, Mobile, and Web Client
• Supports Federation via Hanwha Vision Cloud
• Supports Similarity Search
• Supports AI metadata
| System | |
|---|---|
| Video Management Software | BLAZE VMS |
| Licenses | 16 x BLAZE Premium License |
| Available Channels | Up to 16 channels |
| Recording Rate | Up to 150Mbps |
| OS Drive Bays | eMMC 32GB |
| Data Drive Bays | SATA 2ea |
| Data Storage | Up to 32TB |
| Network Interface | 2 x RJ-45 (1Gbps) |
| Processor | 12th Atom Dual core |
| Memory | 8GB DDR4 |
| Operating System | Hardened OS |
| Decoding Video Outputs | 1 x HDMI (4K), 1 x DP (4K) |
| USB Ports | Front: 2 x USB 2.0, Rear: 2 x USB 3.0 |
| Audio Output | 1x Audio output |
| Audio Communication | 2-Way (Audio In: USB Mic) |
| Keyboard & Mouse | Keyboard, Mouse |
| Security | |
| Security Certificate | FIPS 140-3 Level3 |
| Mechanical | |
| Form Factor | Box |
| Color / Material | Black / Metal |
| Dimensions (WxHxD) | 14.57" (370mm) x 2.00" (50.7mm) x 12.60" (320mm) |
| Weight | 5.95lbs (2.70Kg) |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%, 50/60 Hz |
| Power Consumption | 72W (245.66 BTU) |
| Environmental | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 20% to 85% RH (non-condensing) |
| OS Selection | Hardened OS |
The Hanwha Vision BRB-X1610E is a BLAZE Recording Appliance pre-configured with BLAZE VMS on a hardened operating system, including 16 BLAZE Premium licenses supporting up to 16 channels with a recording rate of up to 150Mbps. It features a 12th Gen Atom dual-core processor, 8GB of DDR4 memory, 32GB of eMMC storage for the OS, and 2 SATA data drive bays supporting up to 32TB of storage. The appliance includes dual Gigabit Ethernet ports, HDMI and DisplayPort outputs, audio output, 2-way audio communication, front USB 2.0 ports, rear USB 3.0 ports, and comes with a keyboard and mouse. The BRB-X1610E includes FIPS 140-3 Level 3 security certification. Power input is 100-240VAC at 50/60Hz with a maximum power consumption of 72W. The operating temperature range is 32°F to 104°F (0°C to 40°C) with 20% to 85% non-condensing RH humidity.
