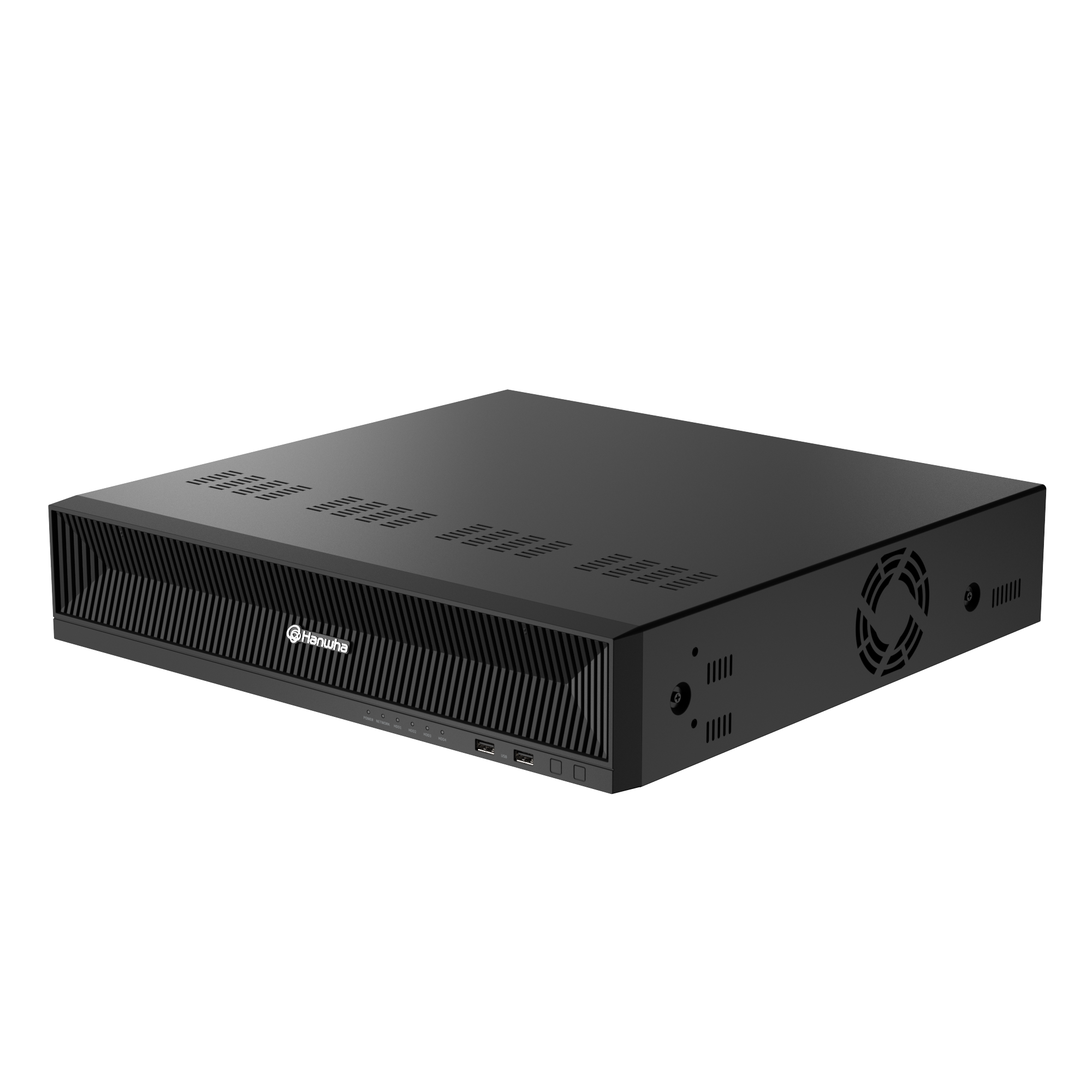

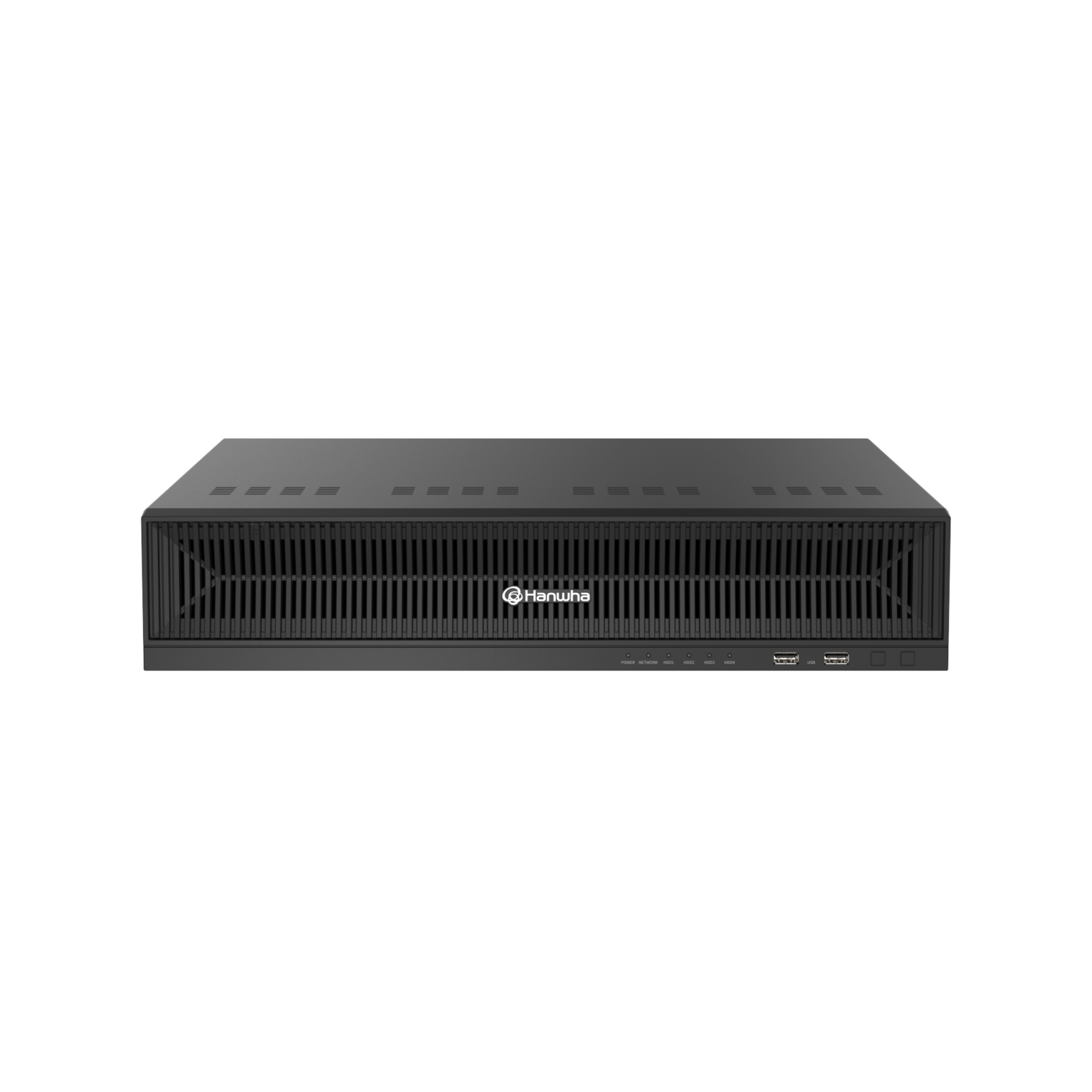

Hanwha - BRB-X3210S1E-8TB - BLAZE Recording Server (Hardened OS)
• Pre-installed BLAZE Client, Server, and 32ch premium licenses
• Up to 250Mbps recording bandwidth
• 4 HDD bays (3.5"), up to 64TB
• Hardened OS
• 2 x RJ-45 (1Gbps)
• 16 x PoE RJ-45(10/100Mbps)
• PoE budget 200W
• FIPS 140-3 level 3
• NDAA compliant
• UL listed
• FCC certified
| System | |
|---|---|
| Video Management Software | BLAZE VMS |
| Licenses | 32 x BLAZE Premium License |
| Available Channels | Up to 32 channels |
| Recording Rate | Up to 250Mbps |
| OS Drive Bays | eMMC 32GB |
| Data Drive Bays | SATA 4ea |
| Data Storage | Up to 64TB |

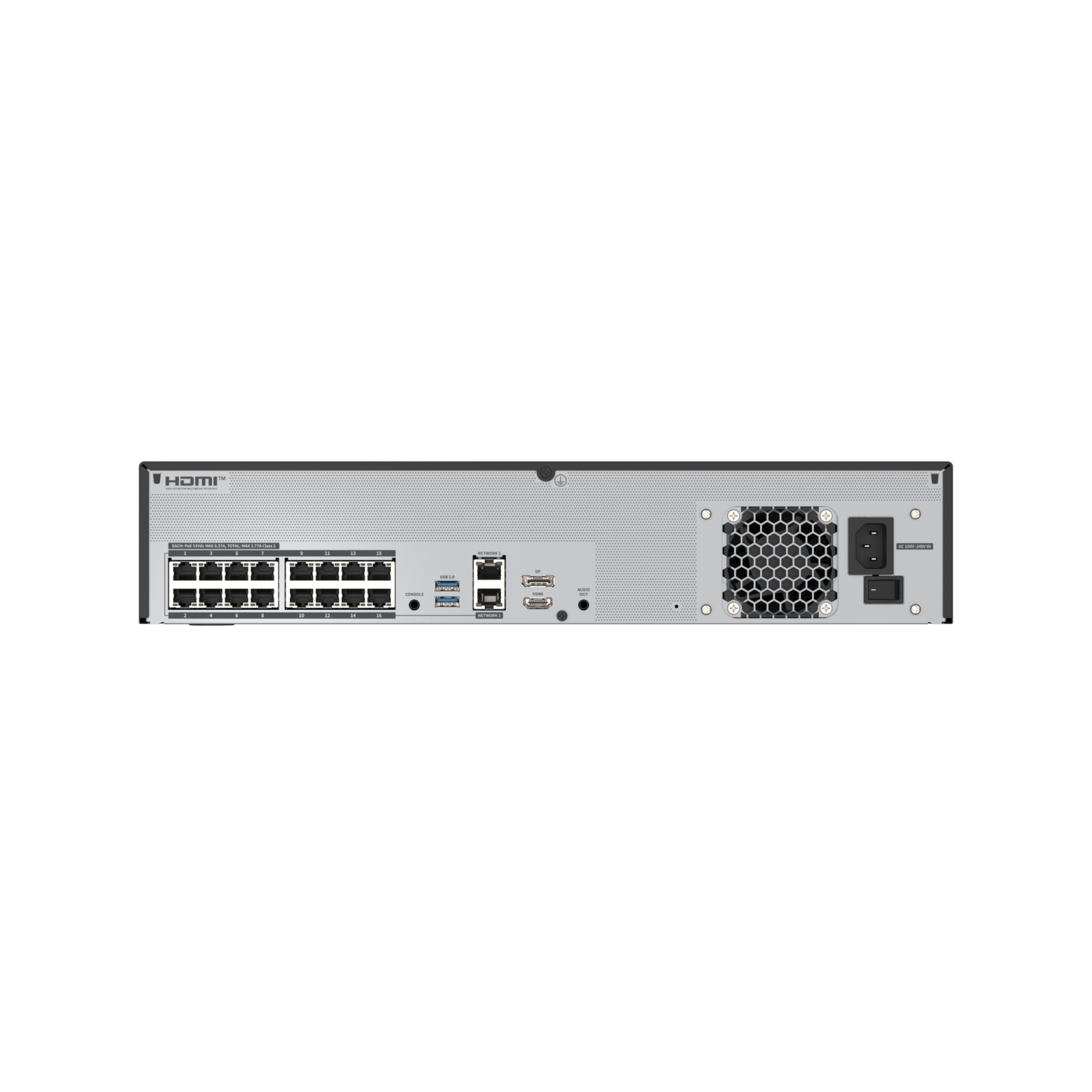

| Network Interface | 2 x RJ-45 (1Gbps), 16 x PoE RJ-45(10/100Mbps) |
| Processor | 12th Atom Quad core |
| Memory | 16GB DDR4 |
| Operating System | Hardened OS |
| Decoding Video Outputs | 1 x HDMI(4K), 1 x DP(4K) |
| USB Ports | Front 2 x USB 2.0 Rear 2 x USB 3.0 |
| Audio Output | 1x Audio output |
| Audio Communication | 2-Way (Audio In: USB Mic) |
| Keyboard & Mouse | Keyboard, Mouse |
| Security | |
| Security Certificate | FIPS 140-3 Level3 |
| Mechanical | |
| Form Factor | Box |
| Color / Material | Black / Metal |
| Dimensions (WxHxD) | 17.32"(440mm) x 3.54"(89.8mm) x 16.87"(428.4mm) |
| Weight | 12.26lbs ( 5.56Kg) |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%, 50/60 Hz |
| Power Consumption | 80W (272.96 BTU, without PoE) |
| PoE Budget | 200W |
| Environmental | |
| Operating Temperature | 32°F to 104°F(0°C to 40°C) |
| Operating Humidity | 20% to 85% RH (non-condensing) |
| Calculation only | |
| OS_selection | Hardened OS |
The Hanwha Vision BRB-X3210S1E is a BLAZE Recording Appliance pre-configured with BLAZE VMS on a hardened operating system, including 32 BLAZE Premium licenses supporting up to 32 channels with a recording rate of up to 250Mbps. It features a 12th Gen Atom quad-core processor, 16GB of DDR4 memory, 32GB of eMMC storage for the OS, and 4 SATA data drive bays supporting up to 64TB of storage. The appliance includes dual Gigabit Ethernet ports and 16 built-in PoE ports with a total PoE budget of 200W for direct camera connection. It also features HDMI and DisplayPort outputs, both supporting 4K resolution, audio output, 2-way audio communication, front USB 2.0 ports, rear USB 3.0 ports, and comes with a keyboard and mouse. The BRB-X3210S1E includes FIPS 140-3 Level 3 security certification. Power input is 100-240VAC at 50/60Hz with a maximum power consumption of 80W. The operating temperature range is 32°F to 104°F (0°C to 40°C) with 20% to 85% non-condensing relative humidity.
