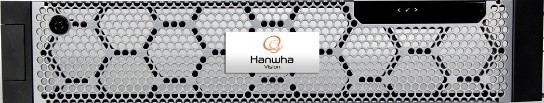

Hanwha - BRR-P2H1WH3-48TB - BLAZE Recording Server (Windows IoT OS)
- • 2U Rack-mount (12 x 3.5" HDD Bays).
- • Windows 11 IoT Enterprise LTSC 2024.
- • Supports up to 1200 Mbps recording bandwidth.
- • Supports up to 240TB of raw storage.
- • Intel Xeon 4410Y.
- • 16GB RAM.
- • Dual 480GB SSDs (RAID 1) dedicated to the OS.
- • Hardware RAID Support: 0, 1, 5, 6, 10 + 8GB NV cache.
| System | |
|---|---|
| Product Name | 2U BLAZE Network Video Recorder |
| Pre-installed Software | BLAZE (pre-installed) |
| Raw Storage Capacity | Up to 240TB raw |
| Usable Capacity (after formatting & RAID 5) | 200TB usable |
| Recording Bandwidth | 1200 Mbps recording B/W |
| HDD Bays (3.5") | 12 HDD Bay (3.5") |
| Processor | Intel Xeon 4410Y |
| RAM | 16GB RAM |
| OS Drives | Dual 480GB SSD OS drives (RAID 1) |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 |
| RAID Support | RAID 0/1/5/6 + 8GB NV cache |
| Video Outputs | mDP output, VGA output |
| Network Interfaces | 4 x 1GbE NICs |
| Management | IPMI |
| Power Supplies | Redundant 800W power supplies |
| Keyboard & Mouse | Keyboard and mouse included |
| Rail Kit | Rail kit included |
| Storage & Performance | |
| Total Raw Capacity | Up to 240TB |
| Usable Capacity (RAID 5 + formatting) | 200TB |
| Recording Bandwidth | 1200 Mbps |
| Number of HDD Bays | 12 bays (3.5") |
| OS Drive Configuration | Dual 480GB SSD (RAID 1) |
| RAID Levels Supported | RAID 0, 1, 5, 6 |
| Cache Acceleration | 8GB NV cache |
| Processor & Memory | |
| CPU | Intel Xeon 4410Y |
| Memory Capacity | 16GB RAM |
| Graphics & Display | |
| Display Outputs | mDP output, VGA output |
| Network & Management | |
| Ethernet Interfaces | 4 x 1GbE NICs |
| Remote Management | IPMI (Intelligent Platform Management Interface) |
| Power & Mechanical | |
| Power Supply Configuration | Redundant 800W power supplies |
| Form Factor | 2U Rackmount |
| Included Accessories | Keyboard, mouse, rail kit |
| Chassis Type | Network Video Recorder (NVR) server chassis |
| Operating System & Software | |
| OS Platform | Windows 11 IoT Enterprise LTSC 2024 |
| VMS Software | BLAZE pre-installed |
| File System / RAID Management | RAID 0/1/5/6 with 8GB NV cache |
The Hanwha Vision BRR-P2H1WH3 is a 2U BLAZE Recording Server pre-configured with BLAZE VMS on a Windows 11 IoT Enterprise LTSC 2024 operating system, supporting up to 240TB raw storage with a recording bandwidth of 1200 Mbps. It features 12 HDD bays (3.5"), an Intel Xeon 4410Y processor, 16GB of RAM, and dual 480GB SSDs for the OS configured in RAID 1. The server supports RAID 0,1,5,6 with 8GB of NV cache, and includes mDP and VGA outputs. Network connectivity includes four 1GbE NICs with IPMI for remote management. Redundant 800W power supplies provide reliability, and the server includes a keyboard, mouse, and rail kit. This high-performance recording server is designed for mid-to-large scale enterprise deployments requiring substantial storage capacity and high bandwidth, running on the Windows 11 IoT Enterprise LTSC platform.
