Hanwha - BRT-X321W1-12TB - BLAZE Recording Server (Windows IoT OS)
Part number:
Price:
- • Micro Form Factor (Desktop/VESA Mountable).
- • Windows 11 IoT Enterprise LTSC 2024.
- • Supports up to 45 Mbps recording bandwidth.
- • Supports 1TB or 2TB raw (via internal M.2 SSD).
- • Processor Intel Core i3 (14th Gen).
- • Memory 8 GB RAM.
- • Redundancy 256 GB SSD dedicated to the OS.
- • Connectivity 2.5 GbE NIC; includes 2 HDMI and 1 DisplayPort output.
- • Included keyboard and mouse.
| System | |
|---|---|
| Product Name | Micro form factor BLAZE Network Video Recorder |
| Pre-installed Software | BLAZE (pre-installed) |
| Raw Storage Capacity | 1TB or 2TB raw |
| Recording Bandwidth | 45 Mbps recording B/W |
| Storage Type | (1) M.2 SSD |
| Processor | (14th Gen) Intel Core i3 |
| RAM | 8GB RAM |
| OS Drive | 256 GB SSD OS Drive |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 |
| Video Outputs | (2) HDMI, (1) DisplayPort output |
| Network Interface | 2.5 GbE NIC |
| Keyboard & Mouse | Keyboard and mouse included |
| Storage & Performance | |
| Available Raw Capacities | 1TB or 2TB |
| Recording Bandwidth | 45 Mbps |
| Storage Configuration | (1) M.2 SSD |
| OS Drive Configuration | 256 GB SSD |
| Processor & Memory | |
| CPU | (14th Gen) Intel Core i3 |
| Memory Capacity | 8GB RAM |
| Graphics & Display | |
| Display Outputs | (2) HDMI, (1) DisplayPort output |
| Network & Management | |
| Ethernet Interface | 2.5 GbE NIC |
| Power & Mechanical | |
| Form Factor | Micro form factor |
| Included Accessories | Keyboard, mouse |
| Chassis Type | Network Video Recorder (NVR) micro tower |
| Operating System & Software | |
| OS Platform | Windows 11 IoT Enterprise LTSC 2024 |
| VMS Software | BLAZE pre-installed |

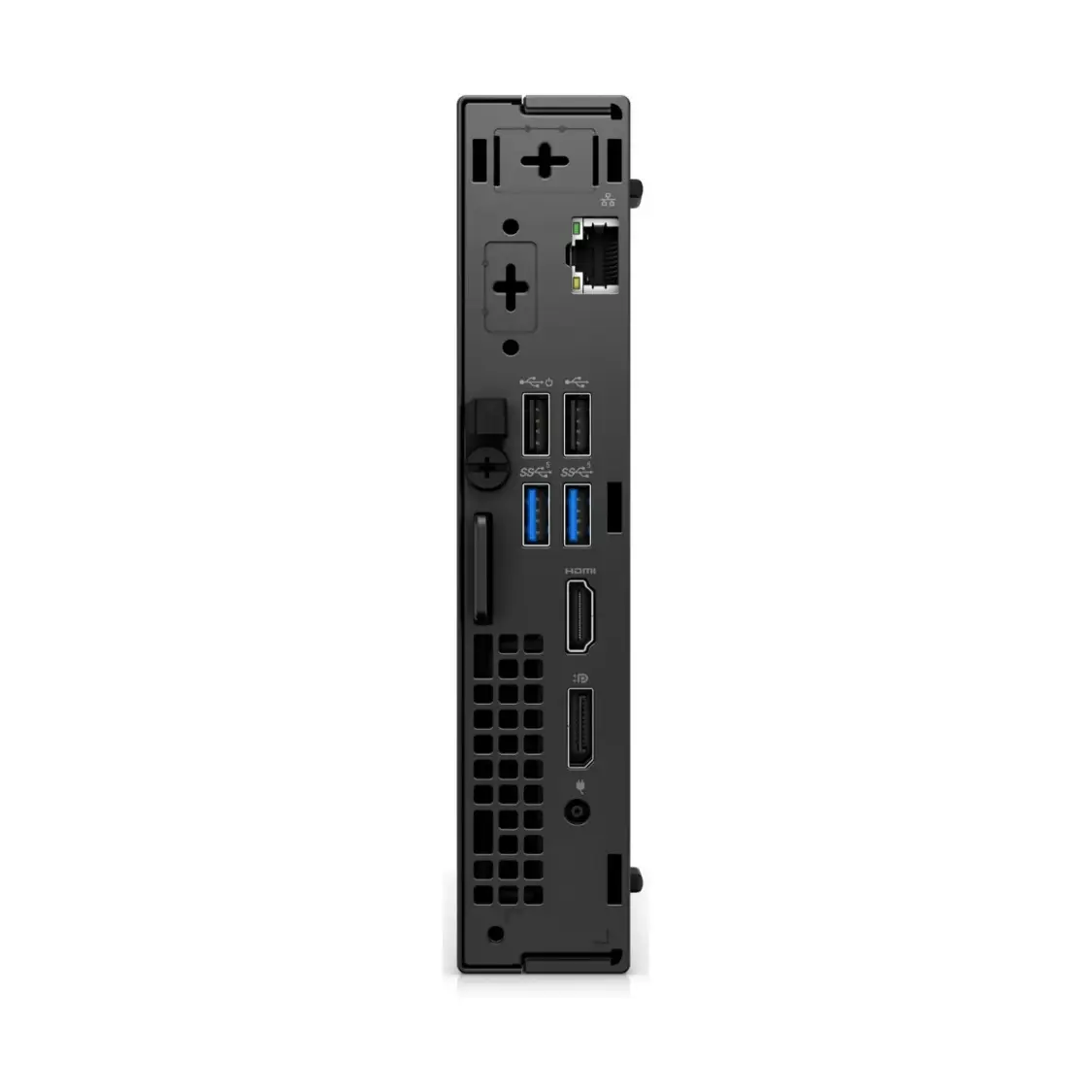

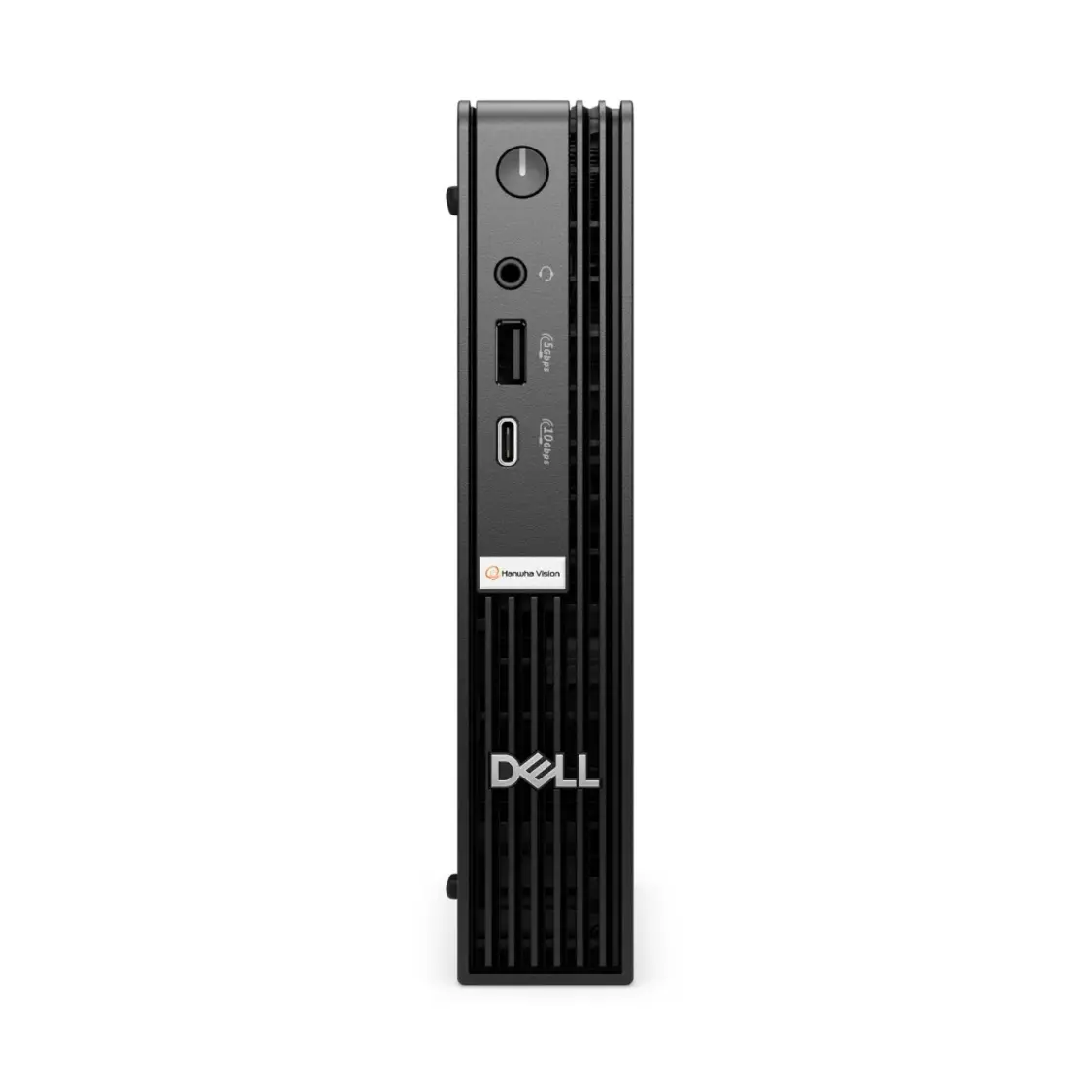

The Hanwha Vision BRT-X161W is a micro form factor BLAZE Network Video Recorder pre-configured with BLAZE VMS on a Windows 11 IoT Enterprise LTSC 2024 operating system, available with 1TB or 2TB of raw storage. It delivers a recording bandwidth of 45 Mbps and features a single M.2 SSD, a 14th-generation Intel Core i3 processor, 8GB of RAM, and a 256GB SSD for the operating system. Network connectivity includes a 2.5 GbE NIC. The system features two HDMI outputs and one DisplayPort output. A keyboard and mouse are included. This ultra-compact micro tower server is designed for small-scale deployments requiring minimal space, such as retail stores, offices, or branch locations with modest recording requirements.
