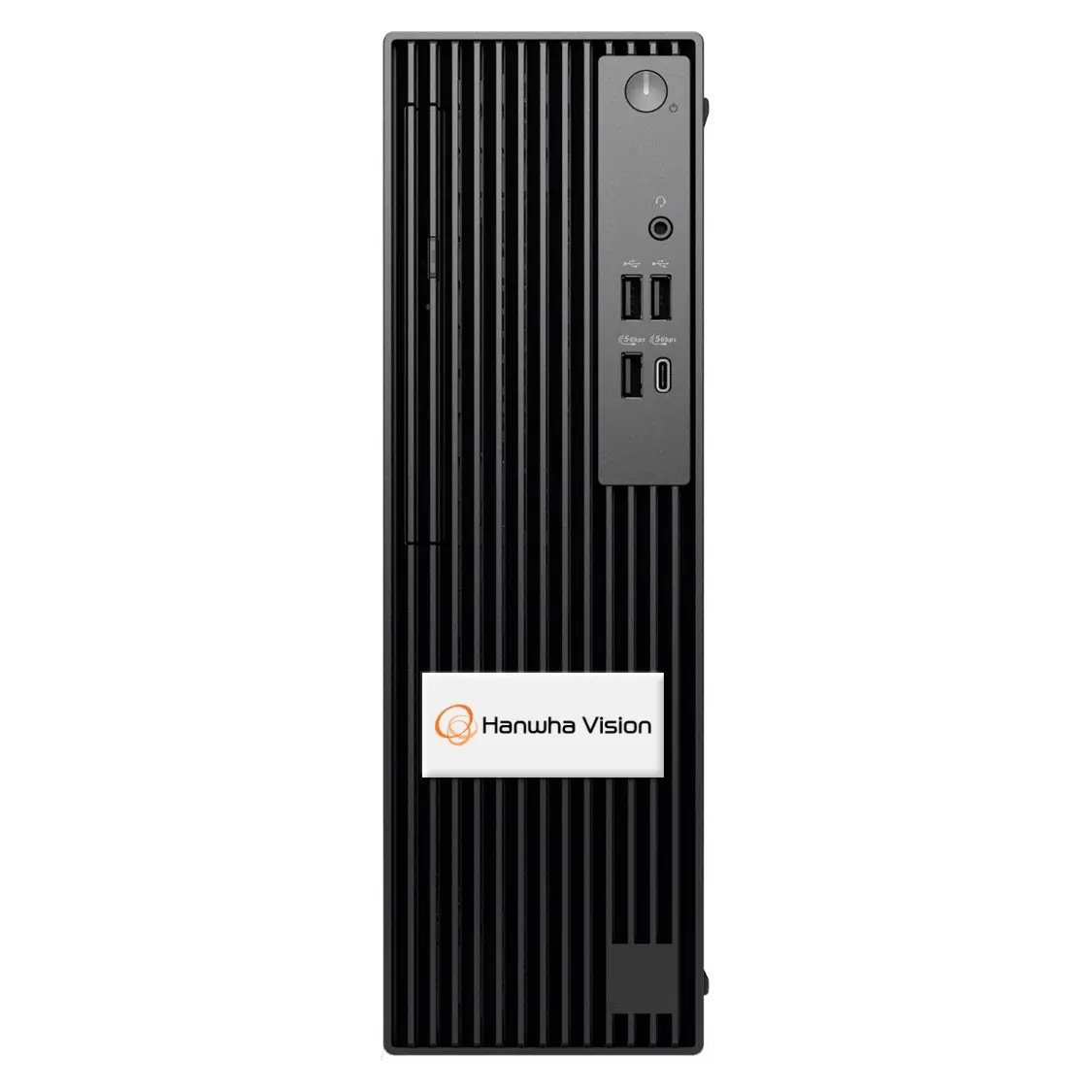

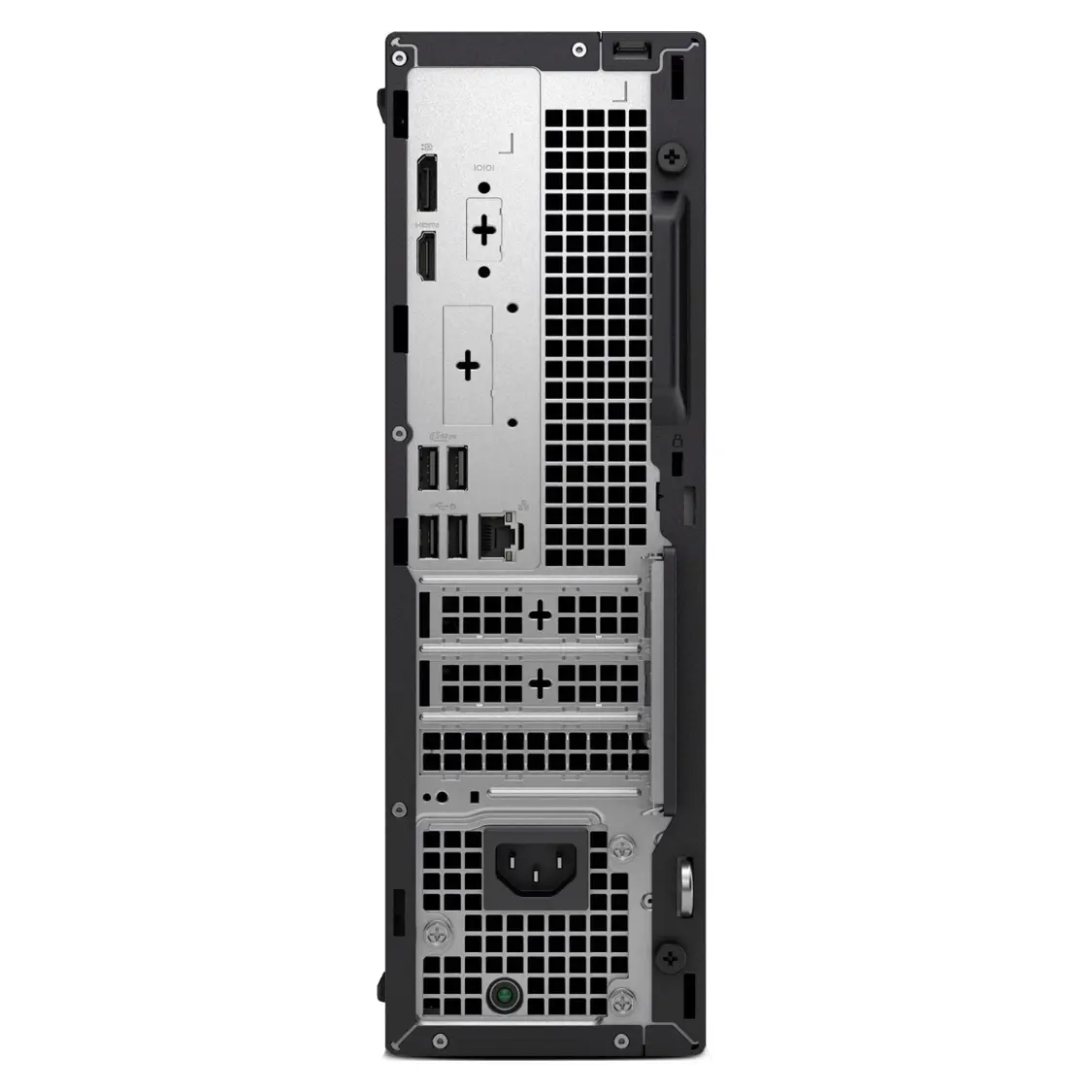

Hanwha - BWT-P321W - BLAZE Workstation (Windows IoT OS)
- • Form Factor: Small Form Factor (SFF).
- • Operating System: Windows 11 IoT Enterprise LTSC 2024 (Hardened for 24/7 security stability).
- • Processor: Intel Core i3 (14th Gen).
- • Memory: 8GB RAM.
- • Storage: 256GB SSD (Dedicated OS/Application drive).
- • Graphics: Nvidia RTX A400 GPU (Ampere Architecture).
- • Includes 4GB GDDR6 dedicated memory.
- • (4) Mini-DisplayPort (mDP) outputs.
- • (2) mDP to HDMI adapters included.
- • Network: Dual NICs (1x 1GbE and 1x 2.5GbE) for physical network separation between camera and corporate traffic.
- • Video Output (Integrated): (2) DisplayPort, (1) HDMI.
- • Included: Keyboard and Mouse.
| System | |
|---|---|
| Video Management Software | BLAZE VMS |
| Licenses | No License |
| OS Drive Bays | SSD 256GB |
| Network Interface | 1 x RJ-45 (1Gbps), 1 x RJ-45 (2.5Gbps) |
| Processor | 14th Intel Core i3 |
| Memory | 8GB DDR5 |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 |
| Decoding Video Outputs | 1 x HDMI, 2 x DP, NVIDIA Quadro A400 4 x mDP, 2x mDP to HDMI adapter |
| USB Ports | Front: 2 x USB 2.0, 1 x USB 3.2 Gen2, 1 x USB 3.2 Gen 2x2 Type C Rear: 2 x USB 2.0, 2 x USB 3.2 Gen1 |
| Audio Output | 1 x 3.5mm Universal Audio |
| Keyboard & Mouse | Keyboard, Mouse |
| Security | |
| Security Certificate | UL, cUL, CB, FCC, 80 Plus Platinum |
| Mechanical | |
| Form Factor | Tower |
| Color / Material | Black / Metal |
| Dimensions (WxHxD) | 3.74" (95 mm) x 11.95" (303.5 mm) x 11.54" (293 mm) |
| Weight | 5.89 lbs (12.99 kg) |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%, 50/60 Hz |
| Power Supply | 360W 80 Plus Platinum |
| Environmental | |
| Operating Temperature | 41°F to 113°F (5°C to 45°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 20% to 85% RH (non-condensing) |
| Calculation only | |
| OS_selection | Windows |
The Hanwha Vision BWT-P321W is a BLAZE Workstation pre-configured with BLAZE VMS on Windows 11 IoT Enterprise LTSC 2024. It features a 14th Gen Intel Core i3 processor, 8GB of DDR5 memory, and a 256GB SSD for the OS drive. The workstation includes dual network interfaces and an NVIDIA Quadro A400 GPU with 4x Mini DisplayPort outputs, plus 1x HDMI and 2x DP outputs. USB connectivity includes front USB 2.0, USB 3.2 Gen2, and USB 3.2 Gen 2x2 Type-C ports, plus rear USB 2.0 and USB 3.2 Gen1 ports. A 3.5mm universal audio output is provided, and the unit comes with a keyboard and mouse. The BWT-P321W is housed in a tower form factor black metal chassis measuring 3.74" x 11.95" x 11.54" and weighing 12.99 lbs. Power input is 100-240VAC at 50/60Hz via a 360W 80 Plus Platinum power supply. The operating temperature range is 41°F to 113°F (5°C to 45°C) with 20% to 85% non-condensing RH. Security certifications include UL, cUL, CB, FCC, and 80 Plus Platinum. This tower workstation is designed for BLAZE VMS deployments requiring dedicated graphics performance and dual network connectivity.
