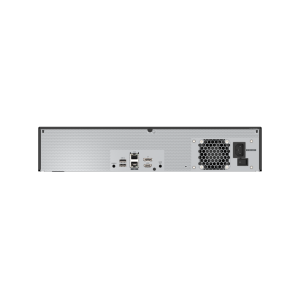

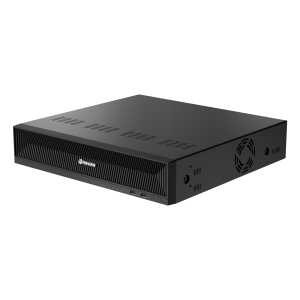

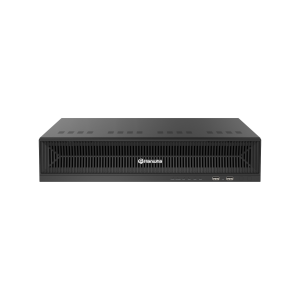

Hanwha - CGR-3210B1-24TB - OnCloud Gateway Appliance, 24TB
• Supports up to 32ch, 250Mbps recording
• Supports up to 4x3.5” HDD, up to 16TB per SATA, Total 64TB HDD capacity
• Two Gigabit network ports(10/100/1000 BASE-T)
• NDAA compliant, FCC Certified
• The Cloud Gateway Recorder is a device that enables local recording and connection to Hanwha OnCloud for third-party cameras or Hanwha IP cameras that do not have a cloud connector app.
| Performance & Storage | |
| Operating System | Embedded Linux |
| Recording Bandwidth | Max. 250Mbps |
| Storage Supported HDD | Up to 16TB |
| HDD Slot | SATA 4ea (Max. 64TB) |
| Interface | |
| Front Indicator | Power, Network, HDD1, HDD2, HDD3, HDD4 |
| HDMI | 1EA (Reserved) |
| DP | 1EA (Reserved) |
| Audio | Audio output (Reserved) |
| Ethernet | RJ-45 2ea (10/100/1000 BASE-T) |
| USB | Front USB 2.0 (2), Rear USB 3.0 (2) |
| Environmental | |
| CPU | Quad core |
| RAM | DDR4 16GB |
| OS HDD | eMMC 32GB |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz |
| Power Consumption | 80W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 440 x 90 x 430 mm (17.3 x 3.5 x 16.9") |
| Weight | 5.5Kg (12.2lb) |
The Hanwha Vision CGR-3210B1 is an OnCloud gateway appliance powered by an embedded Linux operating system, featuring a quad-core CPU, 16GB of DDR4 RAM, and 32GB of eMMC flash storage. It delivers a maximum recording bandwidth of 250Mbps and supports up to 4 SATA HDD slots with a total storage capacity of 64TB. The appliance includes dual Gigabit Ethernet ports, front USB 2.0 ports, and rear USB 3.0 ports. It also features reserved HDMI and DisplayPort outputs, as well as a reserved audio output. The CGR-3210B1 operates from 0°C to +40°C with 20% to 85% RH humidity. Power input is 100-240VAC at 50/60Hz with a maximum power consumption of 80W. Front panel indicators include Power, Network, and four HDD status LEDs. This gateway appliance is designed for cloud-based video surveillance deployments requiring high bandwidth and large storage capacity.
