Hanwha - EN-BR325-0 - Wisenet Sky Cmvr 325 With 2TB (Compact And Ruggedized Form Factor With 4 POE Ports)
Hanwha - EN-BR325-0 - Wisenet Sky Cmvr 325 With 2TB (Compact And Ruggedized Form Factor With 4 POE Ports)
Hanwha - EN-BR325-0 - Wisenet Sky Cmvr 325 With 2TB (Compact And Ruggedized Form Factor With 4 POE Ports)
Hanwha - EN-BR325-0 - Wisenet Sky Cmvr 325 With 2TB (Compact And Ruggedized Form Factor With 4 POE Ports) Hanwha - EN-BR325-0 - Wisenet Sky Cmvr 325 With 2TB (Compact And Ruggedized Form Factor With 4 POE Ports)

Hanwha - EN-BR325-0 - Wisenet Sky Cmvr 325 With 2TB (Compact And Ruggedized Form Factor With 4 POE Ports)

Part number:
EN-BR325-0
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

Wisenet SKY CMVR 325 with 2TB (Compact and Ruggedized Form Factor with 4 PoE Ports)



Features:

  • Supports up to 12 @ 1MP cameras ~ 8 @ 4MP cameras*
  • Supports up to 5 cloud analytics, with supported license
  • Intelligent Bandwidth Management with local recording up to 10 days (12 cameras @ 1MP)
  • Dual gigabit network ports
  • HDMI & DisplayPort video outputs for local display
  • Compact form factor for wall or shelf mounting
  • Fully cloud managed
  • Supports motion or continuous recording

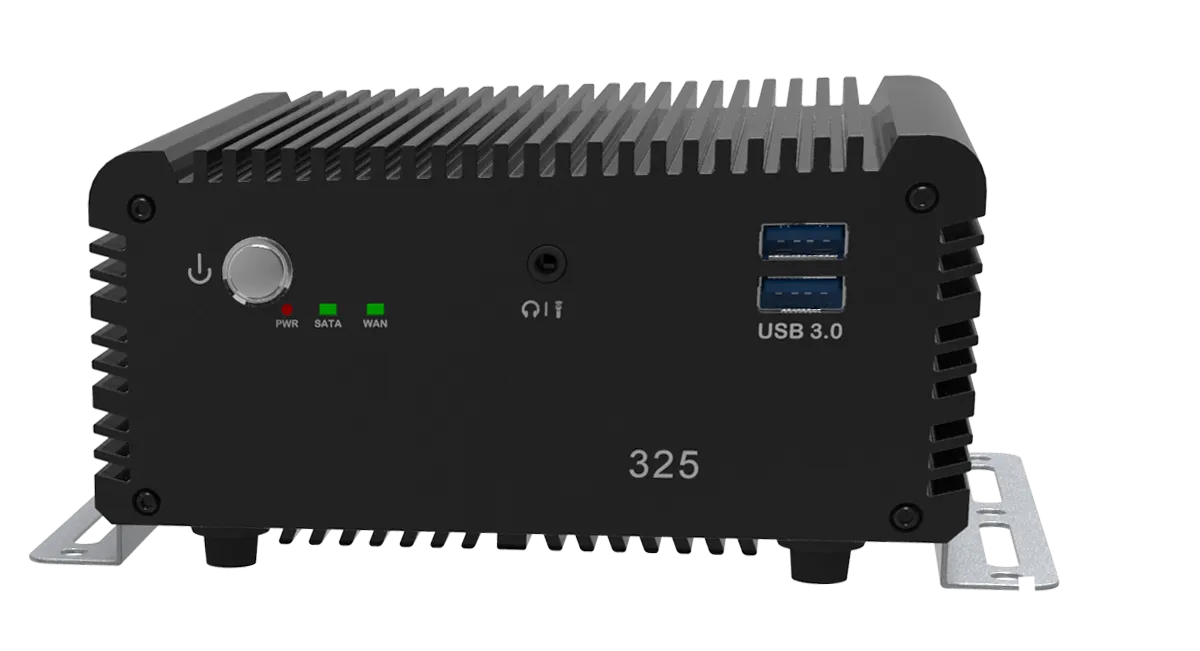

  • Front panel indicator lights
  • Supports Wisenet and ONVIF conformant IP cameras
  • Complete encryption of video in transit and at rest
SYSTEM
Maximum Cameras @ 1MP12 / 12
Maximum Cameras @ 4MP8 / 8
Maximum Cloud Analytics5
Hard Disk Drive2TB / 2TB
2TB 10 days for 12 cameras @ 1MP

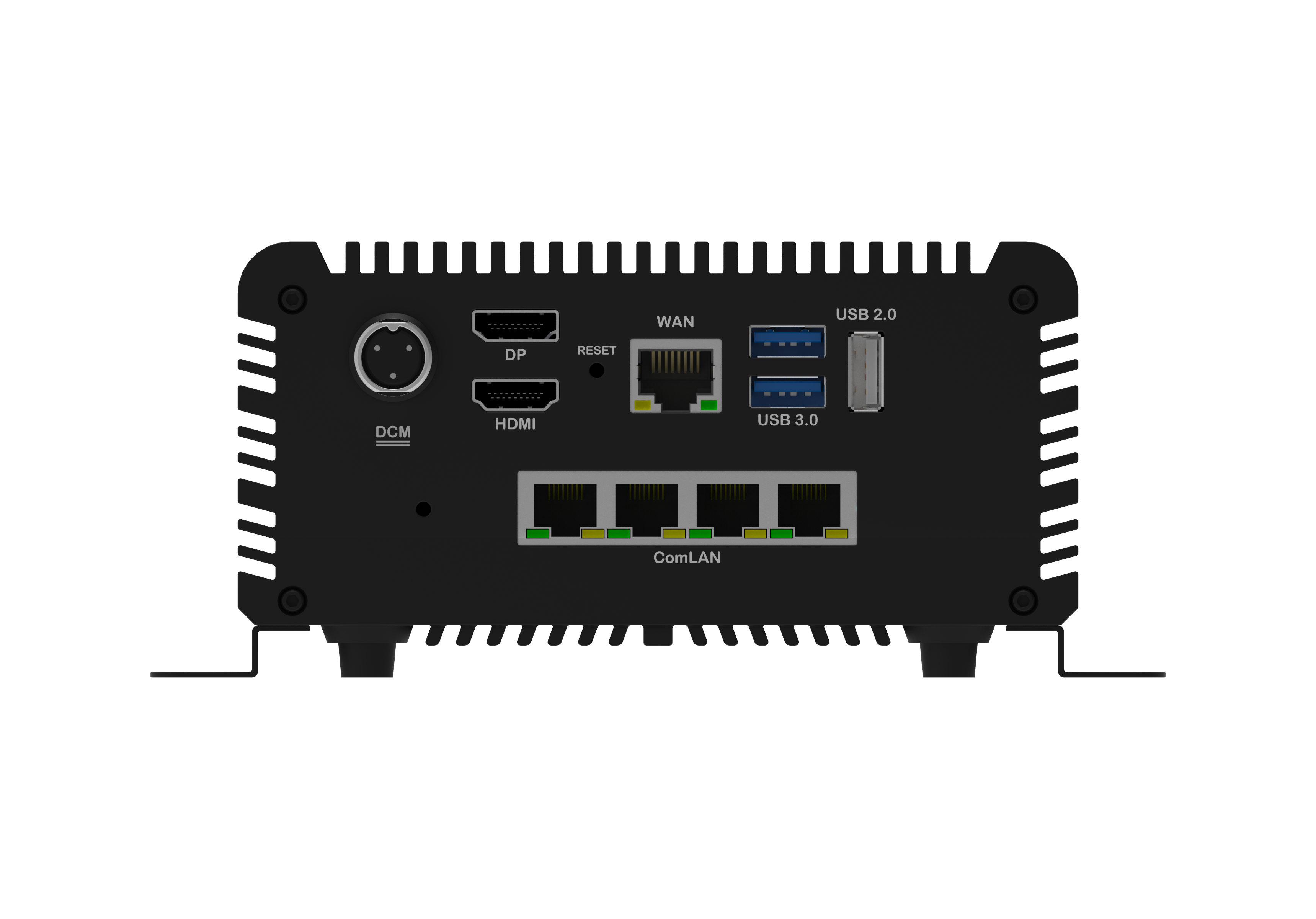

Network portsDual gigabit ethernet RJ-45 / Single gigabit ethernet
PoE Ports0 / 4 PoE ports of IEEE802.3af class 3 (325 only)
Video output1x HDMI, 1x DisplayPort
USB ports2x USB 3.0
Operating SystemEmbedded Linux
Included accessoriesWall mount, power supply
Ordering SKUEN-BR324-0 / EN-BR325-0
MECHANICAL / ELECTRICAL / ENVIRONMENTAL
MechanicalForm FactorCompact wall or shelf mount
Color / Material324: Black / Plastic, 325 Black / Metal
Dimensions5.00" x 5.01" x 1.75" (125mm x 127mm x 47mm) 324
5.00" x 6.77" x 2.95" (127mm x 172mm x 75mm) 325
Weight1.4lb (0.64kg) 324 / 4.24lb (1.92kg) 325
ElectricalPower SupplyIncluded, 20 W / 22 W
Power Input100 ~ 240V AC
EnvironmentalOperating Temperature32°F to 95°F (0°C to 35°C)
Operating Humidity0% to 70% RH, non-condensing
CertificationFCC, UL, PSE, CE, CCC(S&E), REACH, RoHS, C-Tick, NDAA
Name
Description
Size
Downloads
File
Wisenet SKY Quick Start Guide
1.5mb
File
Wisenet SKY A&E Specifications
0.8mb
File
Wisenet SKY CMVR Catalog
0.8mb
File
Wisenet SKY Brochure
1.8mb
File
Hanwha Techwin America - NDAA Compliant Product List 5-2022
0.5mb
