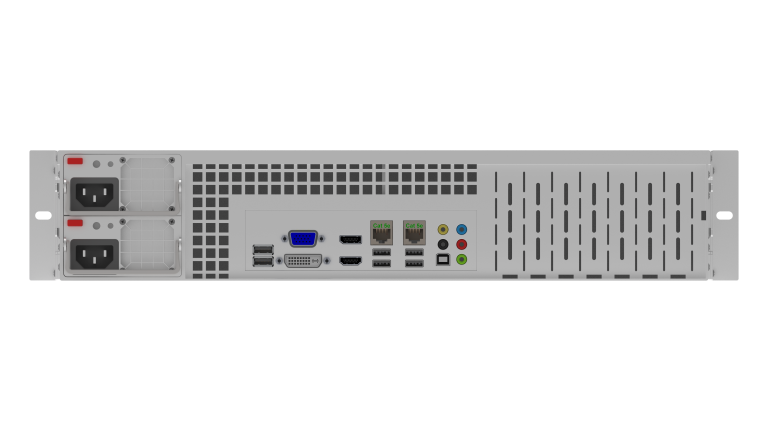

Hanwha - EN-BR820-0 - WiseNet SKY CMVR 820 with 72TB Raid 6 (Enterprise Rack Form Factor)
Part number:
EN-BR820-0
Price:
Wisenet SKY CMVR 820 with 120TB Raid 6 (Enterprise Rack Form Factor)
Features:
- Supports up to 150 @ 1MP cameras ~ 120 @ 4MP cameras*
- Supports up to 40 cloud analytics, with supported license
- Intelligent Bandwidth Management with local recording up to 40 days
- RAID5/6 hard disk redundancy (*level depends on model)
- Dual gigabit network ports
- HDMI & DisplayPort video outputs for local display
- 1U/2U Rack mount
- Fully cloud managed
- Supports motion or continuous recording
- Front panel indicator lights
- Supports Wisenet and ONVIF conformant IP cameras
- Complete encryption of video in transit and at rest
| SYSTEM | ||
| Maximum Cameras 1MP Maximum | 50 / 100 / 150 | |
| Cameras 4MP Maximum Cloud | 40 / 80 / 120 | |
| Analytics | 20 / 30 / 40 | |
| Raw Hard Disk Drive / Storage @ 1MP Usable RAID Storage | 40TB RAID5 (40 days) / 64TB RAID5 (30 days) / 72TB RAID6 (40 days) 30TB / 48TB / 66TB | |
| Network ports | Dual gigabit ethernet RJ-45 | |
| Video output | 1x VGA, 1x HDMI, 1x DisplayPort | |
| Indicator Lights | Power, disk activity, warning | |
| USB ports | 2x USB 3.0 | |
| Operating System | Embedded Linux | |
| Included accessories | Power cord, rack mount brackets | |
| Rack Mount Brackets | Included | |
| Ordering SKU | EN-BR520-0 / EN-BR620-0 / EN-BR820-0 | |
| MECHANICAL / ELECTRICAL / ENVIRONMENTAL | ||
| Mechanical | Form Factor | Rack mount or shelf/tabletop mount |
| Color / Material | Black & Silver / Metal | |
| Dimensions | 17.20 x 19.85 x 1.70 in (437 x 503 x 43mm) 1U CMVR 520/620 17.20 x 25.50 x 3.50 in (437 x 647 x 89mm) 2U CMVR 820 | |
| Weight | 520/620: 27lb (12.25kg) / 820: 51.9lb (23.54kg) | |
| Electrical | Power Supply | Internal, 160 W / 210 W / 280 W |
| Power Input | 100 ~ 240V AC | |
| Environmental | Operating Temperature | 32°F to 95°F (0°C to 35°C) |
| Operating Humidity | 0% to 70% RH, non-condensing | |
| Certification | FCC, UL, PSE, CE, CCC(S&E), REACH, RoHS, C-Tick, NDAA | |
