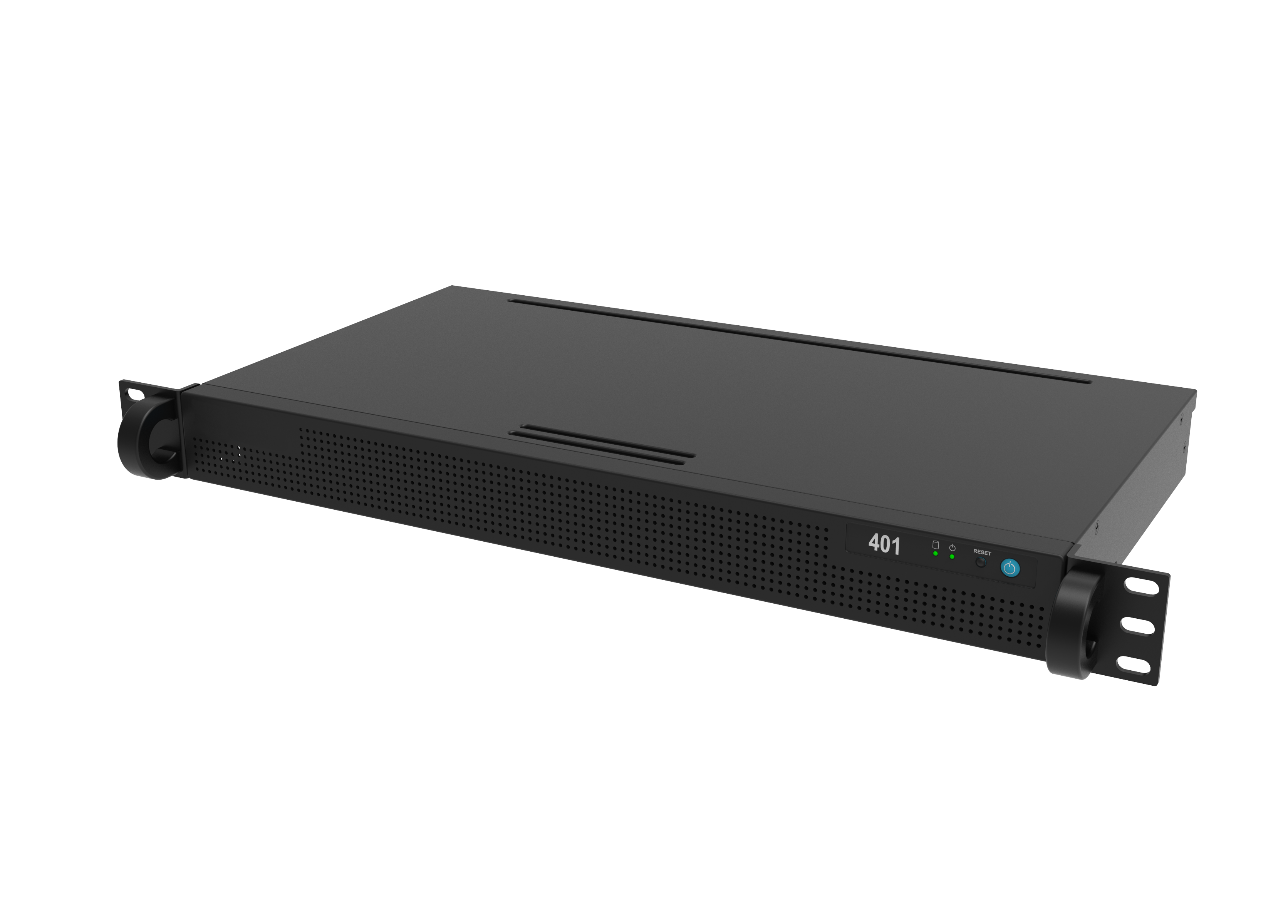

Hanwha - EN-SU401-0 - WiseNet SKY Location Setup Fee Bridge 401 (Rack Form Factor)
Hanwha - EN-SU401-0 - WiseNet SKY Location Setup Fee Bridge 401 (Rack Form Factor)
Hanwha - EN-SU401-0 - WiseNet SKY Location Setup Fee Bridge 401 (Rack Form Factor)
Hanwha - EN-SU401-0 - WiseNet SKY Location Setup Fee Bridge 401 (Rack Form Factor) Hanwha - EN-SU401-0 - WiseNet SKY Location Setup Fee Bridge 401 (Rack Form Factor)

Hanwha - EN-SU401-0 - WiseNet SKY Location Setup Fee Bridge 401 (Rack Form Factor)

Part number:
EN-SU401-0
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

Wisenet SKY Location Setup Fee Bridge 401 (Rack Form Factor)



Features:

  • Supports up to 50 @ 1MP cameras ~ 35 @ 4MP cameras*
  • Supports up to 10 cloud analytics, with supported license
  • Intelligent Bandwidth Management with local buffering records up to 2 days
  • Dual gigabit network ports
  • HDMI & DisplayPort video outputs for local display
  • 1U Rack mount
  • Fully cloud managed
  • Supports motion or continuous recording
  • Front panel indicator lights
  • Supports Wisenet and ONVIF conformant IP cameras
  • Complete encryption of video in transit and at rest
SYSTEM
Maximum Cameras @ 1MP15 / 30 / 50
Maximum Cameras @ 4MP12 / 25 / 35
Maximum Cloud Analytics5 / 10 / 10
Hard Disk Drive Network ports1TB, 800Gb usable for video storage, spinning hard disk
Video outputDual gigabit ethernet RJ-45
 1x VGA, 1x DVI / 1x VGA, 1x HDMI, 1x DisplayPort (401 / 501)
Indicator LightsPower, Disk activity
USB ports2x USB 3.0
Operating SystemEmbedded Linux
Included accessoriesPower cord, rack mount brackets
Rack Mount BracketsIncluded
Ordering SKUEN-SU301-0 / EN-SU401-0 / EN-SU501-0
MECHANICAL / ELECTRICAL / ENVIRONMENTAL
MechanicalForm FactorRack mount or shelf / tabletop mount
Color / MaterialBlack / Metal
Dimensions1U 16.81" x 9.88" x 1.75" (427mm x 251mm x 45mm)
Weight7.64lb (3.47kg) / 8.62lb (3.91kg) / 8.6lb (3.9kg)
ElectricalPower SupplyInternal, 65 W / 50 W / 120 W
Power Input100 ~ 240V AC
EnvironmentalOperating Temperature32°F to 95°F (0°C to 35°C)
Operating Humidity0% to 70% RH, non-condensing
CertificationFCC, UL, PSE, CE, CCC(S&E), REACH, RoHS, C-Tick, NDAA
Name
Description
Size
Downloads
File
Wisenet SKY Rack Bridge Specifications
1.3mb
File
Wisenet SKY Quick Start Guide
1.5mb
File
Wisenet SKY A&E Specifications
0.8mb
File
Wisenet SKY Brochure
1.8mb
File
Wisenet SKY Bridge Catalog
0.7mb
File
Hanwha Techwin America - NDAA Compliant Product List 5-2022
0.5mb
