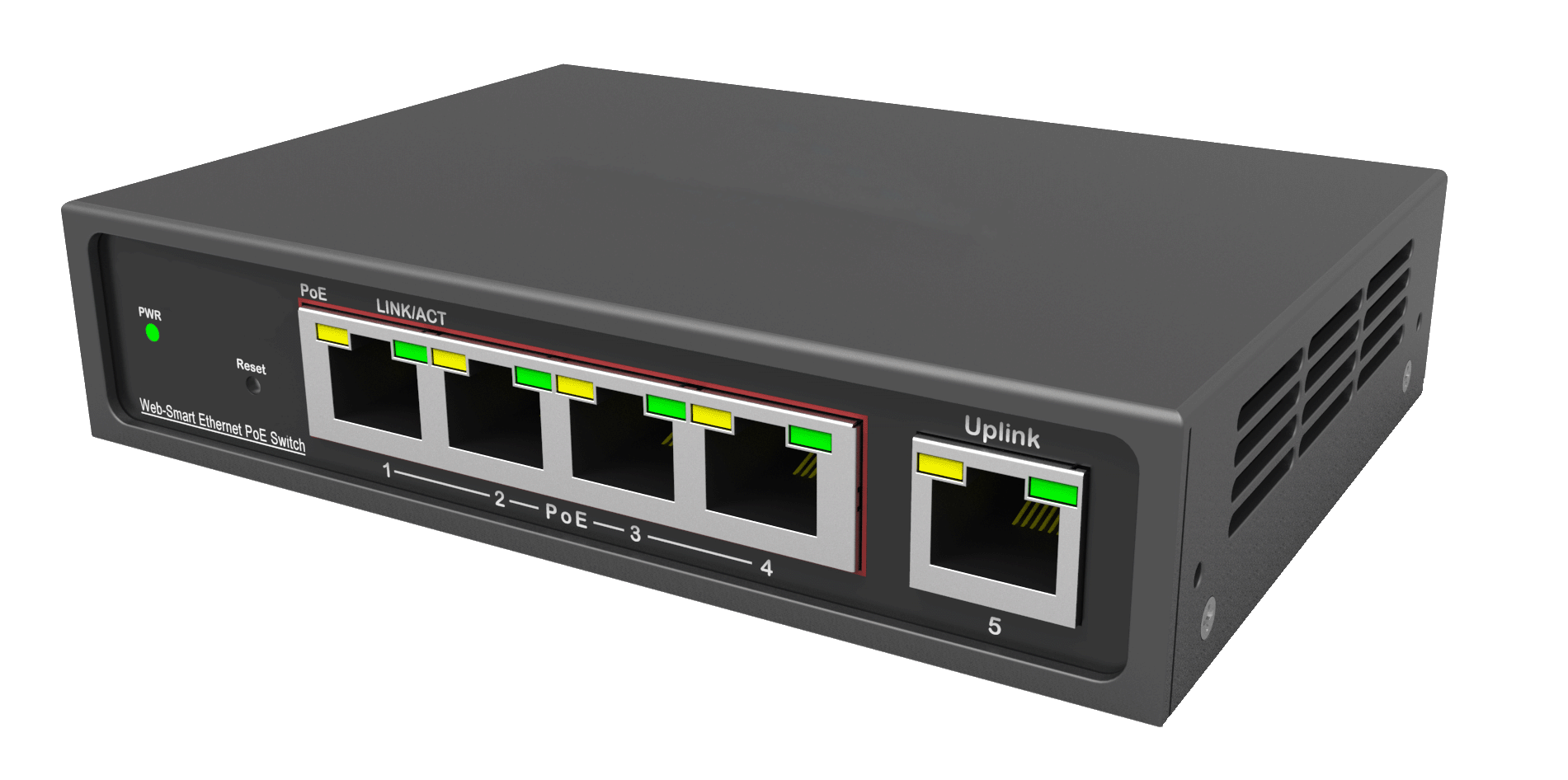

Hanwha - EN-SW05m-001 - WiseNet SKY Switch SW05m (4-Port Managed PoE+, with 100M Uplink)
Part number:
EN-SW05m-001
Price:
Wisenet SKY Switch SW05m (4 Port Managed POE+, with 100M Uplink)
Features:
- Reports the status of each port
- Configured to use either DHCP or a static IP address
- Power can be turned on and off for each port
- Reports for network traffic information for each port
- Measures current PoE power draw for each PoE port
- Enables web management on a port by port basis
| MODEL | EN-SW05m-001 |
| Total Number of Ports | 5 ports (4 PoE, 1 Uplink) |
| PoE Ports | 4 PoE |
| Uplink Ports | 1 Uplink |
| Power Supply | External Power Supply |
| Voltage Range Maximum | AC100-240V |
| PoE Power Budget | 60W |
| Speed | 10/100Mbps |
| Dimension (L x W x H) | 119 x 85 x 28 mm 4.7 x 3.3 x 1.1 in |
| Switching Capacity | 1G |
| MAC Address | 2K MAC address table |
| Temperature Range | -10°C to 55°C / 14F to 131°F |
| Storage Temperature | -40 to 70°C / -40 to 158°F |
| PoE Specifications | IEEE802.3af & 802.3at |
| Rack Mountable | No |
| Weight | 1.35lb (0.61kg) |
