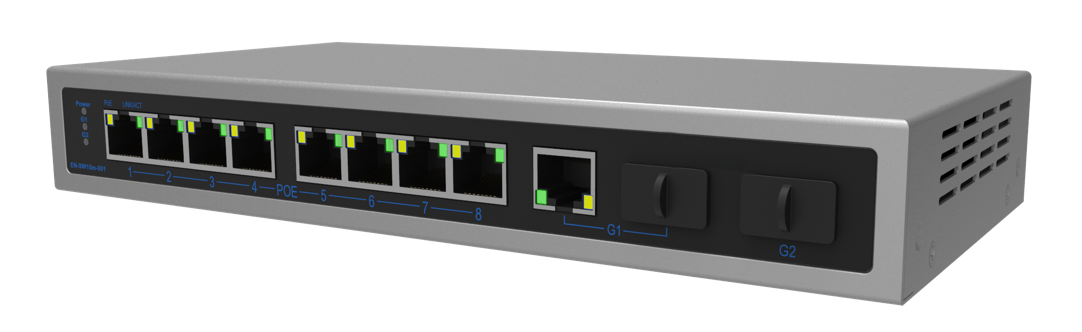

Hanwha - EN-SW10m-001 - WiseNet SKY Switch SW10m (8-Port Managed PoE+, with 2xGig Uplink)
Part number:
EN-SW10m-001
Price:
Wisenet SKY Switch SW10m (8 Port Managed POE+, with 2xGig Uplink)
Features:
- Reports the status of each port
- Configured to use either DHCP or a static IP address
- Power can be turned on and off for each port
- Reports for network traffic information for each port
- Measures current PoE power draw for each PoE port
- Enables web management on a port by port basis
| MODEL | EN-SW10m-001 |
| Total Number of Ports | 10 ports (8 PoE, 2 Uplink) |
| PoE Ports | 8 PoE |
| Uplink Ports | 2 Uplink +1 Gig Combo +1 Gig SFP Uplink |
| Power Supply | External Power Supply |
| Voltage Range Maximum | AC100-240V |
| PoE Power Budget | 125W |
| Speed | 10/100Mbps |
| Dimension (L x W x H) | 218 x 107 x 29 mm 8.6 x 4.2 x 1.1 in |
| Switching Capacity | 5.6G |
| MAC Address | 4K MAC address table |
| Temperature Range | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -40°C to 70°C / -40°F to 158°F |
| PoE Specifications | IEEE802.3af & 802.3at |
| Rack Mountable | No |
| Weight | 2.63lb (1.91kg) |
Name
Description
Size
Downloads
File
Wisenet SKY Managed Switch Specifications
1.2mb
File
Wisenet SKY A&E Specifications
0.8mb
File
Wisenet SKY Brochure
1.8mb
File
Hanwha Techwin America - NDAA Compliant Product List 5-2022
0.5mb
