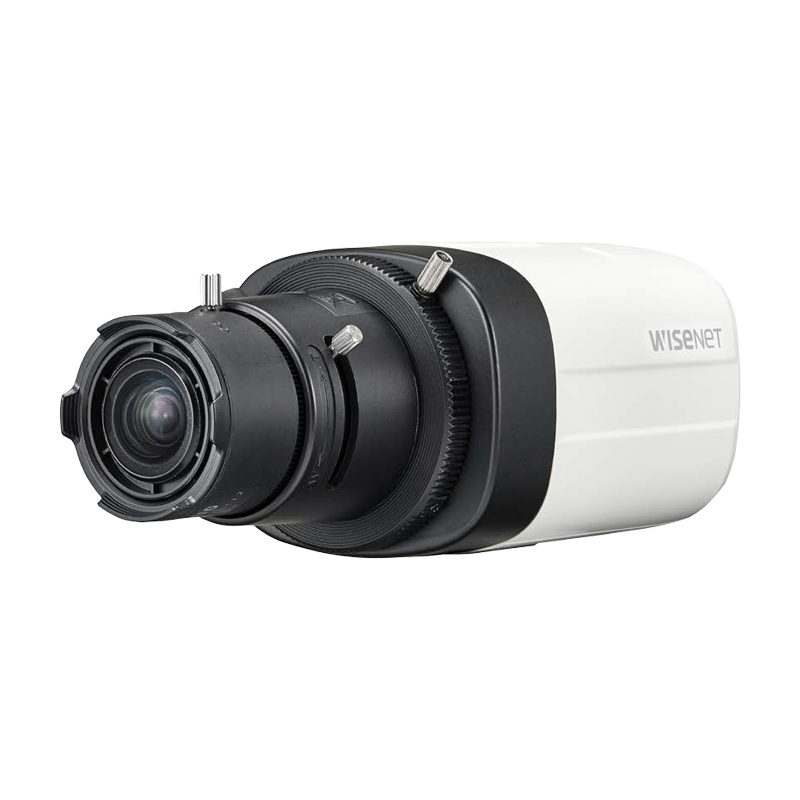

Hanwha - HCB-6000 - Wisenet HD+ 2MP, Full HD(1080p) 30fps box camera, AHD/TVI/CVI/CVBS, 120 dB true WDR, RS485 /Coaxial Control, true D/N, 24VAC/12VDC (Require 2MP or higher CS Mount Lens)
Part number:
HCB-6000
Price:
Wisenet HD+ 2MP, full HD(1080p) 30fps box camera, AHD/TVI/CVI/CVBS, 120dB true WDR, RS485 / coaxial control, true D/N, 24VAC/12VDC (require 2MP or higher CS mount lens)
Features:
- Full HD resolution
- 0.09Lux@F1.2(Color), 0.009Lux@F1.2(B/W)
- Day & Night(ICR), WDR(120dB)
- SSNRⅣ, Motion detection
- Transmission distance max.500m
- Easy installation (Plug & play), Dual power, RS-485
| VIDEO | ||
| Imaging Device | 1/2.8" 2M CMOS | |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M pixels | |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M pixels | |
| Scanning System | Progressive Scan | |
| Min. Illumination | Color : 0.09 Lux (F1.2, 1/30sec) B/W : 0.009 Lux (F1.2, 1/30sec) | |
| S / N Ratio | 52dB (AGC Off, Weight On) | |
| Video Output | BNC (AHD / TVI / CVI / CVBS selectable) | |
| Resolution | 1920 x 1080 | |
| Max. Framerate | 30fps@1080p(N) | 25fps@1080p(P) |
| LENS TYPE | ||
| Mount Type | C/CS | |
| OPERATIONAL | ||
| On Screen Display | Multi-language support (16) English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish | |
| Camera Title | Off / On (Displayed 15 Characters) | |
| Day & Night | Auto (ICR) / External / Color / B/W | |
| Backlight Compensation | Off / User BLC / HLC / WDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNRⅣ (Off / On) | |
| Defog | Off / Auto / Manual | |
| Motion Detection | Off / On (4 zones) | |
| Privacy Masking | Off / On (8 zones rectangle) | |
| Gain Control | Off / Low / Middle / High / Very High | |
| White Balance | ATW / Outdoor / Indoor (4,500K° ~ 8,500K°) / Manual / AWC (1,800K° ~ 10,500K°) | |
| Electronic Shutter Speed | 1sec ~ 1/12,000sec | |
| Reverse | Off / H-Rev / V-Rev / HV-Rev | |
| Profile | Basic, Day & Night, Backlight, ITS, Indoor, User | |
| Alarm | (MD) Output 1, External D/N 1 | |
| Remote Control Interface | Coaxial, RS-485 | |
| Protocol | AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron) CCP (CVI Coax Protocol), TCP (TVI Coax Protocol) RS-485 : Samsung T, Pelco D/P, Panasonic Bosch, Honeywell, Vicon, GE, AD | |
| Video Transmission Distance | 500m (5C2V Coaxial Cable) | |
| ENVIRONMENTAL | ||
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH | |
| ELECTRICAL | ||
| Input Voltage / Current | Dual (24V AC ±10% & 12V DC ±10%) | |
| Power Consumption | Max. 3.5W | |
| MECHANICAL | ||
| Color / Material | Ivory / Plastic | |
| Dimensions (WxHxD) | 68.4 × 59.6 × 92.7mm (2.69" × 2.35" × 3.65") | |
| Weight | 186g (0.41 lb) | |
