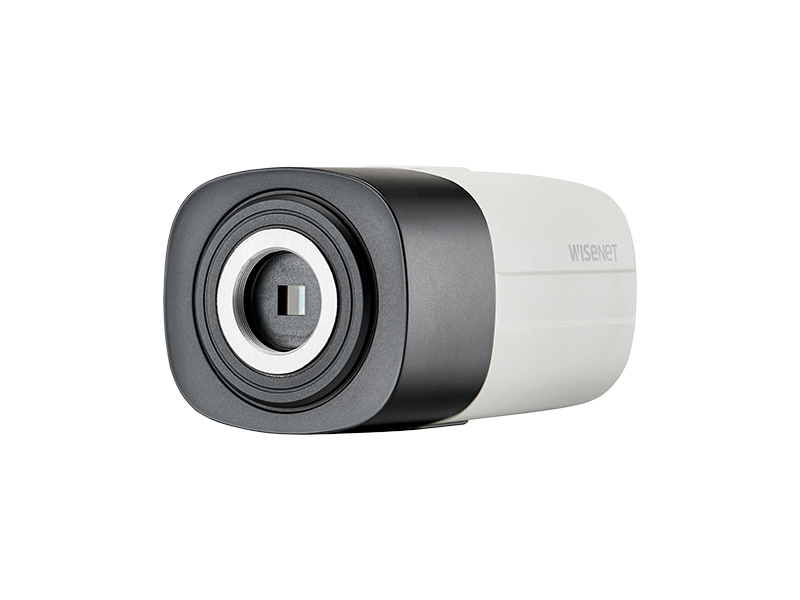

Hanwha - HCB-6001 - 2MP Analog HD Box Camera (No Lens)
Part number:
HCB-6001
Price:
WiseNet HD+ 2MP, Full HD(1080p) 30fps box camera, AHD/TVI/CVI/CVBS, 120dB true WDR, RS485 / coaxial control, simple focus, true D/N, 24VAC/12VDC (require 2MP or higher CS mount lens)
Key Features:
- Full HD(1920 x 1080, 30fps) resolution
- 0.09Lux@F1.2(Color), 0.009Lux@F1.2(B/W)
- Day & Night(ICR), WDR(120dB)
- SSNRⅣ, Motion detection
- Transmission distance max.500m
- Easy installation (Plug & play), Dual power, RS-485
| Model | HCP-6001N/P |
| VIDEO | |
| Imaging Device | 1/2.8" 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M pixels |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M pixels |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.09 Lux(F1.2) B/W : 0.009 Lux(F1.2) |
| S / N Ratio | 52dB (AGC off, Weight on) |
| Video Output | BNC(AHD / TVI / CVI / CVBS Selectable) |
| Resolution | 1920 x 1080 |
| Max. Framerate | 30fps @1080p |
| LENS | |
| Focus Control | Simple focus / Manual, Button control(Manual Simple focus, Day&Night) |
| Lens Type | Manual / DC auto Iris / P-iris |
| Mount Type | C/CS |
| OPERATIONAL | |
| On Screen Display | Multi-language Support(16) English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish |
| Camera Title | Off / On (Displayed 15 characters) |
| Day & Night | Auto (ICR) / External / Color / B/W |
| Backlight Compensation | Off / User BLC / HLC / WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅣ ( Off / On ) |
| Defog | AUTO / MANUAL / OFF |
| Motion Detection | Off / On(4 zones) |
| Privacy Masking | Off / On (4zones rectangle) |
| Gain Control | Off / Low / Middle / High / Very High |
| White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) |
| Electronic Shutter Speed | 1sec~ 1/12,000sec |
| Reverse | Off / H-Rev / V-Rev / HV-Rev |
| Profile | Basic, Day & Night, Backlight, ITS, Indoor, User |
| Alarm | (MD) output 1,External D/N 1 |
| Remote Control Interface | Coaxial, RS-485 |
| Protocol | Coax : Pelco-C(coaxitron), ACP(AHD Coax Protocol) RS-485 : Samsung T/E, Pelco D/P, Panasonic Bosch, Honeywell, Vicon, GE, AD |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Electrical | |
| Input Voltage / Current | Dual ( 24VAC±10% & 12VDC±10% ) |
| Power Consumption | Max. 6W |
| MECHANICAL | |
| Color / Material | Ivory / Plastic |
| Dimensions (WxHxD) | 73.1× 67.2 × 123.9mm (2.9" × 2.6" × 4.9") |
| Weight | 287g |
