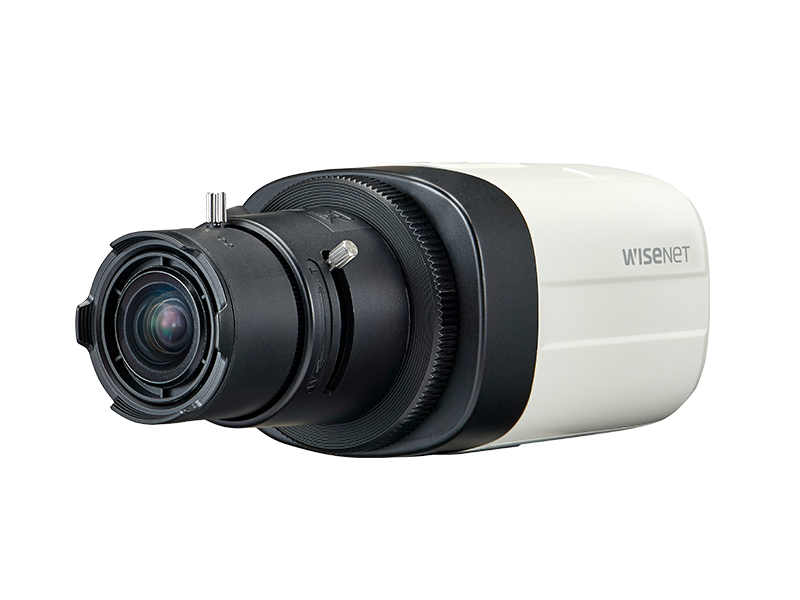

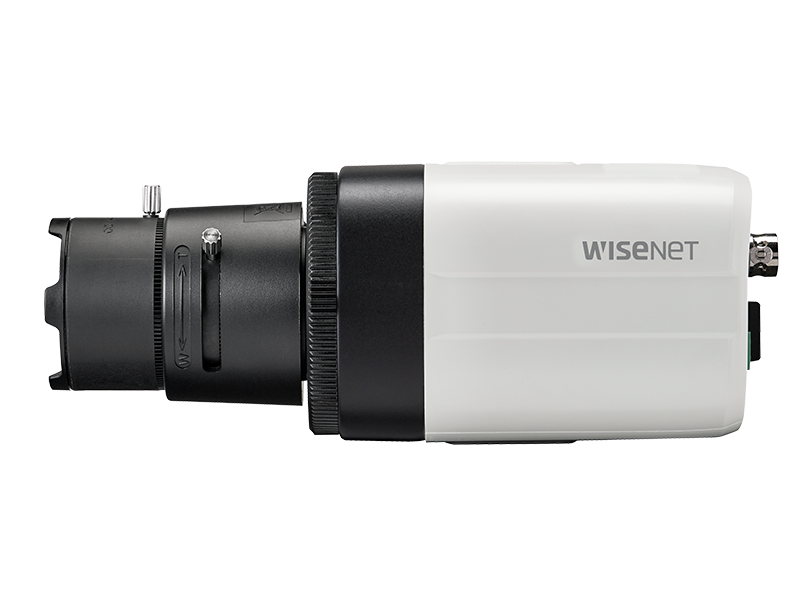

Hanwha - HCB-7000A - Wisenet HD+ 4MP box camera, AHD or CVBS formats are available, RS485 /Coaxial Control, true D/N, 24VAC/12VDC (Require 4MP or higher CS Mount Lens).
Part number:
HCB-7000A
Price:
Wisenet HD+ 4MP box camera, AHD or CVBS formats are available, RS485 /Coaxial Control, true D/N, 24VAC/12VDC (Require 4MP or higher CS Mount Lens)
Compatible with HRX- Series DVRs
Features:
- QHD (2560 x 1440, 30fps) resolution
- 0.16 Lux@F1.2 (Color), 0.009 Lux@F1.2 (B/W)
- Day & Night (ICR), DWDR, Motion detection
- Transmission distance Max. 500m
- Easy installation (Plug & play), Dual power
| Model | HCB-7000N/P | |
| VIDEO | ||
| Imaging Device | 1/3" 4M CMOS | |
| Total Pixels | 2,720(H) x 1,536(V) | |
| Effective Pixels | 2,688(H) x 1,520(V) | |
| Scanning System | Progressive Scan | |
| Min. Illumination | Color : 0.16 Lux (F1.2) B/W : 0.009 Lux (F1.2) | |
| S / N Ratio | 52dB (AGC off, Weight on) | |
| Video Output | BNC (AHD), Additional CVBS for installation | |
| Resolution | 2560 x 1440 | |
| Max. Framerate | 30fps@4M | 25fps@4M |
| LENS TYPE | ||
| Focus Control | Manual | |
| Lens Type | Manual / DC auto Iris | |
| Mount Type | C/CS | |
| OPERATIONAL | ||
| On Screen Display | Multi-language Support (14) English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech,Romanian, Serbian, Swedish, Danish, Turkish | |
| Day & Night | Auto (ICR) / External / Color / B/W | |
| Backlight Compensation | Off / User BLC / HLC | |
| Wide Dynamic Range | D-WDR (Off / On) | |
| Digital Noise Reduction | 2D DNR | |
| Motion detection | Off / On (4 zones) | |
| Privacy Masking | Off / On (2 zones rectangle) | |
| Gain Control | Off / Low / Middle / High / Very High | |
| White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) | |
| Electronic Shutter Speed | 1/30sec ~ 1/12,000sec | 1/25sec ~ 1/12,000sec |
| Reverse | Off / H-Rev / V-Rev | |
| Alarm | (MD) Output 1 | |
| ENVIRONMENTAL | ||
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH | |
| ELECTRICAL | ||
| Input Voltage | Dual (24V AC ±10% & 12V DC ±10%) | |
| Power Consumption | MAX. 3.6W | |
| MECHANICAL | ||
| Color / Material | Black / Aluminum, Ivory / Plastic | |
| Dimensions (WxHxD) | 68.4 × 59.6 × 92.7mm (2.69" × 2.35" × 3.65") | |
| Weight | 186g (0.41 lb) | |
