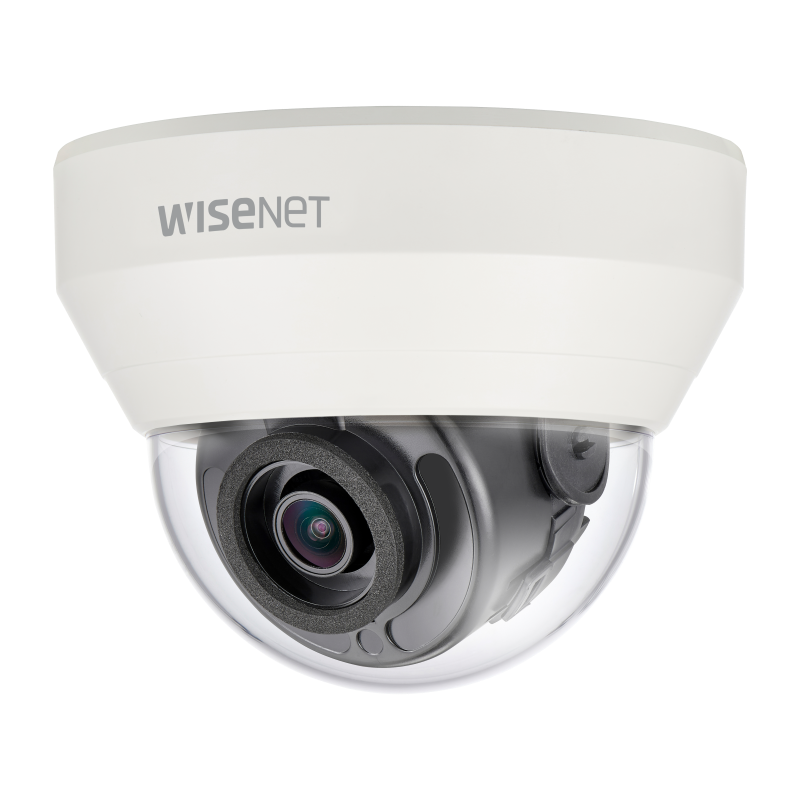

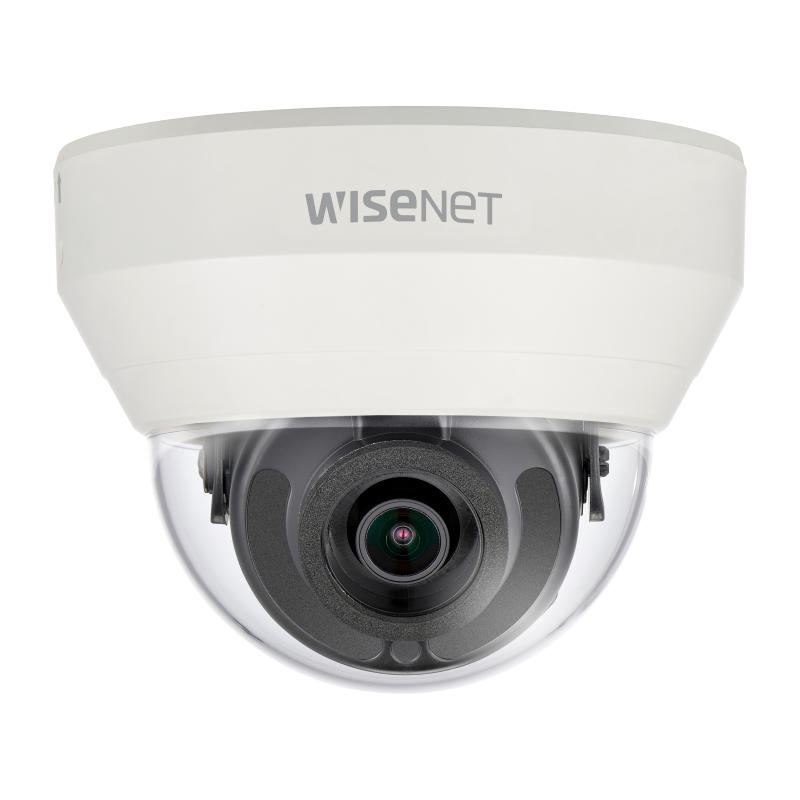

Hanwha - HCD-6010 - 2MP Wisenet HD+ Indoor Dome Camera
Part number:
HCD-6010
Price:
Wisenet HD+ 2MP, full HD (1080p), 30fps indoor dome camera, AHD/TVI/CVI/CVBS, 2.8mm Lens, 120dB true WDR, true D/N, 12VDC
Features:
- Full HD resolution
- 0.27Lux@F2.0(Color), 0.017Lux
- 2.8mm wide-angle lens
- Day & Night(ICR), WDR(120dB)
- SSNRⅣ, Motion detection
- Transmission distance 1640ft
- Easy installation (Plug & play), 12VDC
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
| VIDEO | |
| Imaging Device | 1/2.8" 2M CMOS |
| Resolution | 1920 x 1080 |
| Max. Framerate | 30fps @1080p(N), 25fps @ 1080p(P) |
| Min. Illumination | Color : 0.27Lux (F2.0, 1/30sec) B/W : 0.017Lux |
| Video Out | BNC(AHD / TVI / CVI / CVBS Selectable) |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 113.7° / V: 61.5° / D: 134.5° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| OPERATIONAL | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅣ |
| Defog | Support |
| Motion Detection | 4ea |
| Privacy Masking | 8ea, rectangular zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1 ~ 1/12,000sec |
| Video Rotation | H-Rev / V-Rev |
| Analytics | Motion detection |
| Coaxial Protocol | ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS : Pelco-C(Coaxitron) |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH |
| ELECTRICAL | |
| Input Voltage | 12VDC |
| Power Consumption | Max 3.6W |
| MECHANICAL | |
| Color / Material | Ivory / Plastic |
| Product Dimensions / Weight | Ø110 x 86mm(4.33 x 3.39"), 221g(0.49 lb) |
