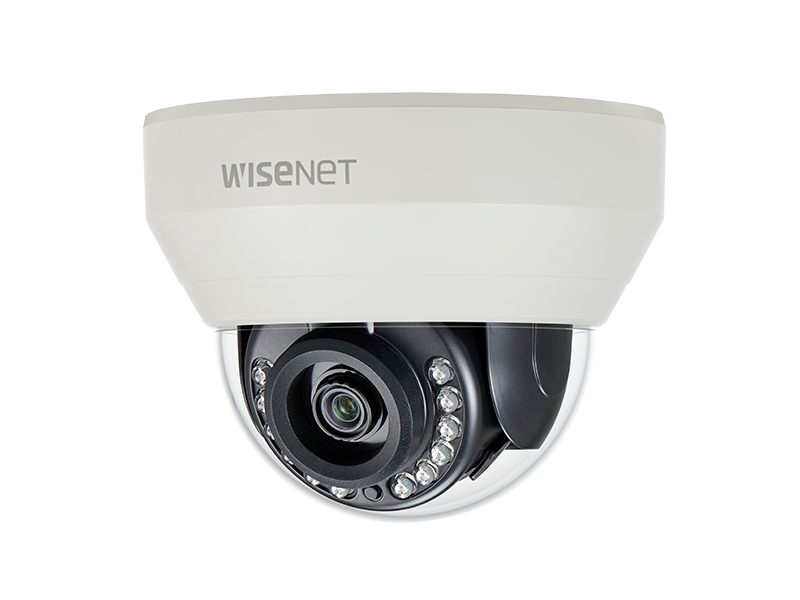

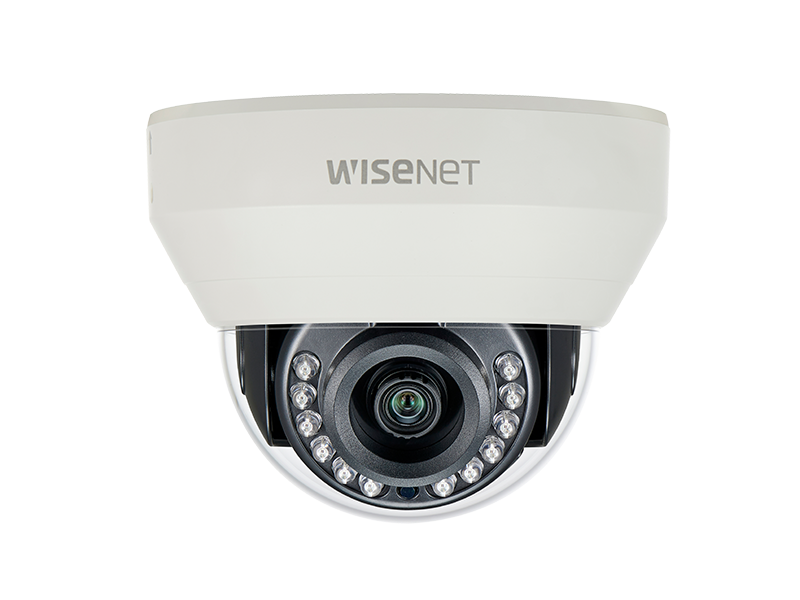

Hanwha - HCD-7020RA - 4MP Wisenet HD+ Indoor Dome Camera
Part number:
HCD-7020RA
Price:
Wisenet HD+ 4MP IR indoor dome camera, AHD or CVBS formats are available, 4.0 mm fixed lens, true D/N, 12VDC, IR distance 82 feet
Compatible with HRX- Series DVRs
Features:
- 0.27 Lux@F2.0 (Color) (HCD-7020R/7030R),0 Lux (B/W : IR LED on)
- Built-in 4.0mm fixed lens (HCD-7020R)
- Day & Night (ICR), DWDR, Motion detection
- IR Viewable Length 25m(7020R)
- Transmission distance max.500m
- Easy installation (Plug & play)
| Model | HCD-7010R/7020R/7030RN/P | |
| VIDEO | ||
| Imaging Device | 1/3" 4M CMOS | |
| Total Pixels | 2,720(H) x 1,536(V) | |
| Effective Pixels | 2,688(H) x 1,520(V) | |
| Scanning System | Progressive Scan | |
| Min. Illumination | Color : 0.26 Lux (F1.8) (HCD-7010R), 0.27 Lux (F2.0) (HCD-7020R/7030R) B/W : 0 Lux (IR LED on) | |
| S / N Ratio | 52dB (AGC off, Weight on) | |
| Video Output | BNC (AHD), Additional CVBS for installation (2Pin connector type) | |
| Resolution | 2560 x 1440 | |
| Max. Framerate | 30fps@4M | 25fps@4M |
| PAN / TILT / ROTATE | ||
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° | |
| LENS TYPE | ||
| Focal Length (Zoom Ratio) | 2.8mm fixed (HCD-7010R), 4.0mm fixed (HCD-7020R), 6.0mm fixed (HCD-7030R) | |
| Max. Aperture Ratio | F1.8 (HCD-7010R), F2.0 (HCD-7020R/7030R) | |
| Angular Field of View | H : 107.48° / V : 59.67° / D : 122.01° (HCD-7010R) H : 78.22° / V : 41.21° / D : 87.91° (HCD-7020R) H : 49.01° / V : 27.61° / D : 55.6° (HCD-7030R) | |
| Min. Object Distance | 0.5m (1.64ft) | |
| Lens Type | Fixed | |
| Mount Type | Board-in Type | |
| OPERATIONAL | ||
| On Screen Display | Multi-language Support(14) English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish | |
| Day & Night | Auto (ICR) / Color / B/W | |
| Backlight Compensation | Off / User BLC / HLC | |
| Wide Dynamic Range | D-WDR (Off / On) | |
| Digital Noise Reduction | 2D DNR | |
| Motion detection | Off / On (4 zones) | |
| Privacy Masking | Off / On (2 zones rectangle) | |
| Gain Control | Off / Low / Middle / High / Very High | |
| White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) | |
| Electronic Shutter Speed | 1/30sec ~ 1/12,000sec | 1/25sec ~ 1/12,000sec |
| Reverse | Off / H-Rev / V-Rev | |
| Remote Control Interface | Coaxial | |
| Protocol | AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron) | |
| IR Distance | 20m (65.62ft) : HCD-7010R, 25m (82.02ft) : HCD-7020R 30m (98.43ft) : HCD-7030R | |
| 500m (5C2V Coaxial cable) | ||
| Video Transmission Distance | ||
| ENVIRONMENTAL | ||
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH | |
| ELECTRICAL | ||
| Input Voltage | 12V DC ±10% | |
| Power Consumption | Max. 5.0W | |
| MECHANICAL | ||
| Color / Material | Ivory / Plastic | |
| Dimensions (WxH) | Ø110.1 × 86.1mm (Ø4.33" × 3.39") | |
| Weight | 240g (0.53 lb) | |
