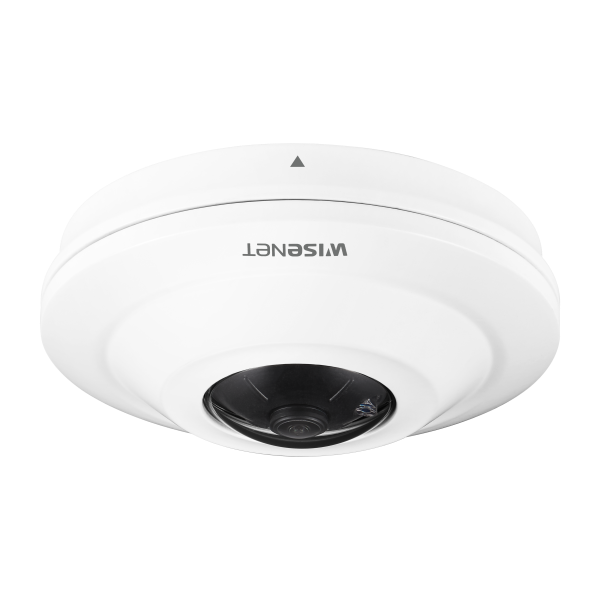

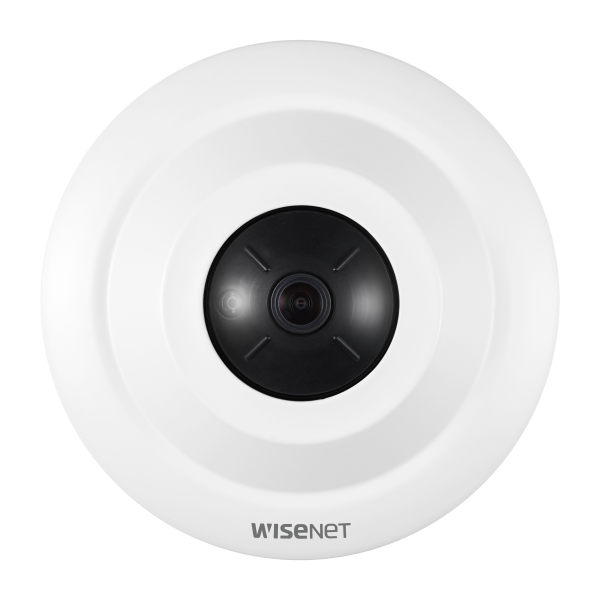

Hanwha - HCF-8010V - WiseNet HD+ 5MP Analog HD Fisheye Dome Camera
Part number:
HCF-8010V
Price:
5MP (2560x1944) resolution, 20FPS @5MP, BLC, Day & Night (ICR), Digital Wide Dynamic Range, Coaxial communication (HD / SD mode), Selectable universal output (TVI / AHD / CVBS), IP66, IK10, Power 12VDC/24VAC
Features :
- 5MP (2560 x 1944, 20fps) resolution
- 0.95 Lux@F2.1 (Color), 0.005 Lux (B/W)
- Ultra-wide Angle 0.98mm lens
- Day & Night (ICR), DWDR, Motion detection
- Maximum transmission distance 500m
- Easy installation (Plug & play), IP66, IK10
- 24v AC / 12v DC power
Technical Specs
| Imaging Device | 1 / 2.9" CMOS |
| Total Pixels | 2560 x 1944 |
| Effective Pixels | 1944 x 1944 |
| Scanning System | Progressive scan |
| Minimum Illumination | Color : 0.95Lux(F2.1, 30IRE), B/W : 0.005Lux(F2.1, 30IRE) |
| S/N Ratio | 52 dB (AGC off, Weight on ) |
| Video Output | AHD / TVI / CVBS switchable |
| Resolution | 5 MP (2560 x 1944) |
| Maximum Framerate | 20 fps @5MP |
LENS TYPE
| Focal Length (Zoom Ratio) | 0.98mm |
| Maximum Aperture Ratio | F2.1 |
| Angular Field of View | H : 180˚, V : 180˚ |
| Minimum Object Distance | 0.2 m |
| Focus Control | Manual |
| Lens Type | Fixed lens |
| Mount Type | Board-in type |
NETWORK
| On Screen Display | English |
| Day & Night | Auto (ICR) / Color / B/W |
| Backlight Compensation | Off / User BLC |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 3 DNR, 2DNR |
| Gain Control | Support |
| White Balance | ATW / Indoor / Outdoor / Manual /AWC (1,800K° ~ 10,500K°) |
| Electronic Shutter Speed | 1 /30sec~ 1/50,000sec |
| Reverse | Mirror/V-Flip/Rotate |
| Remote Control Interface | Coaxial |
| Protocol | AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron), TCP (TVI Coax Protocol) |
| Video Transmission Distance | 500m (5C2V coaxial cable) |
ENVIRONMENTAL
| Operating Temperature / Humidity | -30 °C ~ +55°C (-22°F ~ +131°F ) |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
ELECTRICAL
| Input Voltage/Current | DC 12V, AC 24V |
| Power Consumption | Maximum 2W |
MECHANICAL
| Color / Material | White / Metal |
| Dimension (WxHxD) | Ø 120 x 63.4mm (Ø 4.72" x 2.50") |
| Weight | 500 g / 1.1 lb |
