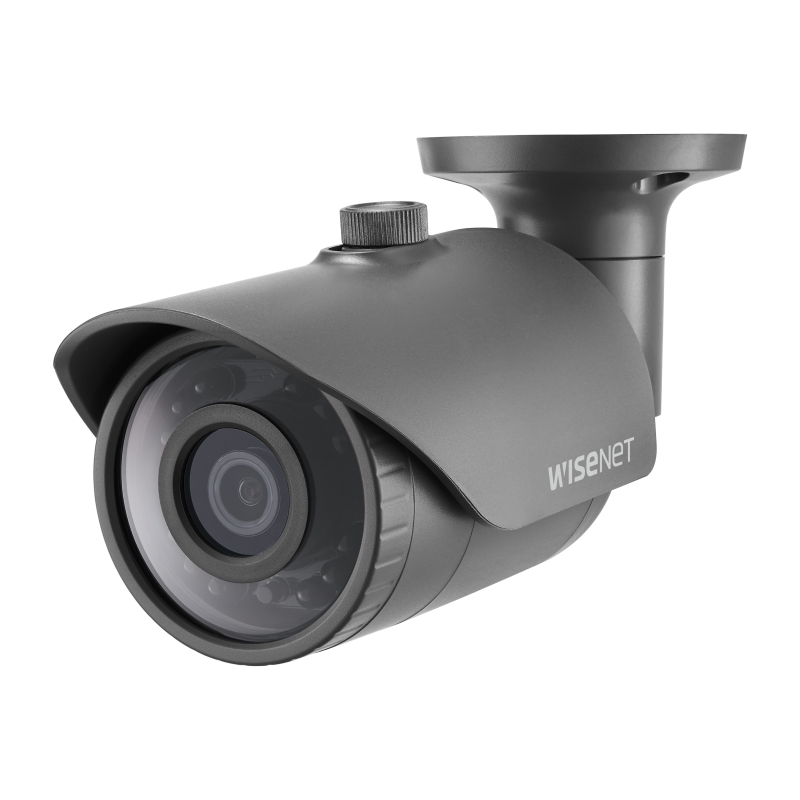

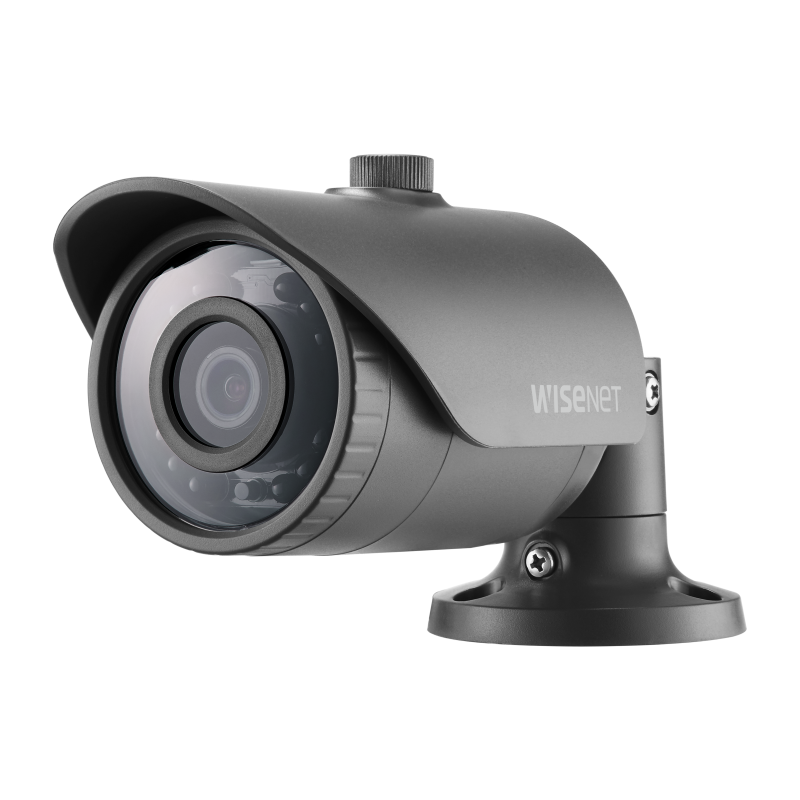

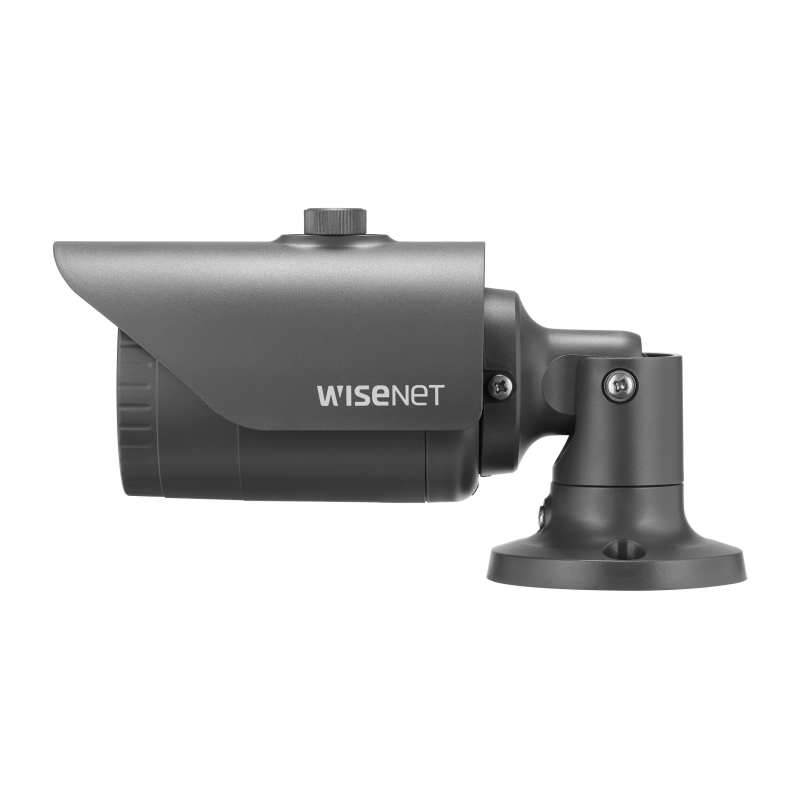

Hanwha - HCO-6020R - WiseNet HD+ 2MP Analog HD Bullet Camera with Night Vision
Part number:
HCO-6020R
Price:
Wisenet HD+ 2MP, Full HD (1080p), 30fps IR outdoor bullet camera, AHD/TVI/CVI/CVBS, 4.0mm Lens, 120dB true WDR, true D/N, 12VDC, IR distance 98 feet, IP66
Key Features:
- Full HD resolution
- 0.17Lux@F1.6(Color), 0Lux(B/W : IR LED on)
- 4.0mm lens
- Day & Night(ICR), WDR(120dB)
- SSNRⅣ, Motion detection
- IR viewable length : 98 feet, IP66, 12CDC
- Transmission distance Max.500m
- Easy installation (Plug & play),Coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
| Model | HCO-6020R |
| VIDEO | |
| Imaging Device | 1/2.8" 2 MP CMOS |
| Effective Pixels | 1945(H)x1097(V) |
| Resolution | 1920 x 1080 |
| Maximum Framerate | 30fps@1080p |
| Minimum Illumination | Color : 0.17Lux (F1.6, 1/30sec) / B/W : 0Lux(IR LED on) |
| Video Out | BNC (AHD / TVI / CVI / CVBS Selectable) |
| LENS | |
| Focal Length (Zoom Ratio) | 4mm fixed focal |
| Maximum Aperture Ratio | F1.6 |
| Angular Field of View | H : 87.6˚ / V : 46.4˚ / D : 104.5˚ |
| Minimum Object Distance | 1.64ft (0.5m) |
| Focus Control | Manual |
| OPERATIONAL | |
| IR Viewable Length | 98.43ft (30m) |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR IV |
| Defog | Support |
| Motion Detection | 4ea |
| Privacy Masking | 8ea, rectangular zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1 ~ 1/12,000sec |
| Video Rotation | H-Rev / V-Rev |
| Analytics | Motion detection |
| Coaxial Protocol | ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS : Pelco-C(Coaxitron) |
| 1640ft (500m) (5C2V Coaxial Cable) | |
| Video Transmission Distance | |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH |
| Certification | IP66 |
| ELECTRICAL | |
| Input Voltage | 12VDC |
| Power Consumption | Maximum 5.4W |
| MECHANICAL | |
| Color / Material | Dark Gray / Plastic |
| Product dimension / weight | Ø58.6 x 165.2mm(2.31 x 6.50"), 279g(0.62 lb) |
