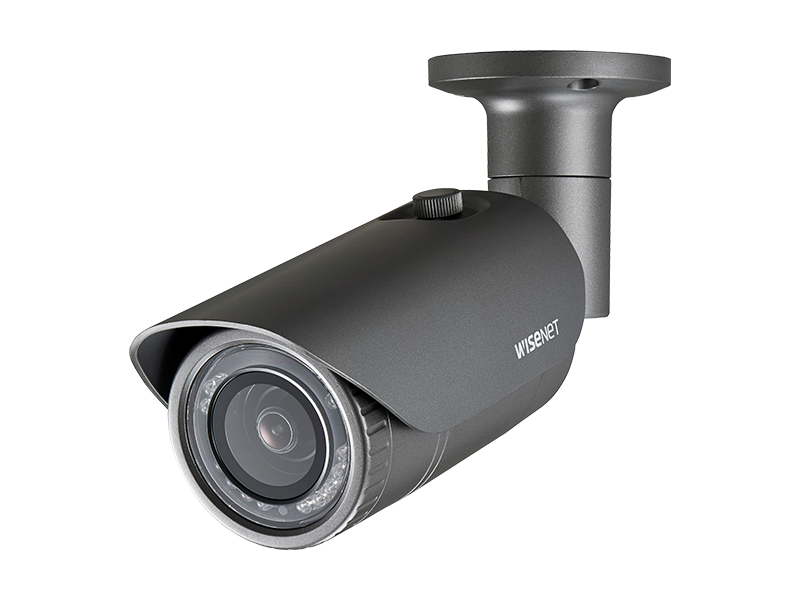

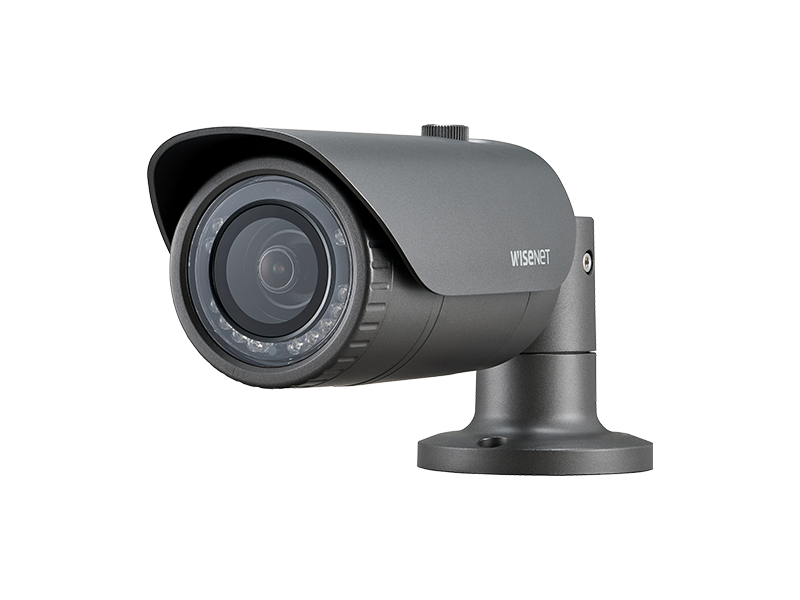

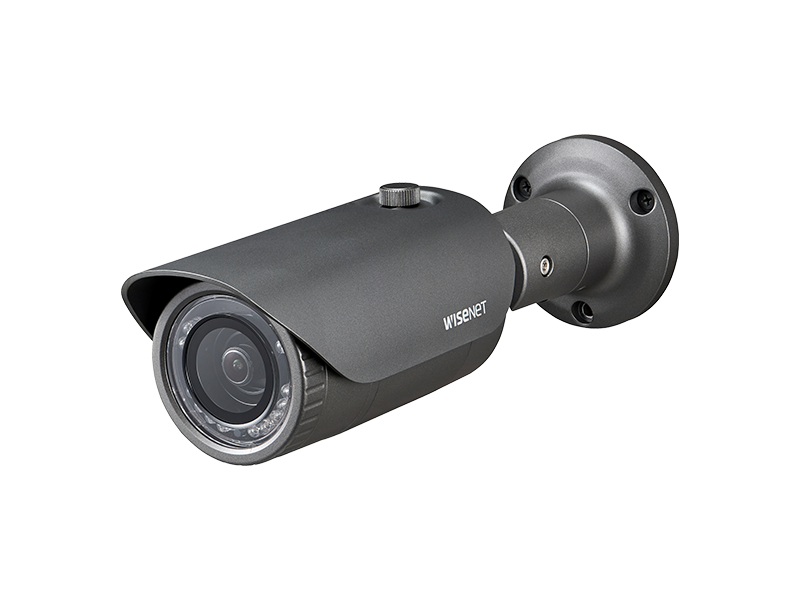

Wisenet HD+ 4MP IR bullet camera, AHD or CVBS formats are available, 2.8 mm fixed lens, true D/N, 12VDC, IR distance 65 feet, IP66/IK10
Not Compatible with HRX- Series DVRs
- QHD (2560 x 1440, 30fps) resolution
- 0.26 Lux@F1.8 (Color),0 Lux (B/W : IR LED on)
- Built-in 2.8mm fixed lens
- Day & Night (ICR), DWDR, Motion detection
- IR Viewable Length 20m
- Transmission distance max.500m
- Easy installation (Plug & play), IP66, IK10
|
Model |
HCO-7010R/7020R/7030RN/P |
|
|
VIDEO |
|
|
|
Imaging Device |
1/3" 4M CMOS |
|
|
Total Pixels |
2,720(H) x 1,536(V) |
|
|
Effective Pixels |
2,688(H) x 1,520(V) |
|
|
Scanning System |
Progressive Scan |
|
|
Min. Illumination |
Color : 0.26 Lux (F1.8) (HCO-7010R), 0.27 Lux (F2.0) (HCO-7020R/7030R) |
|
| B/W : 0 Lux (IR LED on) | ||
|
S / N Ratio |
52dB (AGC off, Weight on) |
|
|
Video Output |
BNC (AHD), Additional CVBS for installation (2Pin connector type) |
|
|
Resolution |
2560 x 1440 |
|
|
Max. Framerate |
30fps@4M |
25fps@4M |
|
LENS TYPE |
||
|
Focal Length (Zoom Ratio) |
2.8mm fixed (HCO-7010R), 4.0mm fixed (HCO-7020R), 6.0mm fixed (HCO-7030R) |
|
|
Max. Aperture Ratio |
F1.8 (HCO-7010R), F2.0 (HCO-7020R/7030R) |
|
|
Angular Field of View |
H : 107.48° / V : 59.67° / D : 122.01° (HCO-7010R) |
|
|
H : 78.22° / V : 41.21° / D : 87.91° (HCO-7020R) |
||
|
H : 49.01° / V : 27.61° / D : 55.6° (HCO-7030R) |
||
|
Min. Object Distance |
0.5m (1.64ft) |
|
|
Lens Type |
Fixed |
|
|
Mount Type |
Board-in Type |
|
|
OPERATIONAL |
||
|
On Screen Display |
Multi-language Support(14) |
|
|
English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, |
||
|
Romanian, Serbian, Swedish, Danish, Turkish |
||
|
Day & Night |
Auto (ICR) / Color / B/W |
|
|
Backlight Compensation |
Off / User BLC / HLC |
|
|
Wide Dynamic Range |
D-WDR (Off / On) |
|
|
Digital Noise Reduction |
2D DNR |
|
|
Motion detection |
Off / On (4 zones) |
|
|
Privacy Masking |
Off / On (2 zones rectangle) |
|
|
Gain Control |
Off / Low / Middle / High / Very High |
|
|
White Balance |
ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) |
|
|
Electronic Shutter Speed |
1/30sec ~ 1/12,000sec |
1/25sec ~ 1/12,000sec |
|
Reverse |
Off / H-Rev / V-Rev |
|
|
Remote Control Interface |
Coaxial |
|
|
Protocol |
AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron) |
|
|
IR Distance |
20m (65.62ft) : HCO-7010R, 25m (82.02ft) : HCO-7020R 30m (98.43ft) : HCO-7030R |
|
|
Video Transmission Distance |
500m (5C2V Coaxial cable) |
|
|
ENVIRONMENTAL |
||
|
Operating Temperature / Humidity |
-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C (+14°F) |
|
|
Ingress Protection |
IP66 |
|
|
Vandal Resistance |
IK10 |
|
|
ELECTRICAL |
||
|
Input Voltage |
12V DC ±10% |
|
|
Power Consumption |
Max. 5.0W |
|
|
MECHANICAL |
||
|
Color / Material |
Dark Gray / Aluminum |
|
|
Dimensions (WxH) |
Ø70.0 x 246.0 mm (Ø2.76" x 9.69") (Without sunshield) |
|
|
Weight |
670g (1.48 lb) |
|
