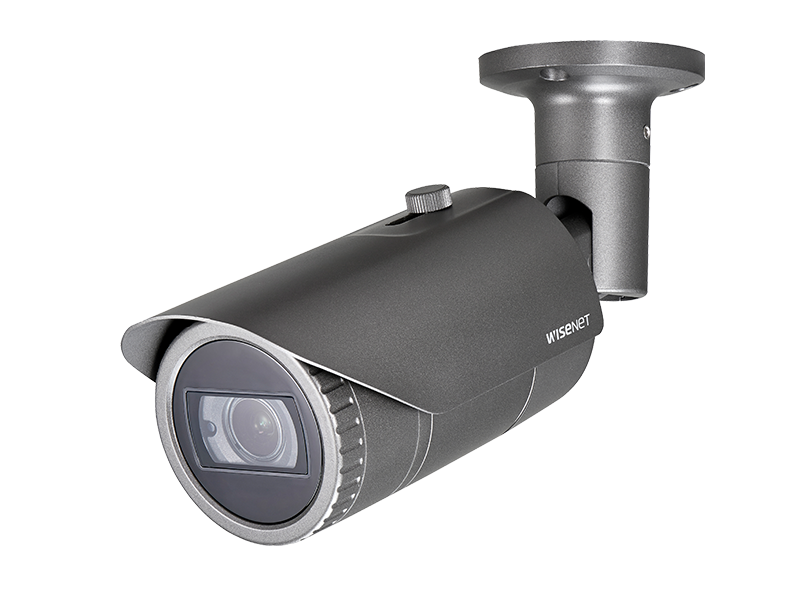

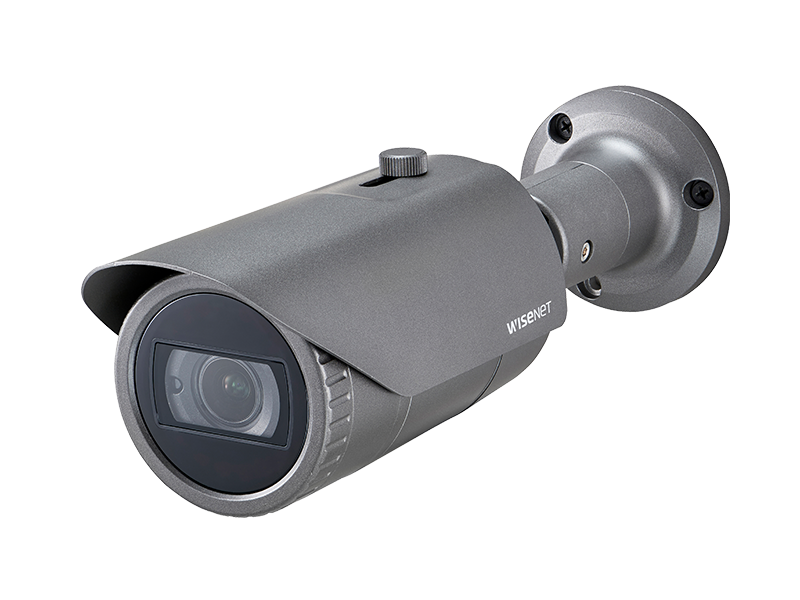

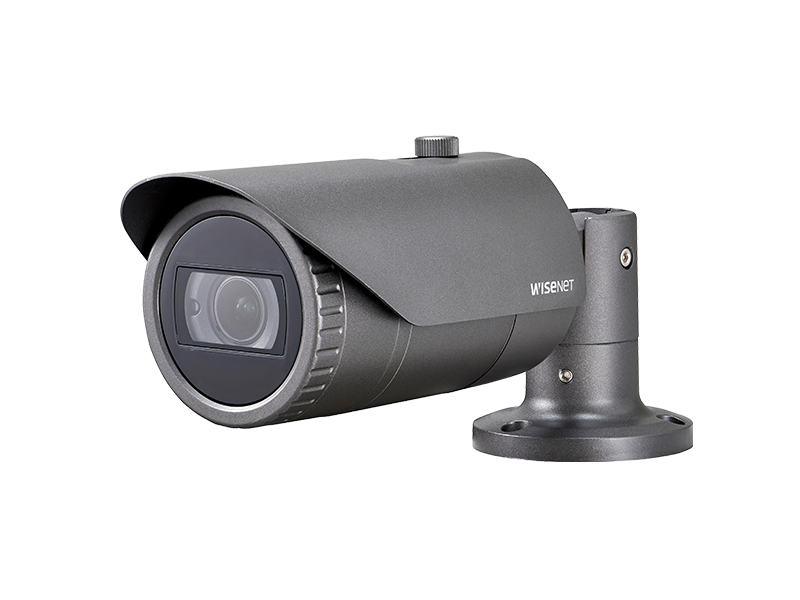

HCO-7070R
Wisenet HD+ 4MP IR bullet camera, AHD or CVBS formats are available, manual vari-focal Lens (3.1X) (3.2-10mm), true D/N, 24VAC/12VDC, IR distance 98 feet, IP66/IK10
Part number:
HCO-7070R
Price:
- QHD (2560 x 1440, 30fps) resolution
- 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Day & Night (ICR), DWDR, Motion detection
- Transmission distance Max. 500m
- Easy installation (Plug & play), Dual power
- IP66, IK10 support
| VIDEO | |||
| Imaging Device | 1/3" 4M CMOS | ||
| Total Pixels | 2,720(H) x 1,536(V) | ||
| Effective Pixels | 2,688(H) x 1,520(V) | ||
| Scanning System | Progressive Scan | ||
| Min. Illumination | Color : 0.16 Lux (F1.6) B/W : 0 Lux (IR LED on) | ||
| S / N Ratio | 52dB (AGC off, Weight on) | ||
| Video Output | BNC (AHD), Additional CVBS for installation (2Pin connector type) | ||
| Resolution | 2560 x 1440 | ||
| Max. Framerate |
|
||
| LENS TYPE | |||
| Focal Length (Zoom Ratio) | 3.2 ~ 10mm (3.1x) varifocal | ||
| Max. Aperture Ratio | F1.6 | ||
| Angular Field of View | H : 93.48˚(Wide) ~ 29.44˚(Tele) / V : 50.47˚(Wide) ~ 16.64˚(Tele) / D : 112.53˚(Wide) ~ 33.7˚(Tele | ||
| Min. Object Distance | 0.5m (1.64ft) | ||
| Focus Control | Manual | ||
| Lens Type | DC Auto Iris | ||
| Mount Type | Board-in Type | ||
| OPERATIONAL | |||
| On Screen Display | Multi-language Support (14) English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish | ||
| Day & Night | Auto (ICR) / Color / B/W | ||
| Backlight Compensation | Off / User BLC / HLC | ||
| Wide Dynamic Range | D-WDR (Off / On) | ||
| Digital Noise Reduction | 2D DNR | ||
| Motion detection | Off / On (4 zones) | ||
| Privacy Masking | Off / On (2 zones rectangle) | ||
| Gain Control | Off / Low / Middle / High / Very High | ||
| White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) | ||
| Electronic Shutter Speed |
|
||
| Reverse | Off / H-Rev / V-Rev | ||
| Alarm | (MD) output 1 | ||
| Remote Control Interface | Coaxial | ||
| Protocol | AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron) | ||
| IR Distance | 30m (98.43ft) | ||
| Video Transmission Distance | 500m (5C2V Coaxial cable) | ||
| ENVIRONMENTAL | |||
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C (+14°F) | ||
| Ingress Protection | IP66 | ||
| Vandal Resistance | IK10 | ||
| ELECTRICAL | |||
| Input Voltage | Dual ( 24V AC ±10% & 12V DC ±10%) | ||
| Power Consumption | MAX. 5.8W | ||
| MECHANICAL | |||
| Color / Material | Dark Gray / Aluminum | ||
| Dimensions (WxH) | Ø78.0 x 259.8mm (Ø3.07" x 10.23") (Without sunshield) | ||
| Weight | 914g (2.02 lb) |
