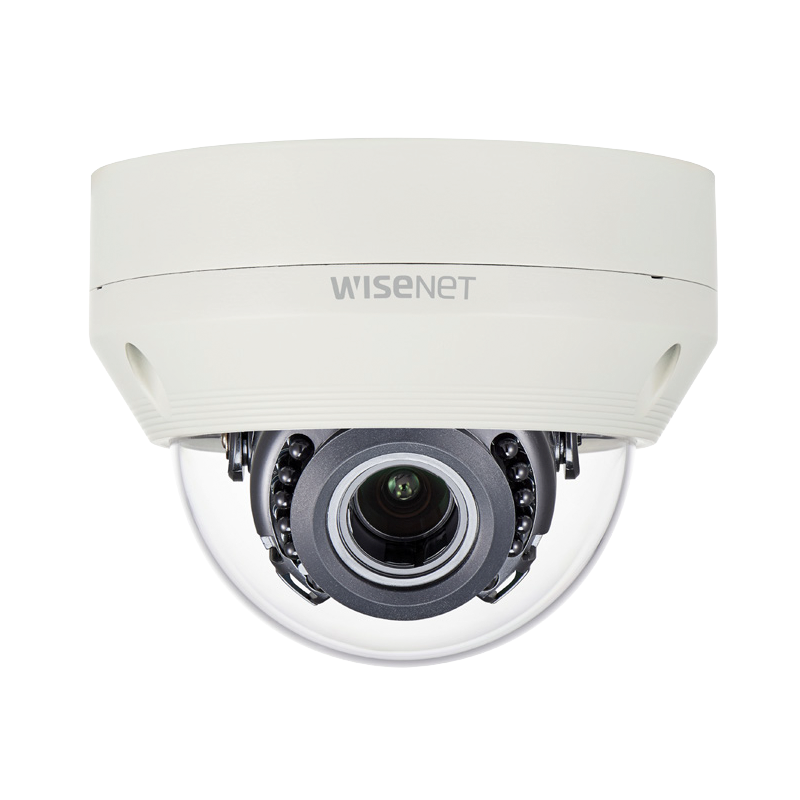

Hanwha - HCV-6070R - 2MP Analog HD IR Outdoor Dome
Part number:
HCV-6070R
Price:
Wisenet HD+ 2MP, full HD (1080p), 30fps IR outdoor dome camera, AHD/TVI/CVI/CVBS, manual vari-focal lens (3.1x) (3.2~10mm), 120dB true WDR, true D/N, 24VAC/12VDC, IR distance 98 feet, IP66/IK10
Features:
- Full HD resolution
- 0.11Lux@F1.4(Color), 0Lux(B/W : IR LED on)
- 3.2~10mm(3.1x) V/F lens
- Day & Night(ICR), WDR(120dB)
- SSNRⅣ, Motion detection
- IR viewable length : 98 feet, IP66, IK10, Dual power
- Transmission ditance Max.500m
- Easy installation (Plug & play), Dual power, RS-485
| Model | HCV-6070RN | HCV-6070RP |
| VIDEO | ||
| Imaging Device | 1/2.8" 2M CMOS | |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M pixels | |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M pixels | |
| Scanning System | Progressive Scan | |
| Min. Illumination | Color : 0.11 Lux (F1.6, 1/30sec) B/W : 0 Lux (IR LED on) | |
| S / N Ratio | 52dB (AGC Off, Weight On) | |
| Video Output | BNC (AHD / TVI / CVI / CVBS selectable) | |
| Resolution | 1920 x 1080 | |
| Max. Framerate | 30fps@1080p(N) | 25fps@1080p(P) |
| PAN / TILT / ROTATE | ||
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° | |
| LENS TYPE | ||
| Focal Length (Zoom Ratio) | 3.2 ~ 10mm (3.1x) varifocal | |
| Max. Aperture Ratio | F1.6 | |
| Angular Field of View | H : 110.2˚(Wide) ~ 32˚(Tele) / V : 55.4˚(Wide) ~ 18˚(Tele) / D : 128.4˚(Wide) ~ 36.6˚(Tele) | |
| Min. Object Distance | 0.5m (1.64ft) | |
| Focus Control | Manual | |
| Lens Type | DC Auto Iris | |
| Mount Type | Board-in Type | |
| OPERATIONAL | ||
| On Screen Display | Multi-language support (16) English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish | |
| Camera Title | Off / On (Displayed 15 Characters) | |
| Day & Night | Auto (ICR) / Color / B/W | |
| Backlight Compensation | Off / User BLC / HLC / WDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNRⅣ (Off / On) | |
| Defog | Off / Auto / Manual | |
| Motion Detection | Off / On (4 zones) | |
| Privacy Masking | Off / On (8 zones rectangle) | |
| Gain Control | Off / Low / Middle / High / Very High | |
| White Balance | ATW / Outdoor / Indoor (4,500K° ~ 8,500K°) / Manual / AWC (1,800K° ~ 10,500K°) | |
| Electronic Shutter Speed | 1sec ~ 1/12,000sec | |
| Reverse | Off / H-Rev / V-Rev / HV-Rev | |
| Profile | Basic, Day & Night, Backlight, ITS, Indoor, User | |
| Alarm | (MD) Output 1 | |
| Remote Control Interface | Coaxial | |
| Protocol | AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron),CCP (CVI Coax Protocol), TCP (TVI Coax Protocol) | |
| 30m (98.43ft) | ||
| IR Distance | ||
| Video Transmission Distance | 500m (5C2V Coaxial Cable) | |
| ENVIRONMENTAL | ||
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C (+14°F) | |
| Ingress Protection | IP66 | |
| Vandal Resistance | IK10 | |
| ELECTRICAL | ||
| Input Voltage / Current | Dual (24V AC ±10% & 12V DC ±10%) | |
| Power Consumption | Max. 4.2W | |
| MECHANICAL | ||
| Color / Material | Ivory / Aluminum | |
| Dimensions (WxH) | Ø137 × 106.1mm (Ø5.39" × 4.18") | |
| Weight | 715g (1.58 lb) | |
