Video

Inputs

4channel BNC : AHD (2MP, 4MP), TVI (2MP), CVI (2MP), NTSC / PAL

Resolution

2560 x 1440, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480 /

960 x 576, 704 x 576

Live

Frame Rate

120fps / 100fps

Resolution

2560 x 1440, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480 /

960 x 576, 704 x 576

Multi Screen Display

1 / 4 / PIP / Sequence

Operating System

Embedded

Linux

Recording

Compression

H.264

Record Rate (Analog)

NTSC : Up to 60fps@4MP / PAL : Up to 50fps@4MP

NTSC : Up to 120fps@1920 x 1080 / PAL : Up to 100fps@1920 x 1080

NTSC : Up to 120fps@1280 x 720, 928 x 480, 704 x 480, 704 x 240, 352 x 240

PAL : Up to 100fps@1280 x 720, 928 x 576, 704 x 576, 704 x 288, 352 x 288

Mode

Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 30 fps (N), 1 ~ 25fps (P))

Event

Video Loss, Motion (Level 1 ~ 10),

Alarm, Tampering (Level Low, Medium, High)

Overwrite Modes

Continuous

Pre-alarm

Up to 30 sec (5, 10, 20, 30 Sec)

Post-alarm

Up to 6 hour (5, 10, 20, 30 Sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4, 5, 6 hour)

Search & Playback

Search Mode

Date / time, Event, Back up, Motion

(※ All Search Included Preview Function)

Playback Function

Fast forward / Backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only

Slow forward / Backward (1/2x, 1/4x, 1/8x)

Step Forward / Backward ※ Backward Play with I-frame only

Network (IPv4)

Transmission Speed

Record (Main) Stream 4MP : 15fps / CH, 1080p / 720p / WD1 / 4CIF / CIF : 30fps / CH (N), 25fps / CH (P) Network (Sub) Stream WD1 / 4CIF : 12fps / CH, 2CIF / CIF : 30fps / CH (N), 25fps / CH (P)

Bandwidth

Up to 64Mbps

Bandwidth Control

Selectable

Stream

Record stream and network stream selectable (at monitoring viewer)

Max. Remote Users

Search (3) / Live Unicast (10) / Live Multicast (20)

Protocol Support

TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP

Monitoring

SSM, Webviewer, SmartViewer, iPOLiS mobile viewer

Smart Phone

Platform

Android, iOS

Protocol Support

RTP, RTSP, HTTP

Control

Live (8ch) : Multi-Profile Support Playback (1ch)

Max. Remote Users

Search (3), Live Unicast (10), Multicast (20)

Storage

Internal HDD

SATA HDD (0 ~ 6TB HDD)

External (e-SATA Interface)

USB (for Backup)

File Format (Backup)

BU (DVR player), SEC (Include player), AVI

Security

Password Protection

Admin, 10 group, 10 User per 1 group

Data Authentication

Watermark

Monitors

VGA

1 VGA (1920 x 1080, 1280 x 1024, 1280 x 720)

HDMI

1 HDMI (4K (3840 x 2160), 2K (2560 x 1440), 1920 x 1080, 1280 x 1024, 1280 x 720)

Spot Composite

BNC (1CH) ※ Included OSD on screen, Multi mode support

Audio

Inputs / Output

1CH line in / 1CH line out

Compression

G.711

Sampling Rate

8KHz

Alarm

Inputs / Output

Terminal 4 inputs (NO/NC) / Terminal 1 relay outputs (NO/NC)

Remote Notification

Notification Via e-mail

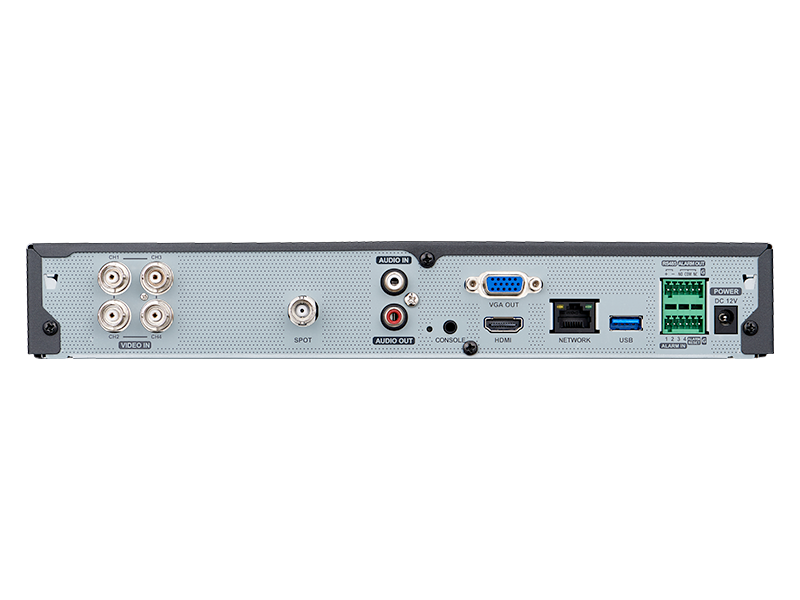

Connections

Ethernet

1 RJ45 10/100/1000 Base-T

Serial Interface

RS-485 (Half duplex) for PTZ, Samsung system keyboard

USB

1 ports (USB 3.0, Rear), 1 ports (USB 2.0, Front)

e-SATA

N/A

Application Support

Mouse, IR remocon

RS-485 Protocol

Samsung-E / Samsung-T / Pelco-D / Pelco-p / Panasonic / Phillips / AD / DIAMOND / ERNA / KALATEL / VCL TP / VICON / ELMO / GE

Coax Protocol

NTSC / PAL : Pelco-C (Coaxitron), AHD : ACP (AHD Coax Protocol)

Electrical

Input Voltage / Current

12V DC adaptor (100 ~ 250V AC ±10%, 50/60Hz)

Power Consumption

Max. 19W (1 x 4TB HDD)

Environmental

Operating Temperature

+0°C ~ +40°C (+32°F ~ +104°F)

Operating Humidity

20% ~ 85% RH

Mechanical

Dimensions (WxHxD)

300.0 x 48.0 x 208.7mm (11.81" x 1.88" x 8.21")

Weight (With hard disks)

Approx. 1.75Kg (3.86 lb) (with 4TB HDD)

LAUGUAGE

GUI

English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish,

Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia,

Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese

(Traditional), Thai , Taiwanese (25 Language)

Web Browser

English, French, German, Italian, Spanish, Russian, Turkish, Polish,

Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian,

Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese

(Simplified), Japanese, Thai (23 Language)
