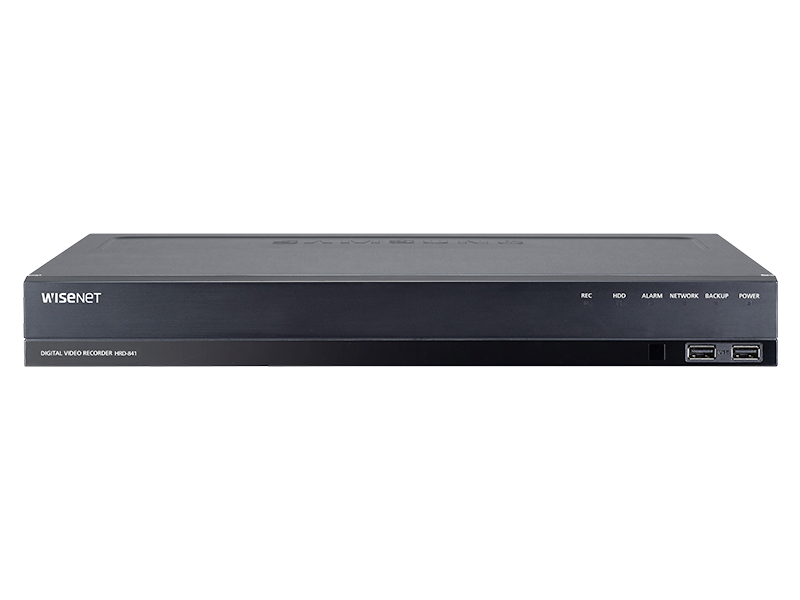

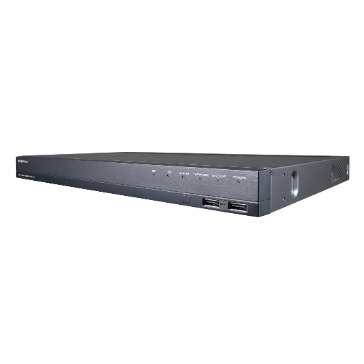

Samsung - HRD-841-6TB - 8CH 4M Analog HD DVR-6TB
8 Channel Analog HD DVR supporting up to 4 Megapixel resolution. Long retention with 2 hard drive bays supporting up to 12TB. Audio in / out capabiltiies, HDMI / VGA video output, and Coaxial PTZ camera controls make this an excellent choice as a recording solution for all of your security needs.
Part number:
HRD-841-6TB
Price:
Key Features:
- 8CH 4MP AHD DVR
- TVI, CVI (Max. 2MP), analog camera input
- Up to 120 / 100 (4MP)fps recording rate
- Up to 240 / 200 (1080p)fps recording rate
- HDMI / VGA video output
- 4CH audio input / 1CH audio output
- Up to 2 internal HDDs (Max.12TB)
- Coaxial cable (Pelco-C, ACP)
- Smartphone support
| Display | ||
|---|---|---|
| Analog camera | ||
| Inputs | 8CH(1Vp-p 75ohm, BNC) | |
| Signal Type | AHD(4MP, 1080p, 720p) HDTVI(1080p) HDCVI(1080p) CVBS(NTSC/PAL) |
|
| Live | ||
| Local Display | HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
|
| Resolution | 4MP(30/25fps), 2MP(30/25fps), 1MP(30/25fps), 960H(30/25fps), 720H(30/25fps) 960x576(30/25fps) per CH | |
| Performance | ||
| Record | ||
| Compression | H.264 | |
| Record Rate(Analog) | [Analog Camera(NTSC/PAL)] 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, SD 30/25fp per CH |
|
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Time lapse (1~30 fps(N), 1~25fps(P)) | |
| Event Trigger | Video Loss, Motion(Level 1~10), Alarm Input(16), Tampering(Level Low,Medium, High) | |
| Event Action | E-mail, Alarm out, Buzzer | |
| Search & Play | ||
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | 8CH(Local Monitor) | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 2ea(Max 12TB) | |
| Backup | ||
| File backup | BU, SEC, AVI | |
| Function | Multi channel(Upto 8CH) Play, Date-Time/Title display | |
| Functions | ||
| PTZ | ||
| Control | Via GUI, Webviewer, Smart Viewer, Wisenet Mobile Viewer, System Controller |
|
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP | |
| Control | Live(8ch) : Multi-Profile Support Playback(1Ch) |
|
| Max. Remote Users | Search(1), Live Unicast(10) | |
| Coaxial Control | CVBS(Pelco-C)/AHD | |

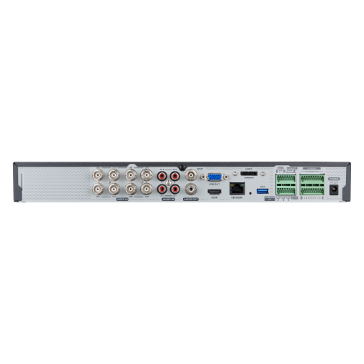

| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| BNC | 8CH In / 1CH Out(Spot Output) | |
| e-SATA | 1EA | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Alarm | In 8EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) |
|
| USB | 3EA(Front 2, Rear 1) | |
| Serial(Protocols) | RS-485 (Samsung-E/Samsung-T/Pelco-D/Pelco-p/Panasonic/ Phillips/ AD/ DIAMOND/ ERNA/ KALATEL/ VCL TP/VICON/ ELMO/GE) * for PTZ | |
| Power inlet | 1EA DC Input Jack | |
| System | ||
| System Control | Mouse, Remote Controller, Web Viewer, System controller(SPC-7000, SPC-6000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Chinese(Traditional) | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC | |
| Electrical | ||
| Power Input | DC12V Adaptor(100~250V AC ±10% , 50/60Hz) | |
| Power Consumption | Max. 23W (3T HDD 1ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | W370.0x H44.0 xD320(14.57” x 1.73” x12.6”) | |
| Weight | 3.4Kg (7.5lb) (3TB HDD 1ea) | |
| Network | ||
| Protocol | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP | |
| DDNS | Wisenet DDNS | |
| Transmission speed | [Analog Camera(NTSC/PAL)] - Main Stream: 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, SD 30/25fp per CH - Sub Stream) WD1/4CIF : 12fps/CH, 2CIF/CIF : 30fps/CH(N), 25fps/CH(P) |
|
| Transmission Bandwidth | Max. 64Mbps | |
| Audio | ||
| Input/Output | 4 CH / 1 CH | |
| Compression | G.711 | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | User access Log, Watermark | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile | |
