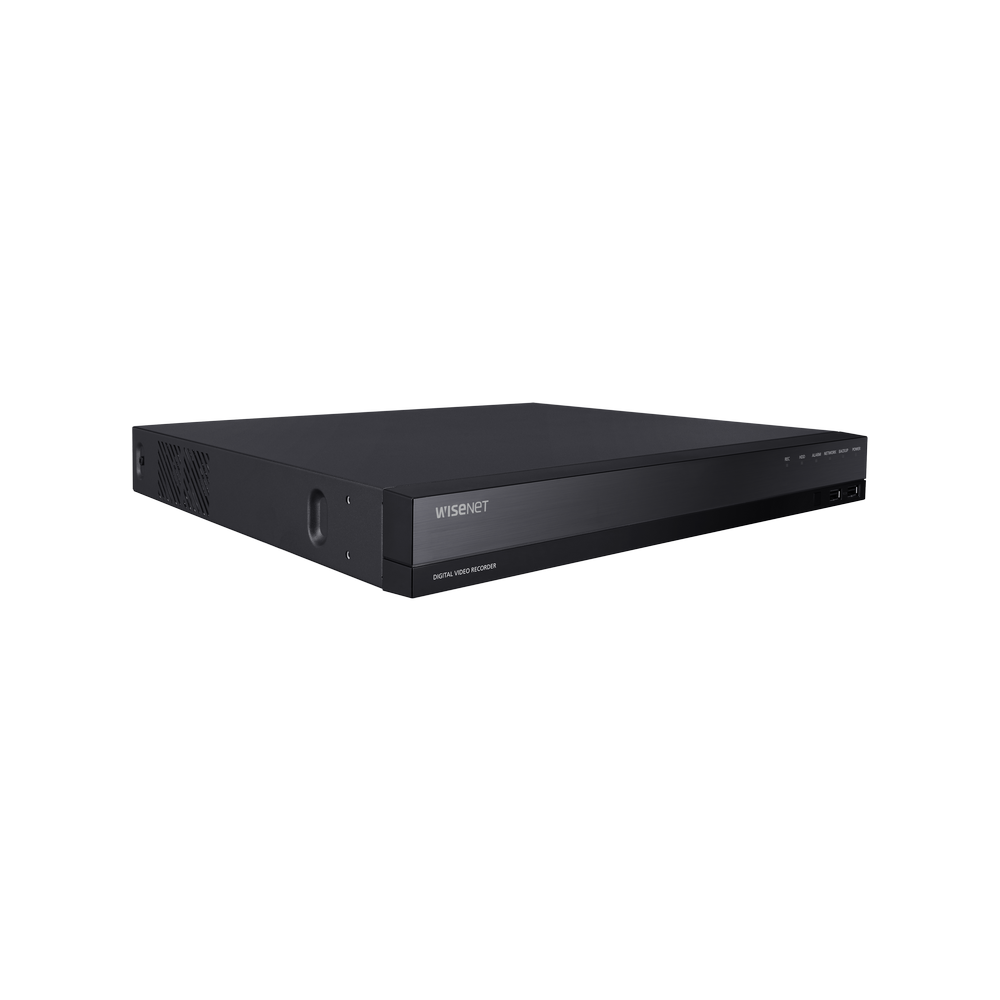

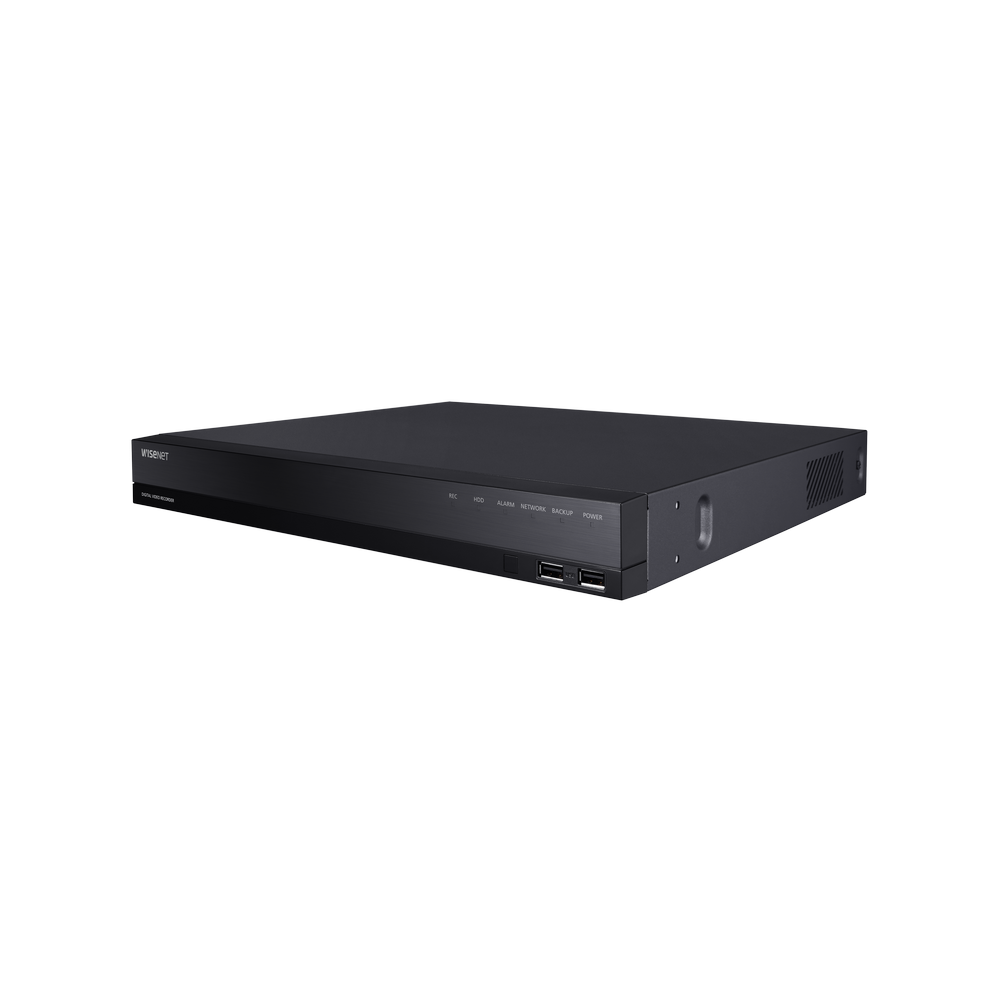

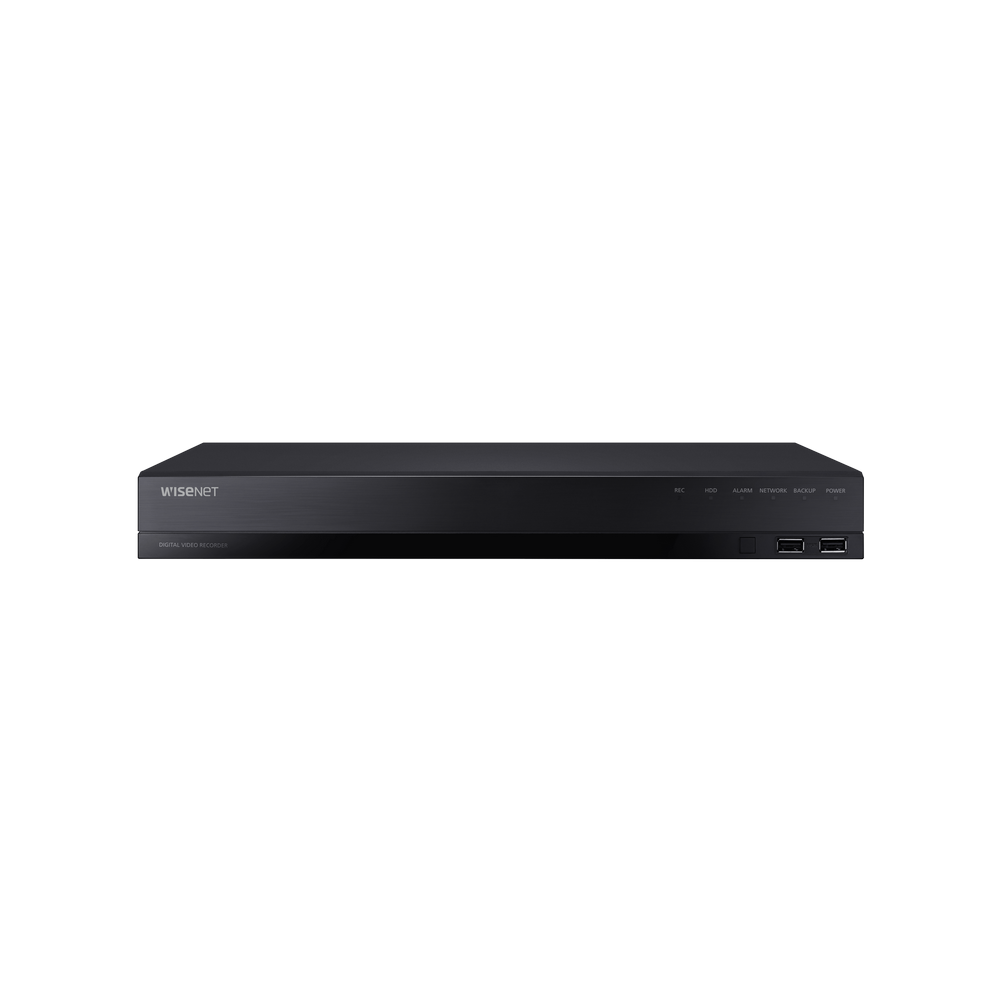

Hanwha - HRX-1634-6TB - 5-in-1 16CH Pentabrid DVR- 6TB Raw Storage, AHD, HDTVI, HDCVI

Product Overview

The Hanwha HRX-1634-6TB is an NDAA and FCC-compliant 16-channel Pentabrid DVR featuring 6TB of pre-installed storage (expandable to 12TB across two SATA bays) and supporting up to 18 total channels across mixed AHD, HDTVI, HDCVI, CVBS, and IP cameras. It records at frame rates up to 8MP at 15/12 fps, 5MP at 20/12 fps, and 4MP down to 960H at up to 30/25 fps per channel, utilizing a 128 Mbps recording bandwidth and a 32 Mbps playback bandwidth over H.265, H.264, and MJPEG formats.

Key Configuration

• • Analog inputs: 16 × BNC (1Vp-p 75Ω); signal types: AHD, HDTVI, HDCVI (up to 8MP), CVBS (NTSC/PAL)
• • Network camera inputs: up to 2 channels (total system up to 18CH); resolution: 8MP to CIF; protocols: SUNAPI (Wisenet), ONVIF
• • HDD bays: 2 × SATA, up to 6TB per HDD (max 12TB); 6TB pre-installed
• • Recording bandwidth: 128 Mbps; playback bandwidth: 32 Mbps (18 channels simultaneously)
• • Dimensions: 370 × 44 × 320 mm (14.57" × 1.73" × 12.6"); weight: approx. 4.5 kg (9.9 lb with 4TB HDD)

Key Features

This unit features simultaneous HDMI (up to 4K) and VGA output, a BNC spot monitor, and up to 18-channel simultaneous playback with CMS-based network fisheye dewarping. Analog recording scales from 8MP at 8 fps up to 2MP/720p/960H at 30/25 fps per channel, controlled via Pelco-C, AHD, CVI, TVI coaxial protocols, or RS-485. System events triggered by video loss, motion, tampering, or network camera analytics initiate automatic emails, push notifications, PTZ presets, or alarm activations. Physical connectivity includes 4 RCA audio inputs and 1 output for two-way communication, 16 alarm inputs, 4 relay outputs, three USB ports, and a P2P QR code interface for simple Wisenet Mobile app pairing.

Technical Context

Powered by a DC12V input with a 40W maximum draw (including two 6TB HDDs), this black metal unit operates between 0°C to 40°C (32°F to 104°F) and holds UL, CE, FCC, KC, and UKCA certifications. It utilizes TCP/IP, ONVIF Profile-S, and SUNAPI protocols to support up to 10 unicast, 20 multicast, and 3 remote search users simultaneously. Web configuration is compatible with Windows 10 and macOS 11 via Chrome, Edge, or Safari. Security is managed through IP filtering, user logs, 802.1x authentication, data encryption, and a Hanwha Techwin Root CA certificate.

Installation Notes

Measuring 370 × 44 × 320 mm (14.57" × 1.73" × 12.6") and weighing roughly 4.5 kg (9.9 lb), this DC12V-powered unit features dual SATA bays with a 6TB HDD pre-installed (supporting up to 12TB total). It provides simultaneous HDMI and VGA display outputs, a dedicated BNC spot monitor output, and USB mouse support for GUI navigation. For PTZ camera management, the device includes an RS-485 interface, coaxial control, and a P2P QR code for quick mobile app connection.
