Hanwha - HRX-1634 - 16 Channel Pentabrid DVR, AHD, HDTVI, HDCVI

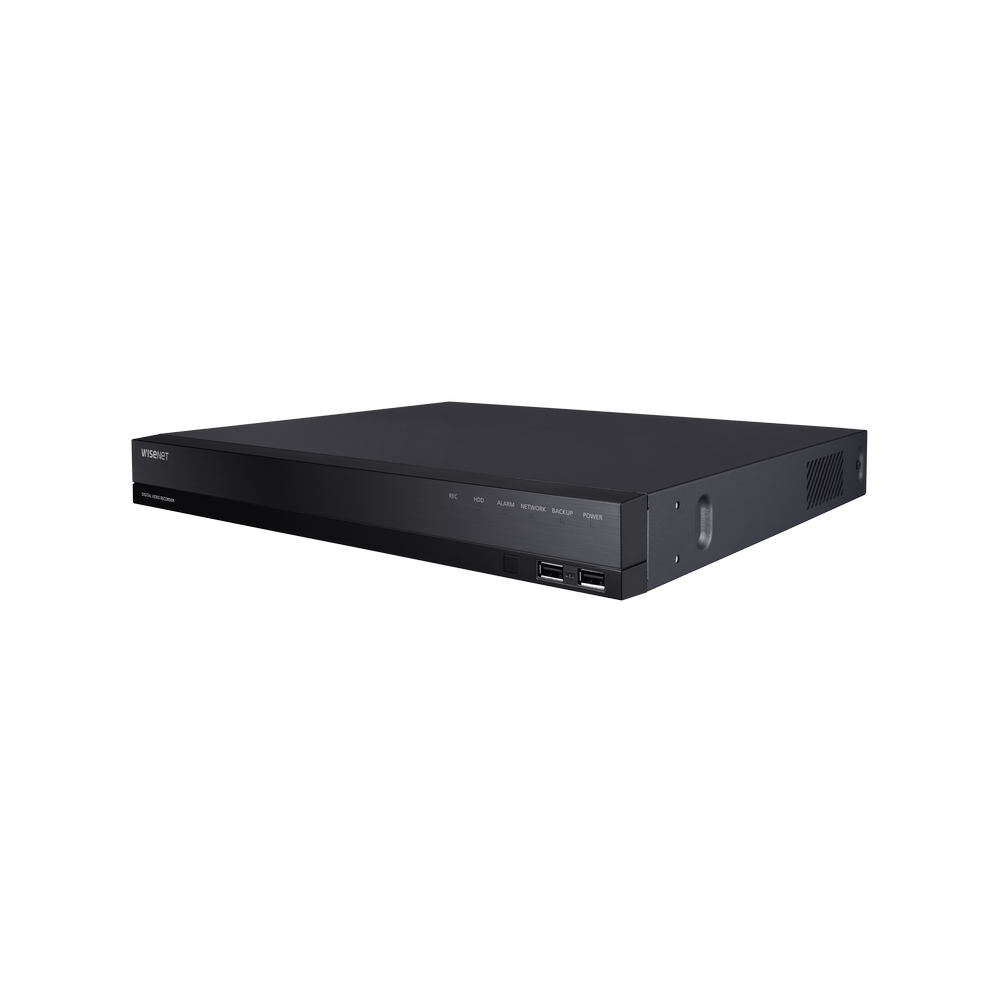

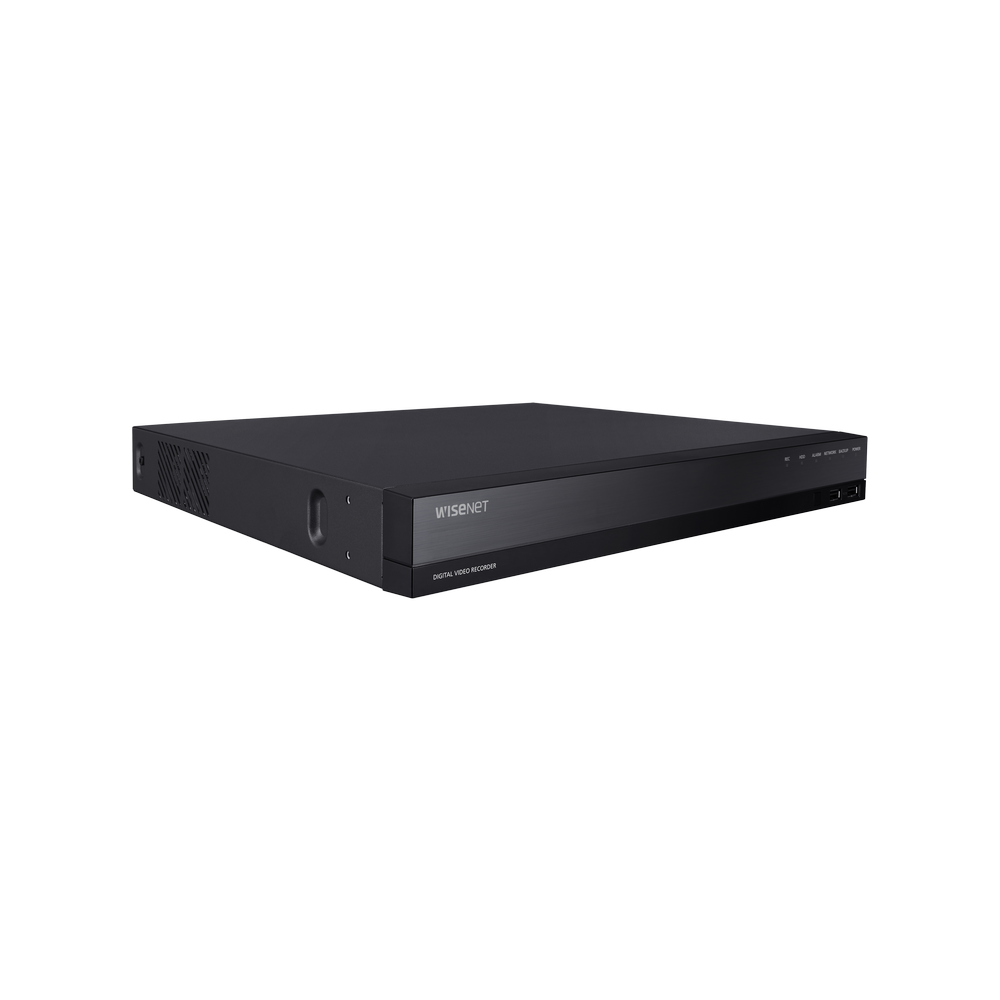

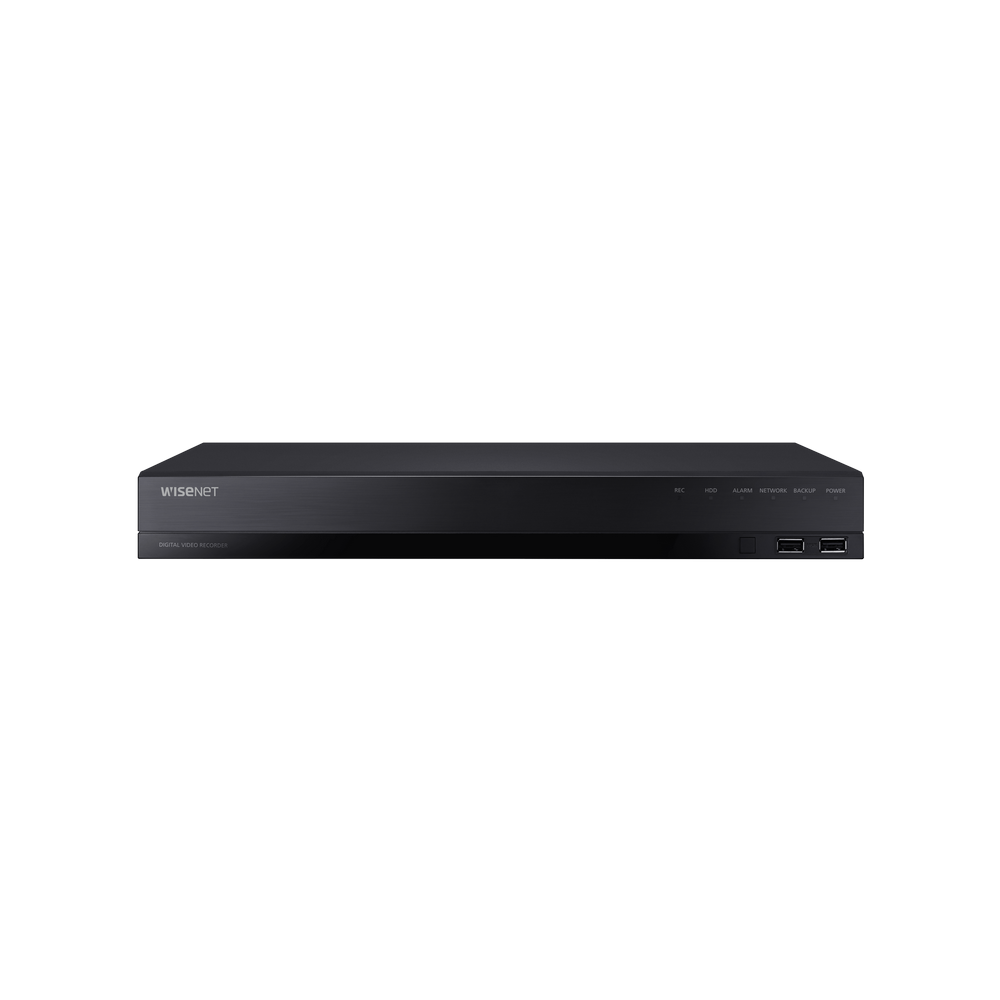

Product Overview

The Hanwha HRX-1634 is an NDAA and FCC-compliant 5-in-1 16-channel Pentabrid DVR that accommodates up to 18 total channels across mixed AHD, HDTVI, HDCVI, CVBS, and IP inputs. It records at frame rates up to 8MP at 15/12 fps, 5MP at 20/12 fps, and 4MP down to 960H at up to 30/25 fps per channel, utilizing a 128 Mbps recording bandwidth and a 32 Mbps playback bandwidth over H.265, H.264, and MJPEG formats. Physical interfaces include 4 audio inputs, 1 audio output, 16 alarm inputs, 4 relay outputs, and coaxial control, alongside dual HDMI/VGA local video outputs delivering up to 4K resolution and an independent spot monitor output. Lastly, the unit features a P2P QR code interface for direct mobile application pairing and houses up to 2 SATA HDD bays supporting a maximum storage capacity of 12TB.

Key Configuration

• • Analog inputs: 16 × BNC (1Vp-p 75Ω); signal types: AHD, HDTVI, HDCVI (up to 8MP), CVBS (NTSC/PAL)
• • Network camera inputs: up to 2 channels (total system up to 18CH); resolution: 8MP to CIF; protocols: SUNAPI (Wisenet), ONVIF
• • HDD bays: 2 × SATA, up to 6TB per HDD (max 12TB total)
• • Recording bandwidth: 128 Mbps; playback bandwidth: 32 Mbps (18 channels simultaneously)
• • Dimensions: 370 × 44 × 320 mm (14.57" × 1.73" × 12.6"); weight: approx. 4.5 kg (9.9 lb with 4TB HDD)

Key Features

This system provides simultaneous HDMI (up to 4K) and VGA output, a BNC spot monitor output, and diverse recording modes across a maximum of 18 simultaneous playback channels with CMS-based network fisheye dewarping. Analog recording scales from 8MP at 8 fps up to 2MP/720p/960H at 30/25 fps per channel, managed via Pelco-C, AHD, CVI, TVI coaxial protocols, or RS-485. System events triggered by video loss, sensors, or camera analytics initiate automatic emails, PTZ presets, or alarm relay activations. Hardware connectivity includes 4 RCA audio inputs, 1 line output for two-way audio, 16 alarm inputs, 4 relay outputs, three USB ports, and P2P QR code pairing for the Wisenet Mobile app.

Technical Context

Powered by a DC12V input with a 40W maximum draw (including two 6TB HDDs), this black metal unit operates between 0°C to 40°C (32°F to 104°F) and holds UL, CE, FCC, KC, and UKCA certifications. It utilizes TCP/IP, ONVIF Profile-S, and SUNAPI protocols to support up to 10 unicast, 20 multicast, and 3 remote search users simultaneously. Web configuration is compatible with Windows 10 and macOS 11 via Chrome, Edge, or Safari. Security is managed through IP filtering, user logs, 802.1x authentication, data encryption, and a Hanwha Techwin Root CA certificate.

Installation Notes

Measuring 370 × 44 × 320 mm (14.57" × 1.73" × 12.6") and weighing roughly 4.5 kg (9.9 lb), this DC12V-powered unit features 2 SATA HDD bays supporting up to 12TB total storage. It provides dual HDMI/VGA display outputs, a dedicated BNC spot monitor output, and supports GUI navigation via a USB mouse. For camera management, it incorporates RS-485 interfaces, coaxial PTZ control, and a P2P QR code for quick mobile application pairing.
