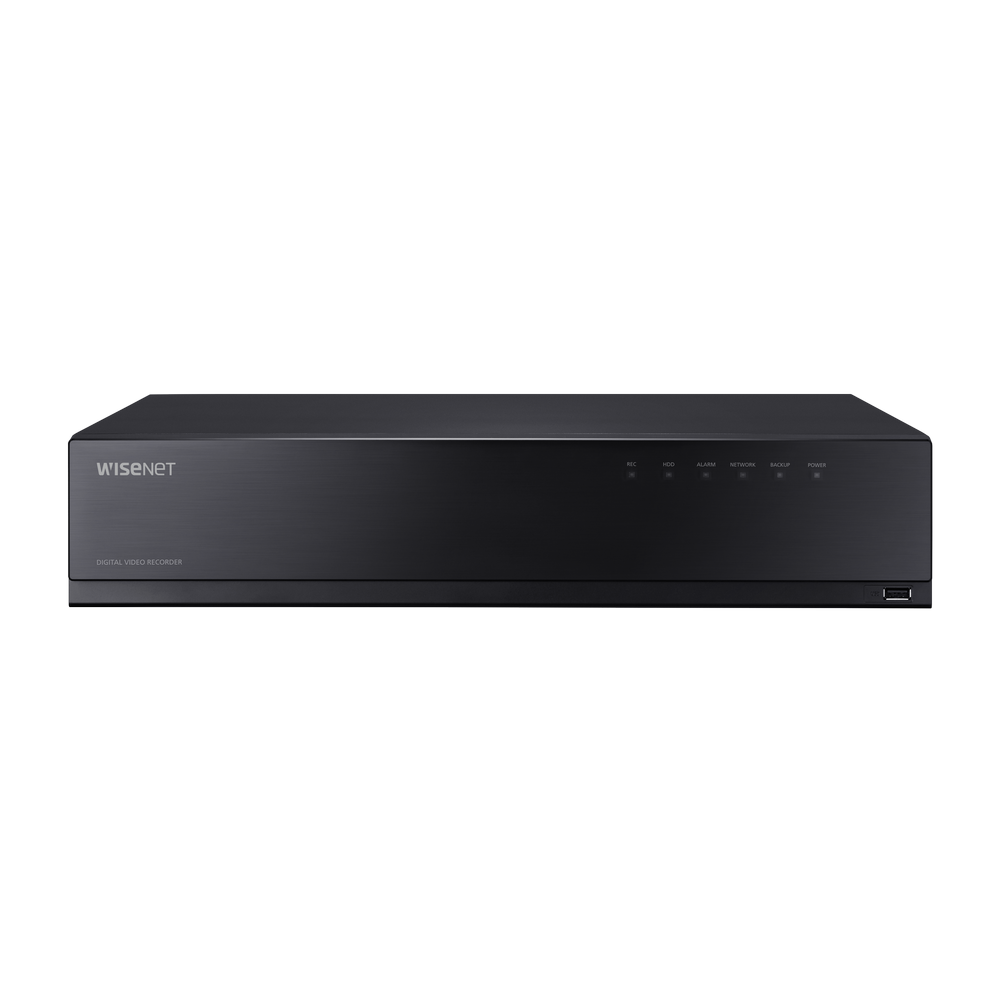

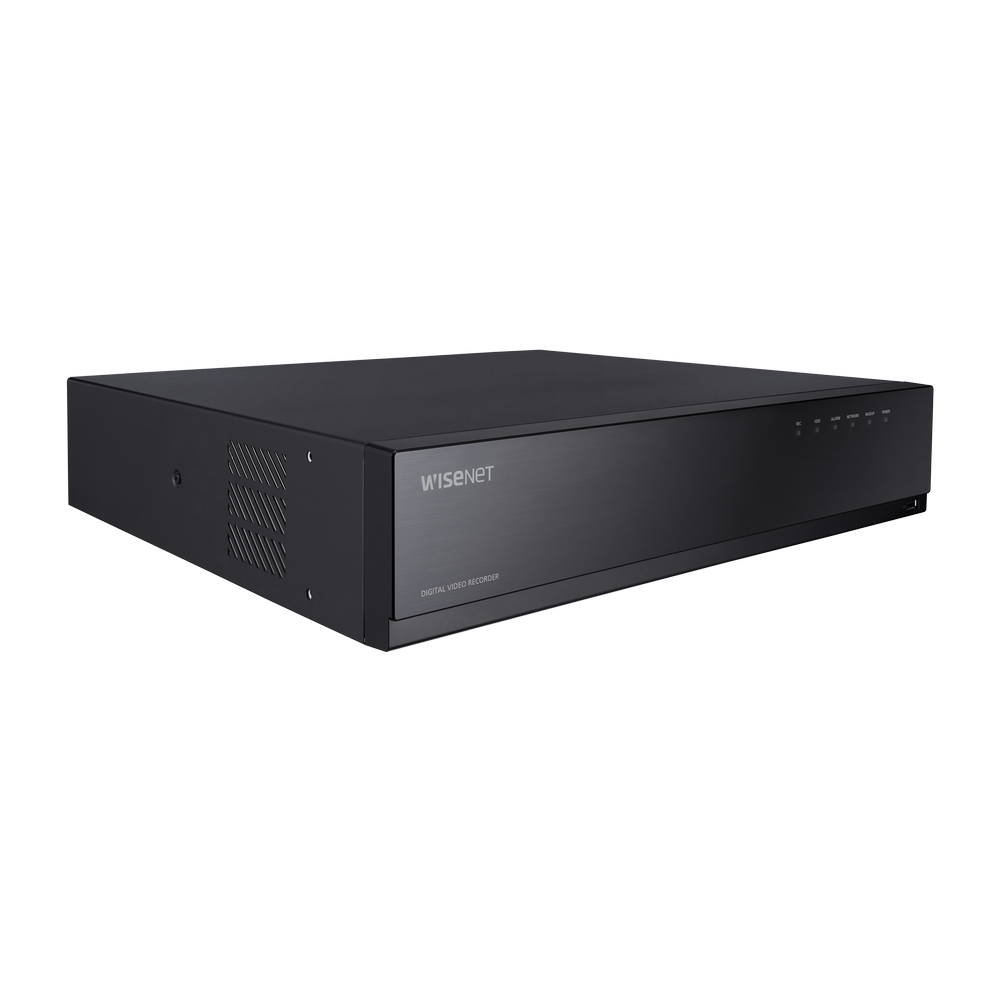

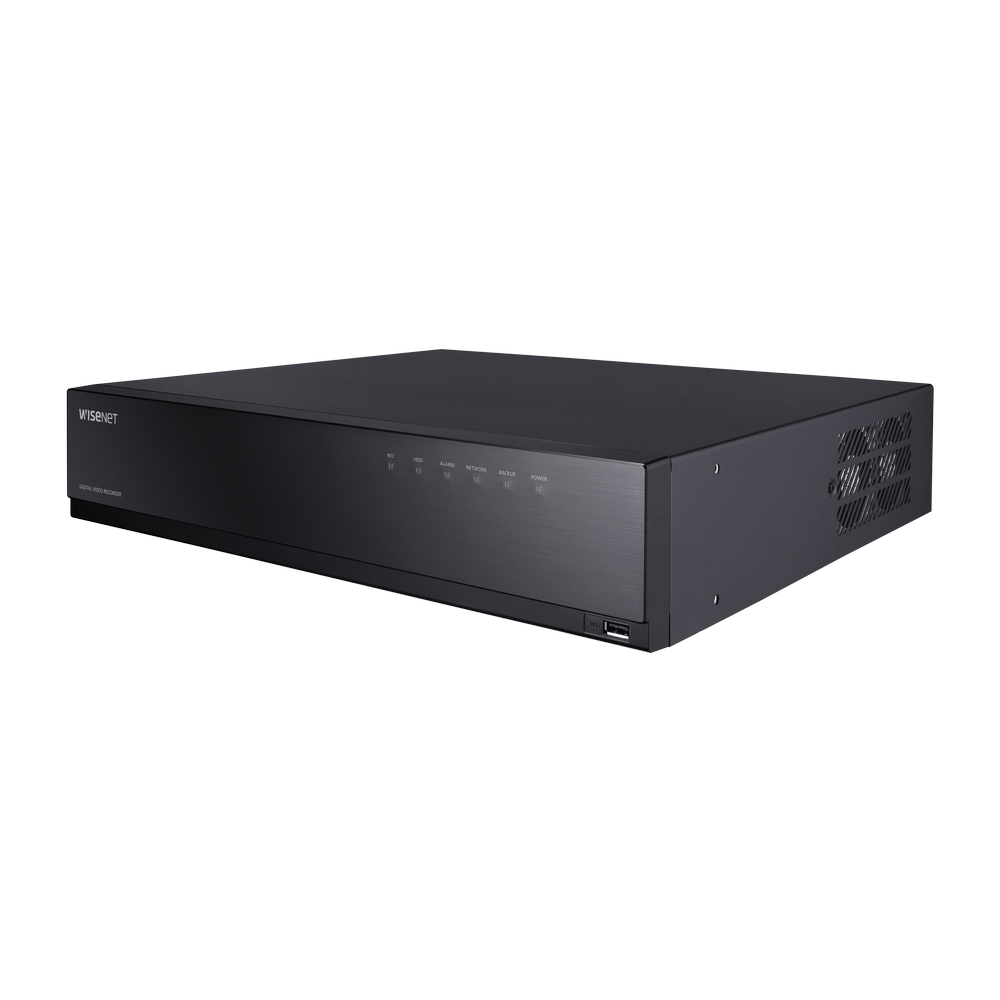

Hanwha - HRX-1635 - 5-in-1 16CH Pentabrid DVR, AHD, HDTVI, HDCVI Up To 8MP

Product Overview

The HRX-1635 is an NDAA and FCC-compliant 16-channel Pentabrid DVR that supports up to 8MP recording across AHD, HDTVI, HDCVI, CVBS, and IP inputs. It accommodates up to 18 channels total (16 analog and 2 network) with recording speeds up to 15 fps at 8MP, 20 fps at 5MP, and 30 fps at 4MP/2MP. Utilizing H.265, H.264, and MJPEG compression, it handles 128 Mbps recording and 32 Mbps playback bandwidth. The high-capacity storage architecture features 8 SATA HDD bays supporting up to 48TB total (6TB per drive). I/O connectivity includes 4 audio inputs/1 output, 16 alarm inputs/4 relay outputs, dual HDMI/VGA main outputs, and an independent spot monitor output, with support for coaxial control and quick P2P QR-code mobile setup.

Key Configuration

• • Analog inputs: 16CH BNC (1Vp-p, 75Ω); signal types: AHD, HDTVI, HDCVI (up to 8MP), CVBS, NTSC/PAL
• • Network camera inputs: up to 2CH (total system up to 18CH); resolution: 8MP to CIF
• • HDD bays: 8 × SATA, up to 6TB per HDD (max 48TB total)
• • Recording bandwidth: 128 Mbps; playback bandwidth: 32 Mbps (18CH simultaneous)
• • Dimensions: 440 × 88 × 384.8 mm (17.32" × 3.46" × 15.15"); weight: approx. 7.70 kg (17 lb) with 4TB HDD

Key Features

Dual monitors are supported via HDMI (up to 4K) and VGA outputs, alongside a BNC spot monitor feed and PTZ/coaxial control accessible via GUI, web, VMS, or mobile apps. For rapid remote deployment, an integrated P2P service utilizes QR code configuration for immediate mobile app connectivity. System recording supports scheduled, dual-stream, and bookmarking modes with SD card backup. Flexible event rules link alarm inputs, video loss, or camera-side analytics (motion, tampering, defocus, audio) to automated actions like email alerts, push notifications, buzzer activation, FTP uploads, SUNAPI commands, and PTZ preset switching, while CMS software handles fisheye dewarping for connected IP cameras.

Technical Context

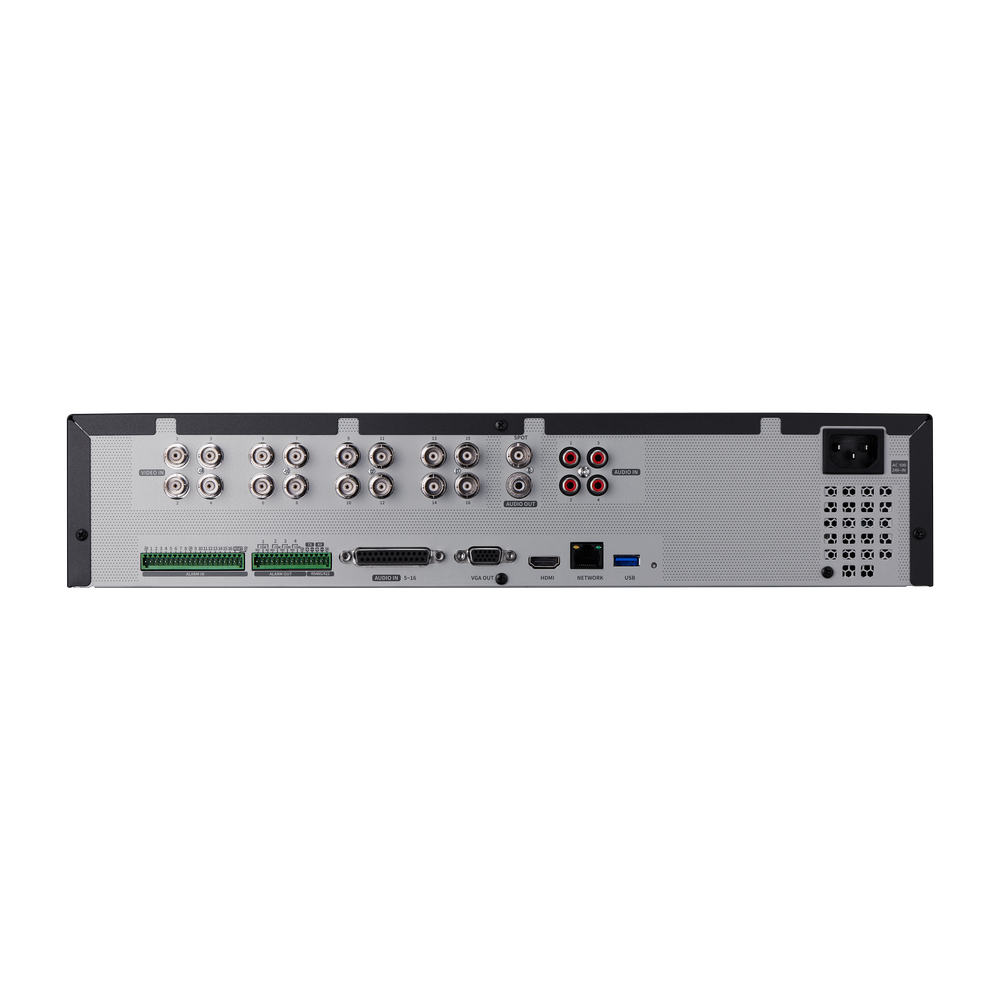

The DVR features an expansive network architecture supporting major protocols, including TCP/IP, ONVIF Profile S, and SUNAPI server/client integrations, alongside comprehensive audio processing via 4 RCA line inputs and a single output with two-way G.711/G.726 audio support. The hardware includes a front USB 2.0 and rear USB 3.0 port, RS-485/422 serial connectivity for analog PTZ control (Samsung-T/Pelco-D/P), and a high-capacity alarm array featuring 16 inputs and 4 relay outputs (including a dedicated NO/NC/COM relay). Globally certified by UL, CE, FCC, KC, and UKCA, the black metal chassis operates on a 100–240 VAC power supply with a maximum consumption of 200W when fully populated with eight 6TB hard drives.

Installation Notes

Measuring 440 × 88 × 384.8 mm and weighing 7.70 kg (with a 4TB HDD), this DVR operates from 0°C to 40°C under 20–85% RH. It features dual HDMI/VGA outputs, a BNC spot monitor, and PTZ management via coaxial control or P2P QR-code mobile setup. Storage is driven by 8 SATA HDD bays supporting up to 6TB per drive.
