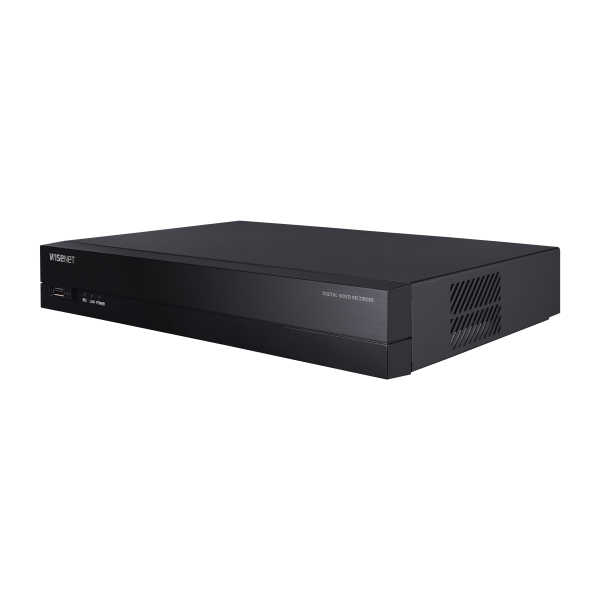

Hanwha - HRX-434-2TB - 4 Channel Pentabrid DVR, 2TB

Product Overview

The Hanwha HRX-434-2TB Wisenet HD+ Pentabrid DVR provides 2TB of storage and manages up to 6 channels (max 4 analog / 6 IP). It handles AHD/TVI (up to 8MP), CVI (up to 5MP), CVBS, and 8MP IP inputs, recording at 8 fps @ 8MP or 12 fps @ 5MP using H.265/H.264/MJPEG. Bandwidth capabilities reach 30 Mbps for recording and 32 Mbps for playback. Core features include dual HDMI/VGA monitoring, an independent spot output, coaxial telemetry control, P2P QR-code mobile setup, and one SATA bay expandable to 6TB.

Key Configuration

• • Analog inputs: 4 × BNC (1Vp-p 75Ω); signal types: AHD, HDTVI (up to 8MP), HDCVI (up to 5MP), CVBS (NTSC/PAL)
• • Network camera inputs: up to 6 channels (total system up to 6CH); resolution: 8MP to CIF; protocols: SUNAPI (Wisenet), ONVIF
• • HDD: 1 × SATA bay, up to 6TB; 2TB pre-installed
• • Recording bandwidth: 30 Mbps; playback bandwidth: 32 Mbps
• • Dimensions: 300 × 47 × 208.7 mm (11.85" × 1.89" × 8.22"); weight: approx. 1.5 kg (3.30 lb with 4TB HDD)

Key Features

Supporting simultaneous HDMI (up to 4K) and VGA outputs plus a BNC spot monitor, this unit handles manual, scheduled, and pre/post-event recording across 6 local or 4 remote playback channels, secured by ARB failover. It features 4 alarm inputs, 1 relay output, and two-way G.711 audio. System actions, such as emails, PTZ presets, and buzzer alerts, are triggered by physical I/O or camera analytics (tampering, motion, line crossing, face, or defocus detection). Telemetry and management are accessible via multi-platform software, system controllers, P2P QR-code mobile pairing, or coaxial control (Pelco-C/AHD/CVI/TVI), with web/CMS interfaces providing fisheye dewarping.

Technical Context

This IP cameras up to 2MP at 120 fps and is ONVIF Profile-S/SUNAPI conformant, operating over standard network protocols with a maximum capacity of 3 search, 10 live unicast, and 20 multicast remote users. Security provisions include IP filtering, access logs, 802.1x authentication, device certificates, and full data encryption for IDs, transmission, recording, and backups. Housed in a black metal chassis, the system allows web viewing via Chrome, Edge, or Safari on Windows 10 and macOS 11, and carries UL, CE, FCC, and KC certifications.

Installation Notes

Measuring 300 × 47 × 208.7 mm and weighing approximately 1.5 kg, this unit features a black metal chassis equipped with one SATA HDD bay (up to 6TB) and dual HDMI/VGA display outputs plus a BNC spot monitor output. It supports coaxial telemetry and RS-485 interfaces for PTZ control, P2P QR-code mobile pairing, and a 12V DC power input with a maximum consumption of 22W (including a 6TB HDD). Environmental tolerances range from 0°C to 40°C with 20% to 85% RH.
