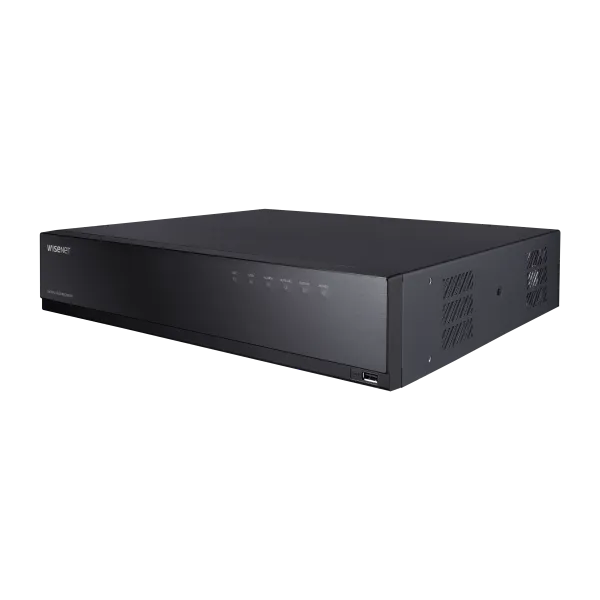

Hanwha - HRX-835-6TB - 8CH AHD, TVI, CVI, CVBS, IP Recorder with 6TB HDD
Part number:
HRX-835-6TB
Price:
Wisenet HD+ Pentabrid DVR AHD (up to 8MP), - 6TB Raw Storage.TVI (up to 8MP), CVI (up to 5MP), CVBS and IP (up to 8MP), Max. Analog 8CH + NW 10CH, up to 8MP, 8/8fps@8MP, 12/12fps@5MP recording (frame rate at higher resolutions will vary), triple codec H.265/H.264/MJPEG, Recording Bandwitth Max. 50Mbps, Playback Bandwith 32Mbps. 8CH audio input/ 1CH audio output, 8 alarm input and 4 relay output, coaxial control, HDMI/VGA video output, 1 X spot monitor output, QR code , Up to 4 SATA HDDs (6TB/HDD)
Features :
- 5-in-1 8CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 10CH (Analog Max. 8CH and Network Max. 8CH supported), up to 8MP
- H.265, H.264, MJPEG codec
- 8/8fps@8MP, 12/12fps@5MP recording
- Coaxial control
- Up to 4 SATA HDDs(6TB/HDD)
- HDMI/VGA Dual monitor
- P2P service (QR code connect)
| Display | ||
| Analog camera | Inputs | 8CH(1Vp-p 75ohm, BNC) |
| Signal Type | AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) | |
| Network camera | Inputs | Max. 10CH |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI(Wisenet), ONVIF | |
| Live | Local Display | 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1044, 1280x720 (Expand mode 1920x1080) VGA: 1920x1080, 1280x1024, 1280x720 (Expand 1024*768) |
| Resolution | [Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - Typ. 2MP(240fps) | |
| Performance | ||
| Record | Compression | H.265, H.264, MJPEG |
| Record Rate(Analog) | Analog Camera (Main Stream) 8MP 8/8fps CH, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, 960H/640H 30/25fps(NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : upto CIF full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. | |
| Recording Bandwidth | Max. 50Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track | |
| Event Trigger | Alarm Input Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event, Dynamic camera event | |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out | |
| Search & Playback | Playback Bandwidth | Max. 32Mbps (10CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | 10CH(Local Monitor), 8CH(CMS), 4CH(Wisenet Mobile) 1CH(Web) | |
| Fisheye Dewarping | WEB / CMS | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 4ea(Max 24TB) | |
| Backup | File backup | BU, EXE(Include Player), AVI(Webviewer only) |
| Function | Max. 10 CH play, Date-time/title display | |
| Functions | ||
| PTZ | Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(8ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ARB | Support |
| Easy configuration | Setup Wizard (Language, Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) | |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI | |
| HDMI | 1EA | |
| VGA | 1EA | |
| BNC | 8CH In / 1CH Out(Spot Output) | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Alarm | In 8EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) | |
| USB | 2EA(Front USB2.0, Rear USB 3.0)) | |
| Serial(Protocols) | RS-485/422 (Samsung-T/Pelco-D/Pelco-p) * for PTZ | |
| Power inlet | 1EA AC | |
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC | |
| Power Input | 100~240 VAC±10%, 50/60 Hz | |
| Power Consumption | Max. 120W (6T HDD 4ea) TBD | |
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440 x 88 x 384.8mm(17.32” x 3.46” x 15.15”) | |
| Weight | Approx. 4.6Kg (10.14 lb, 4TB HDD 1ea) | |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Transmission speed | Analog Camera (Main Stream) 8MP 8/8fps CH, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, 960H/640H 30/25fps(NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : upto CIF full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. | |
| Transmission Bandwidth | Max. 64Mbps | |
| Audio | Input/Output | 8 Line in / 1 Line out |
| Compression | G.711 (N/W Cam G.711, 726) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Techwin Root CA) | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS | |
