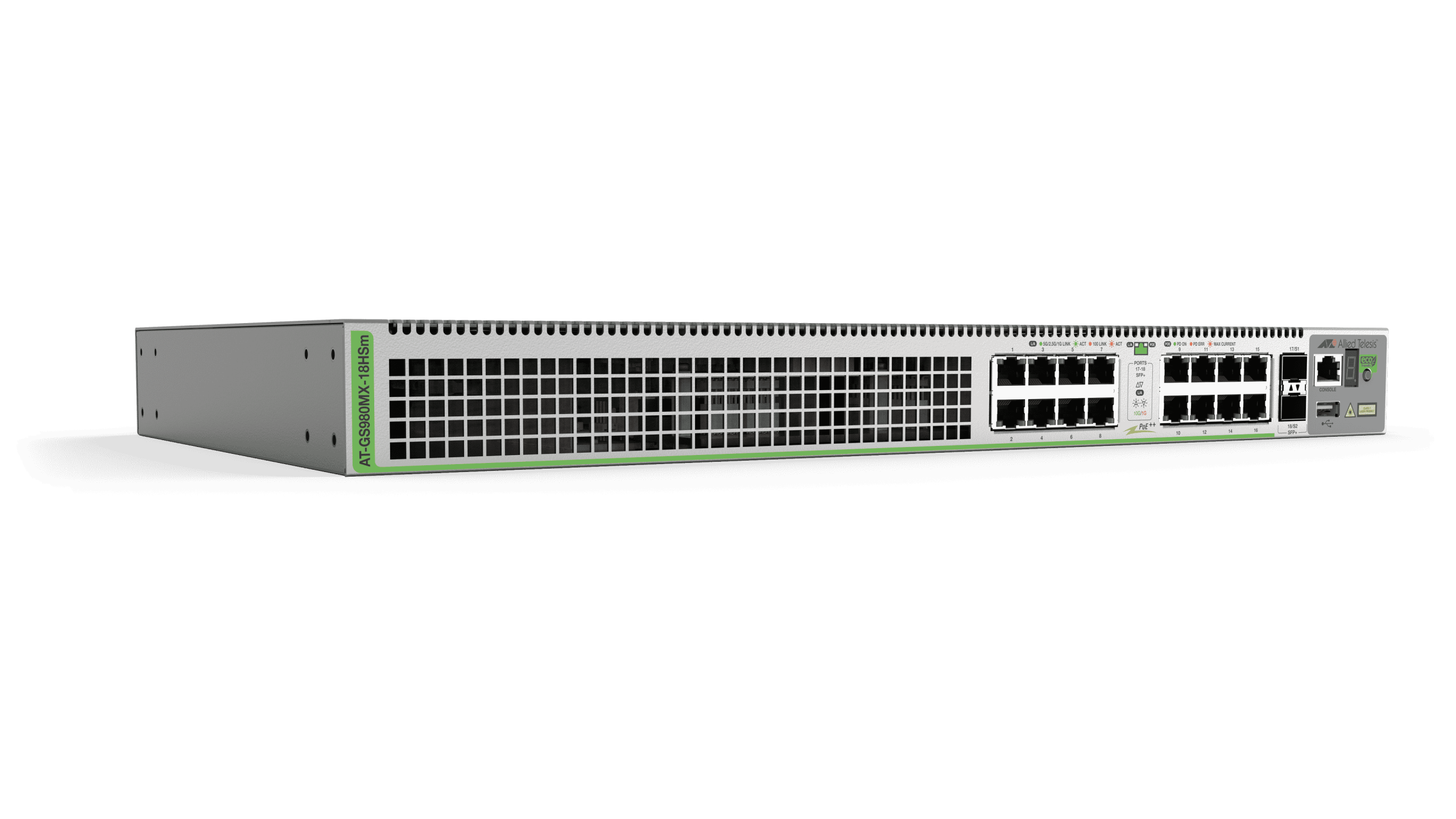

Hanwha - HV-GS980MX/18HSm - L3 Stackable Switch, 16x 100M/1/2.5/5G-T PoE++
Part number:
Price:
- • L3 Stackable Switch by Allied Telesis, 16x 100M/1/2.5/5G-T PoE++
- • 2x SFP+ ports and a single fixed PSU
- • US Power Cord
- • Optimized to use with Hanwha network camera products
| Physical Ports | |
|---|---|
| Copper Ports | 16 x 100M/1/2.5/5G Multi-Gigabit RJ-45 (PoE++) |
| Fiber Uplink Ports | 2 x 1/10 Gigabit SFP+ Uplinks |
| Stacking Ports | 2 x Stacking Ports (any port can be used) |
| Power over Ethernet (PoE) | |
| Max PoE Budget | 720W |
| Standards | PoE (15.4W), PoE+ (30W), PoE++ (60W & 90W) |
| Capability | All 16 ports can supply PoE/PoE+; up to 8 ports can supply 90W PoE++ |
| Performance | |
| Switching Fabric | 200 Gbps |
| Forwarding Rate | 148.8 Mpps (Million packets per second) |
| Physical Characteristics | |
| Dimensions (W x D x H) | 441 x 256 x 44 mm (17.36 x 10.07 x 1.73 in) |
| Weight (Unpackaged) | 4.3 kg (9.48 lbs) |
| Mounting | Rack-mountable and Wall-mountable |
| Power & Environmental | |
| Power Consumption (Max) | 86W (no PoE load), 970W (full PoE load) |
| Heat Dissipation | 293 BTU/h (no PoE), 3,317 BTU/h (full PoE) |
| Operating Temperature | 0° to 50°C (32° to 122°F) |
