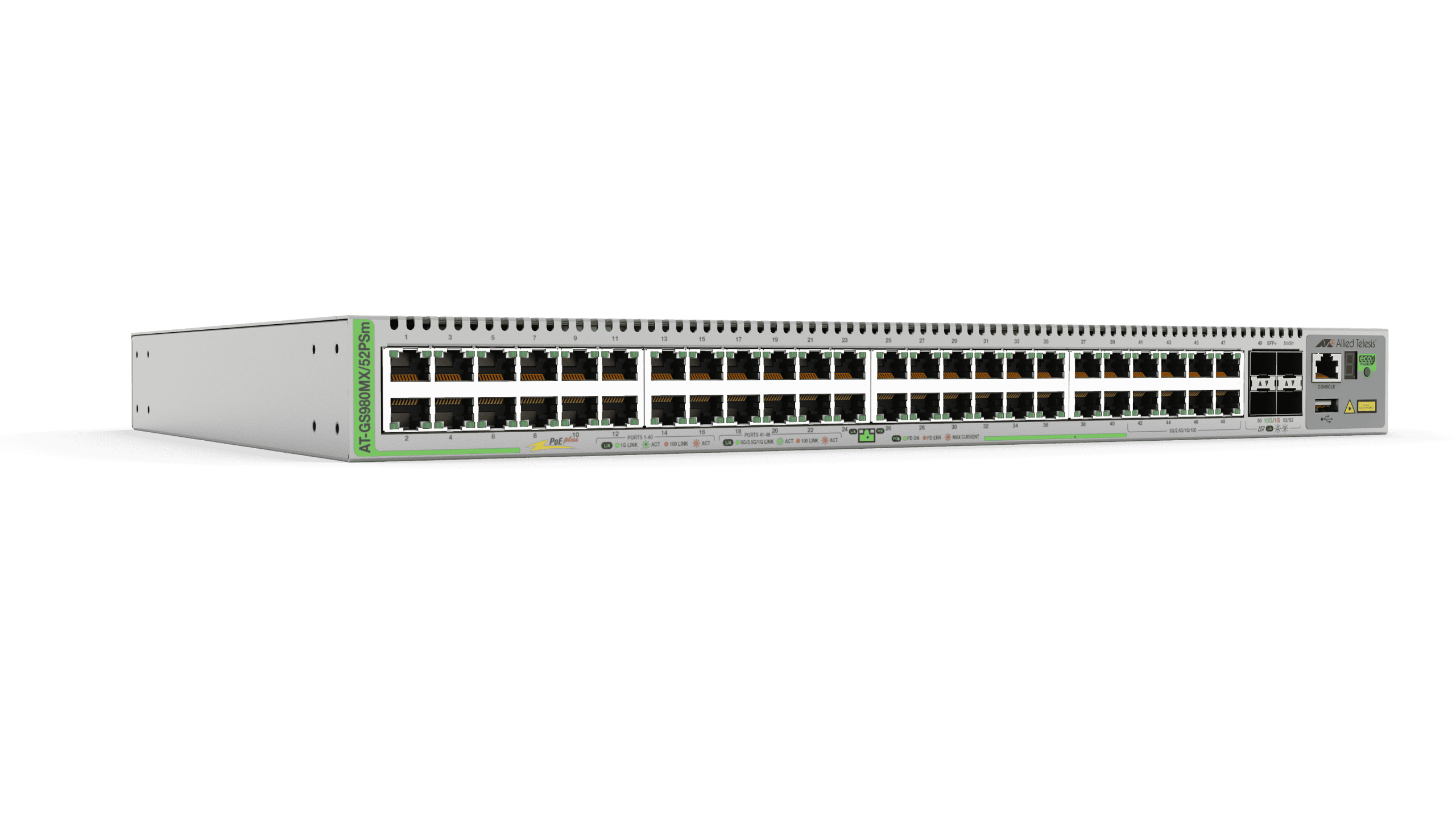

Hanwha - HV-GS980MX/52PSm -10 - L3 Stackable Switch, 40x 10/100/1000-T PoE+
Part number:
Price:
• L3 Stackable Switch 40x 10/100/1000-T PoE+
• 8x 100M/1G/2.5G/5G-T PoE+
• 4x SFP+ Ports and a single fixed PSU
• US Power Cord
• Optimized to use with Hanwha network camera products
| Copper Ports | 40 x 10/100/1000BASE-T (PoE+) + 8 x 100M/1/2.5/5G BASE-T (PoE+) |
| Fiber Uplink Ports | 4 x 1/10 Gigabit SFP+ |
| Stacking Ports | 2 (Any port can be used for stacking) |
| Switching Fabric | 240 Gbps |
| Forwarding Rate | 179 Mpps (Million packets per second) |
| Max PoE Budget | 370 Watts |
| PoE Capabilities | 48 PoE-enabled ports supporting 15.4W PoE and 30W PoE+ |
| Physical (W x D x H) | 441 x 421 x 44 mm (17.36 x 16.57 x 1.73 in) |
| Weight | 6.1 kg (13.5 lb) |
| Power Consumption | ~95W (no PoE load), ~530W (full PoE load) |
Name
Description
Size
Downloads
File
A&E Specifications
0.1mb
File
Datasheet
0.6mb
File
Getting Started Guide
0.8mb
File
Novice Guide Networking
0.6mb
