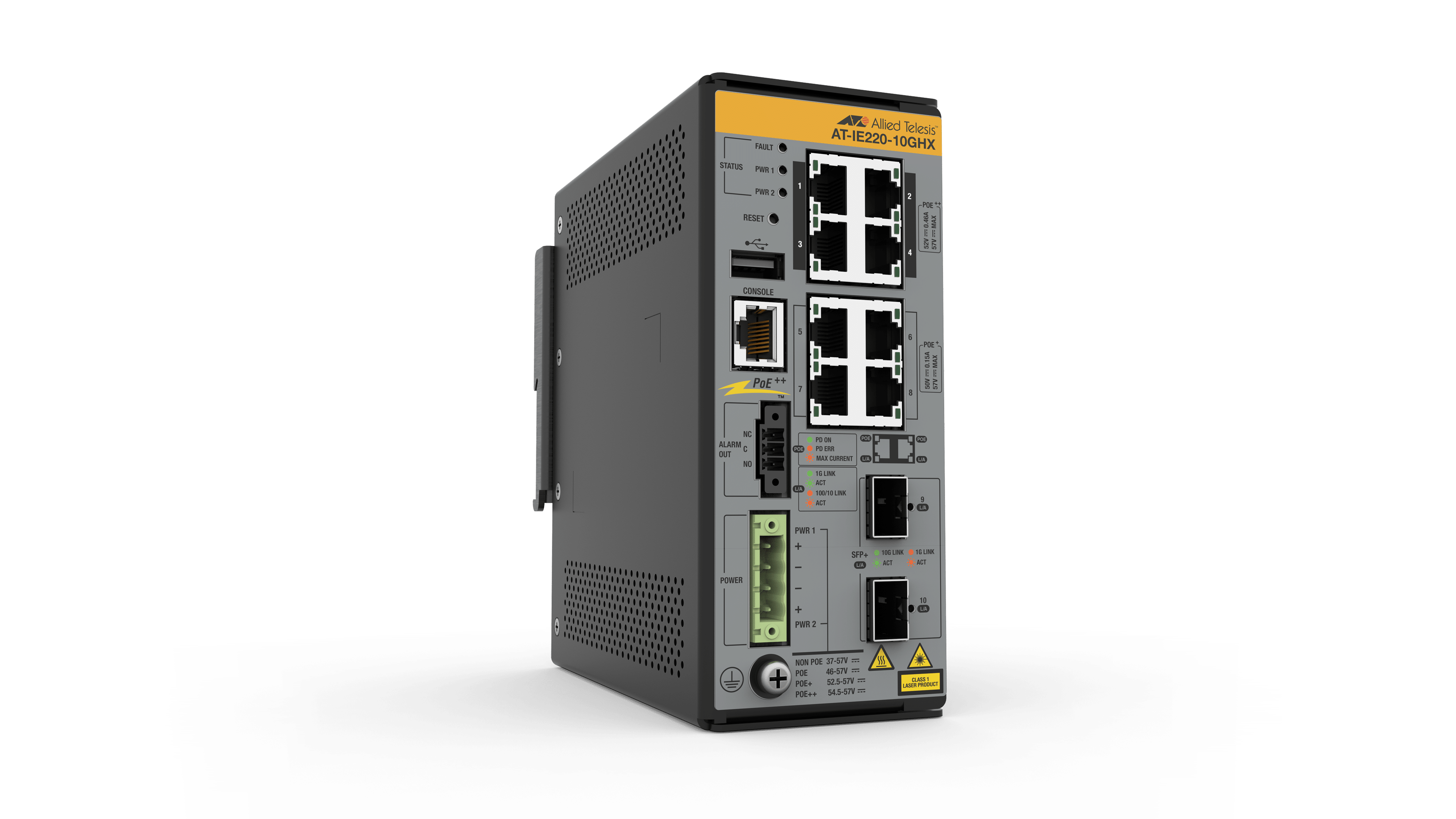

Hanwha - HV-IE220-10GHX-K90 - 8 x Gigabit Ethernet PoE++ 240W Industrial Rugged Switch
Part number:
Price:
The Hanwha HV-IE220-10GHX-K90 is a high-power, industrial-grade Layer 2 managed switch (equivalent to the Allied Telesis IE220 series). This "K90" variant is specifically designed for high-draw edge devices, such as multi-sensor AI cameras and long-range PTZs that require PoE++ (60W/90W) power delivery.
| Network Switch Specifications | |
|---|---|
| 10/100/1000T Copper Ports | 8 |
| 1/10G SFP+ Ports | 2 |
| Total Ports | 10 |
| PoE Enabled Ports | 8 |
| Switching Fabric | 56 Gbps |
| Forwarding Rate | 41.7 Mpps |
| Input Voltage | 37~57V DC |
| Non PoE+ Load | |
| Max Power Consumption (W) | 18.5 |
| Max Heat Dissipation (BTU/H) | 63.3 |
| Max Noise (dBA) | Fanless |
| Full PoE+ Load | |
| Max Power Consumption (W) | 266 |
| Max Heat Dissipation (BTU/H) | 87.7 |
| Max Noise (dBA) | Fanless |
| Total PoE Power Budget (W) | 240 |
| PoE Sourcing Ports | PoE+ (30W): 8, PoE++ (60W): 4, PoE+++ (90W): 2 |
| Physical Characteristics | |
| Width / Depth / Height | 65 x 137 x 155 mm (2.56 x 5.39 x 6.12 in) |
| Weight | Din rail: 1.60 kg (3.53 lb), Wall mount: 1.49 kg (3.28 lb) |
| Enclosure | Aluminium, Sheet Metal Shell |
| Protection Rate | IP30 |
| Port Speed Latency | 100 Mbps: 11.9 µs, 1 Gbps: 2.78 µs, 10 Gbps: 2.33 µs |
