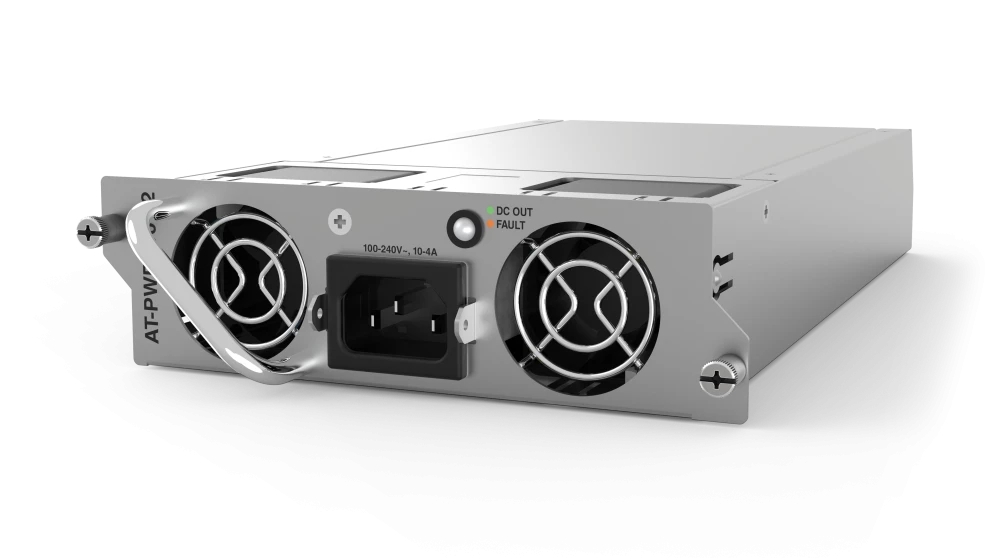

Hanwha - HV-PWR800 V2-10 - 800W AC Hot Swappable Power Supply for AT-x530DP and AT-x930 series switches. US Power cord. Optimized to use with Hanwha network camera products
Part number:
Price:
• 800W AC Hot Swappable Power Supply for AT-x530DP and AT-x930 series switches by Allied Telesis
• US Power cord
• Optimized to use with Hanwha network camera products
| Performance | |
|---|---|
| Port Mirroring | No limit on mirrored ports Up to 7 mirror (analyzer) ports VLAN mirroring (RSPAN) |
| Management | Autonomous Management Framework plus (AMF Plus) Web-based Graphical User Interface (GUI) NETCONF/RESTCONF northbound interface with YANG data modelling |
| Quality of Service | |
| QoS Features | IP precedence and DiffServ marking based on Layer 2, 3 and 4 headers Queue scheduling options for strict priority, weighted round robin or mixed scheduling Taildrop for queue congestion control Extensive remarking capabilities Policy-based QoS based on VLAN, port, MAC and general packet classifiers Limit bandwidth per port or per traffic class down to 64kbps 8 priority queues with a hierarchy of high priority queues for real time traffic Policy-based storm protection Wirespeed traffic classification with low latency |
| Resiliency Features | |
| Resiliency | EPSRing (Ethernet Protection Switched Rings) with SuperLoop Protection (SLP) Bi-directional Forwarding Detection (BFD) STP root guard Loop protection: thrash limiting and loop detection Dynamic link failover (host attach) Control Plane Prioritization (CPP) PVST+ compatibility mode VCStack fast failover SFP+ stacking ports configurable as 10G Ethernet ports Long-Distance VCStack using fiber modules (VCStack-LD) BPDU forwarding |
| Security Features | |
| Security | Federal Information Processing Standard Publication 140-2 (FIPS 140-2) certified 40Gbps of stacking bandwidth 10KB L2 and 9KB L3 Jumbo frames 4094 configurable VLANs Up to 16K MAC addresses Up to 128 Link Aggregation Groups (LAGS) 1GB DDR3 SDRAM, 256MB NAND flash memory |
| Packet Buffer Memory | 1.5MB (28-port models) 3MB (10, 18, DP-28 models) 4.5MB (52-port models) 6MB (DP-52 model) |
| Reliability | |
| Reliability Features | Modular AlliedWare Plus operating system Internal dual fixed PSUs (x530DP models feature dual hot-swappable power supplies) Full environmental monitoring of PSUs, fans, temperature and internal voltages |
| Expandability | |
| Expandability | Stack up to eight* units in a VCStack Versatile licensing options for additional features *Up to 4 units supported if using 1Gbps ports for stacking |
| Flexibility and Compatibility | |
| Compatibility | SFP ports support Allied Telesis 100Mbps and 1Gbps SFP modules 10G SFP+ ports support Allied Telesis 1000Mbps SFP and 10GbE SFP+ modules Port speed and duplex configuration manually or auto-negotiation Front-panel SFP+ stacking ports configurable as 1G/10G Ethernet ports |
| Diagnostic Tools | |
| Diagnostics | Connectivity Fault Management (CFM) Built-In Self Test (BIST) Ping polling and TraceRoute for IPv4 and IPv6 Optical Digital Diagnostic Monitoring (DDM) Find-me device locator Automatic link flap detection and port shutdown Cable fault locator (TDR) Uni-Directional Link Detection (UDLD) Active Fiber Monitoring |
| IPv4 | Equal Cost Multi Path (ECMP) routing Static unicast and multicast routing UDP broadcast helper (IP helper) Directed broadcast forwarding Black hole routing DNS relay Policy-based routing Route redistribution (OSPF, RIP, and BGP) Virtual Routing and Forwarding Lite (VRF-Lite) up to 64 domains |
| IPv6 | Device management over IPv6 networks with SNMPv6, Telnetv6 and SSHv6 IPv4 and IPv6 dual stack IPv6 over IPv4 tunneling Log to IPv6 hosts with Syslog v6 NTPv6 client and server DNSv6 client, DNSv6 relay DHCPv6 server, relay, and client Static IPv6 unicast and multicast routing IPv6 aware storm protection and QoS IPv6 hardware ACLs IPv6 Ready certified |
| Management | |
| Management Features | Industry-standard CLI with context-sensitive help Built-in text editor and powerful CLI scripting engine Comprehensive SNMP MIB support Console management port on front panel Event-based triggers for user-defined scripts Eco-friendly mode for power saving USB interface for file storage and backup Front panel 7-segment LED for status information |
| Security Features (Additional) | |
| Advanced Security | MAC learn limits (intrusion detection) Access Control Lists (ACLs) based on layer 3 and 4 headers Dynamic ACLs assigned via port authentication ACL Groups for multiple hosts/ports Private VLANs for security and port isolation Secure Copy (SCP) BPDU protection Network Access and Control (NAC) features Dynamic VLAN assignment DoS attack blocking and virus throttling Tri-authentication: MAC-based, web-based and IEEE 802.1x DHCP snooping, IP source guard and Dynamic ARP Inspection (DAI) Strong password security and encryption Auth fail and guest VLANs Secure File Transfer Protocol (SFTP) client Authentication, Authorisation and Accounting (AAA) Bootloader password protection Configurable ACLs for management traffic RADIUS group selection per VLAN or port RADIUS Proxy |
| Environmental Specifications | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) 0°C to 65°C (32°F to 149°F) (x530DP models) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Operating Humidity | 5% to 90% non-condensing |
| Operating Altitude | 3,048 meters maximum (10,000 ft) |
| Software Defined Networking (SDN) | |
| SDN | OpenFlow v1.3 with support for encryption, connection interruption and inactivity probe |
| Electrical Approvals and Compliances | |
| EMC | EN55032 class A, FCC class A, VCCI class A, ICES-003 class A |
| Immunity | EN55024, EN61000-3-levels (Harmonics), and 3 (Flicker) – AC models only |
| Safety | |
| Safety Standards | UL60950-1, CAN/CSA-C22.2 No 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Certifications | UL, cUL, FIPS 140-2 |
| Restrictions on Hazardous Substances (RoHS) | |
| RoHS Compliance | EU RoHS compliant China RoHS compliant |
