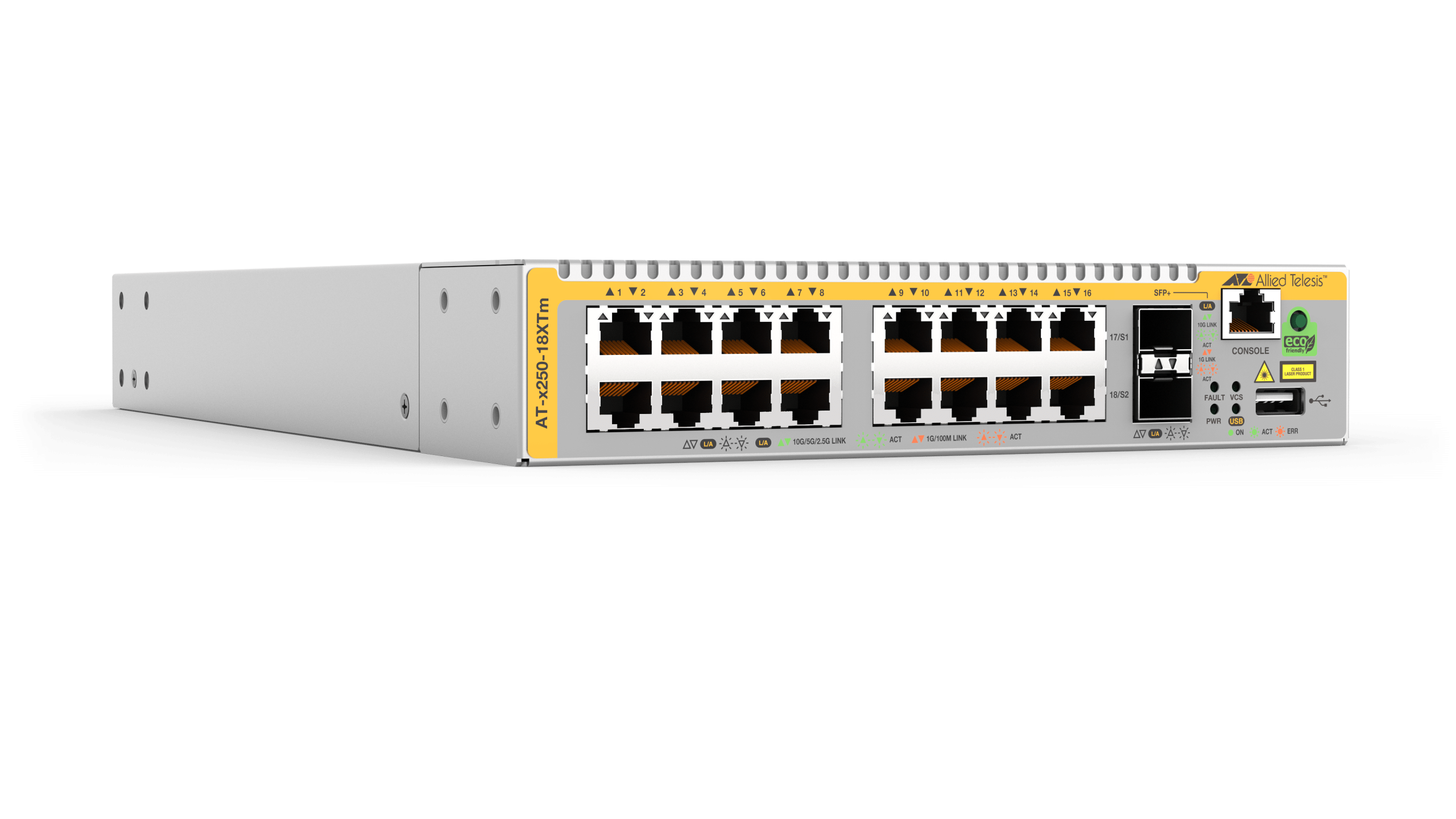

Hanwha - HV-x250-18XTm-10 - 10 Gigabit Layer 3 Lite Stackable Switch, 16x 100M/1/2.5/5/10G
Part number:
Price:
- • 10 Gigabit Layer 3 Lite Stackable Switch by Allied Telesis
- • 16x 100M/1/2.5/5/10G, 2x SFP/SFP+ ports and a single fixed PSU
- • US Power Cord
- • Optimized to use with Hanwha network camera products
| Port Configuration | 16 x 100M/1/2.5/5/10G (RJ-45) Copper Ports + 2 x 1G/10G SFP+ Ports |
| Performance Switching Fabric | 360 Gbps |
| Performance Forwarding Rate | 267.9 Million Packets Per Second (Mpps) |
| Physical Dimensions (W x D x H) | 210 mm x 346 mm x 42.5 mm (8.27 in x 13.62 in x 1.67 in) |
| Mounting | Rack-mountable (Kits available: AT-RKMT-J14, AT-RKMT-J15) |
| Power Supply | Single fixed PSU, US Power Cord included |
| Key Technologies | AlliedWare Plus OS, VCStack™, EPSRing™, AMF Plus, Active Fiber Monitoring |
