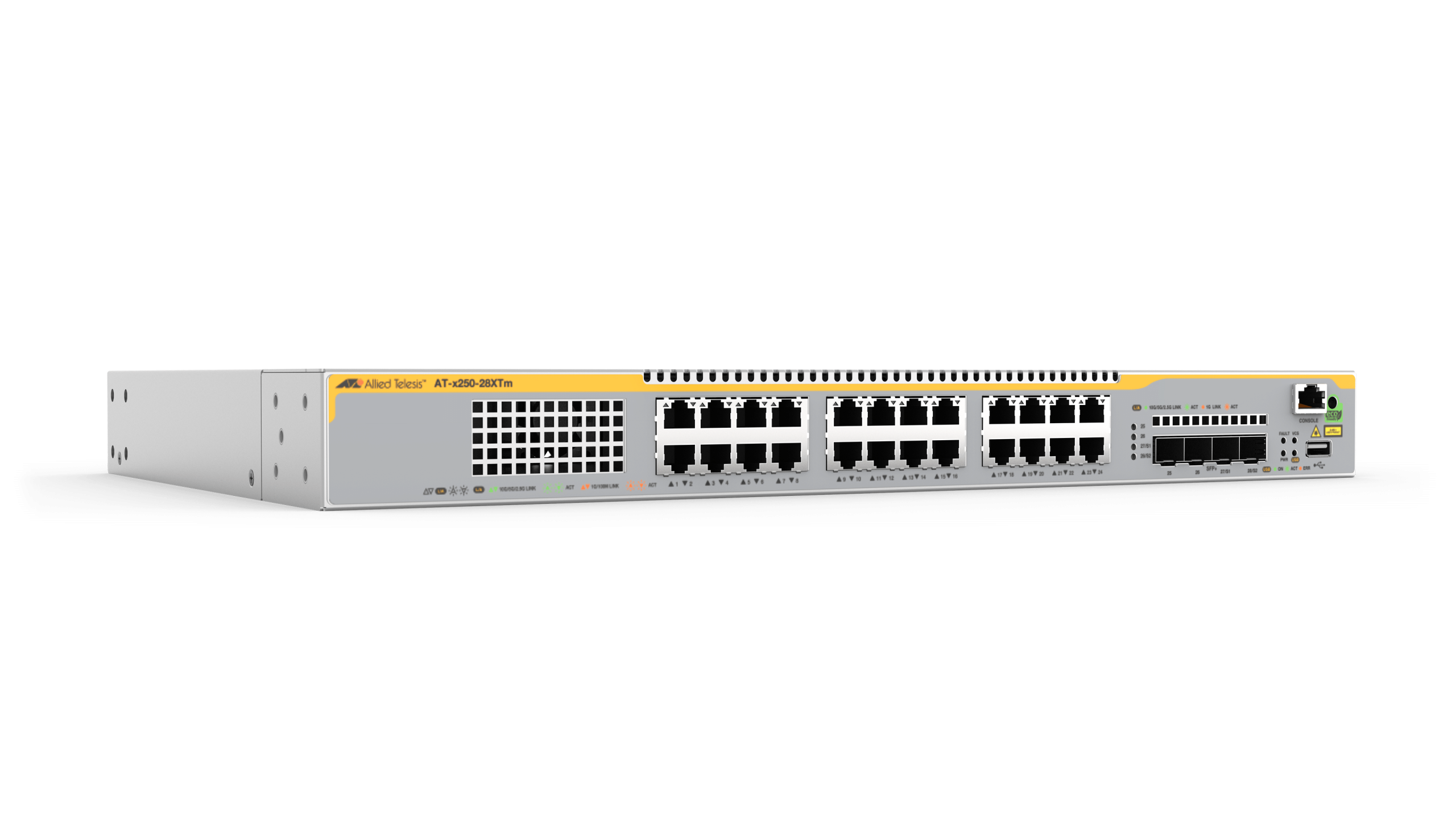

Hanwha - HV-x250-28XTm-10 - 10 Gigabit Layer 3 Lite Stackable Switch, 24x 100M/1/2.5/5/10G, 4x SFP/SFP+ ports and a single fixed PSU, US Power Cord. Optimized to use with Hanwha network camera products
Part number:
Price:
- • 10 Gigabit Layer 3 Lite Stackable Switch by Allied Telesis
- • 24x 100M/1/2.5/5/10G, 4x SFP/SFP+ ports and a single fixed PSU
- • US Power Cord
- • Optimized to use with Hanwha network camera products
| Port Configuration | |
|---|---|
| Ports | 24x 100M/1/2.5/5/10G Copper (RJ-45) & 4x 1G/10G SFP+ |
| Performance | |
| Switching Fabric | 560 Gbps |
| Forwarding Rate | 416.7 Mpps |
| Physical Specifications | |
| Dimensions (W x D x H) | 440 x 290 x 44 mm (17.32 x 11.41 x 1.73 in) |
| Weight | 4.0 kg (8.8 lb) |
| Power & Environmental | |
| Max Power Consumption | 160W |
| Max Heat Dissipation | 540 BTU/h |
| Noise Level | 46-63 dBA |
| Accessories | Single fixed PSU, US Power Cord |
Name
Description
Size
Downloads
File
getting_started_aw_feature_overview_guide_8.pdf
0.8mb
File
Novice_Guide_Networking_6.pdf
0.6mb
File
AE-Document-HV-x250-28XTm.docx
0.1mb
