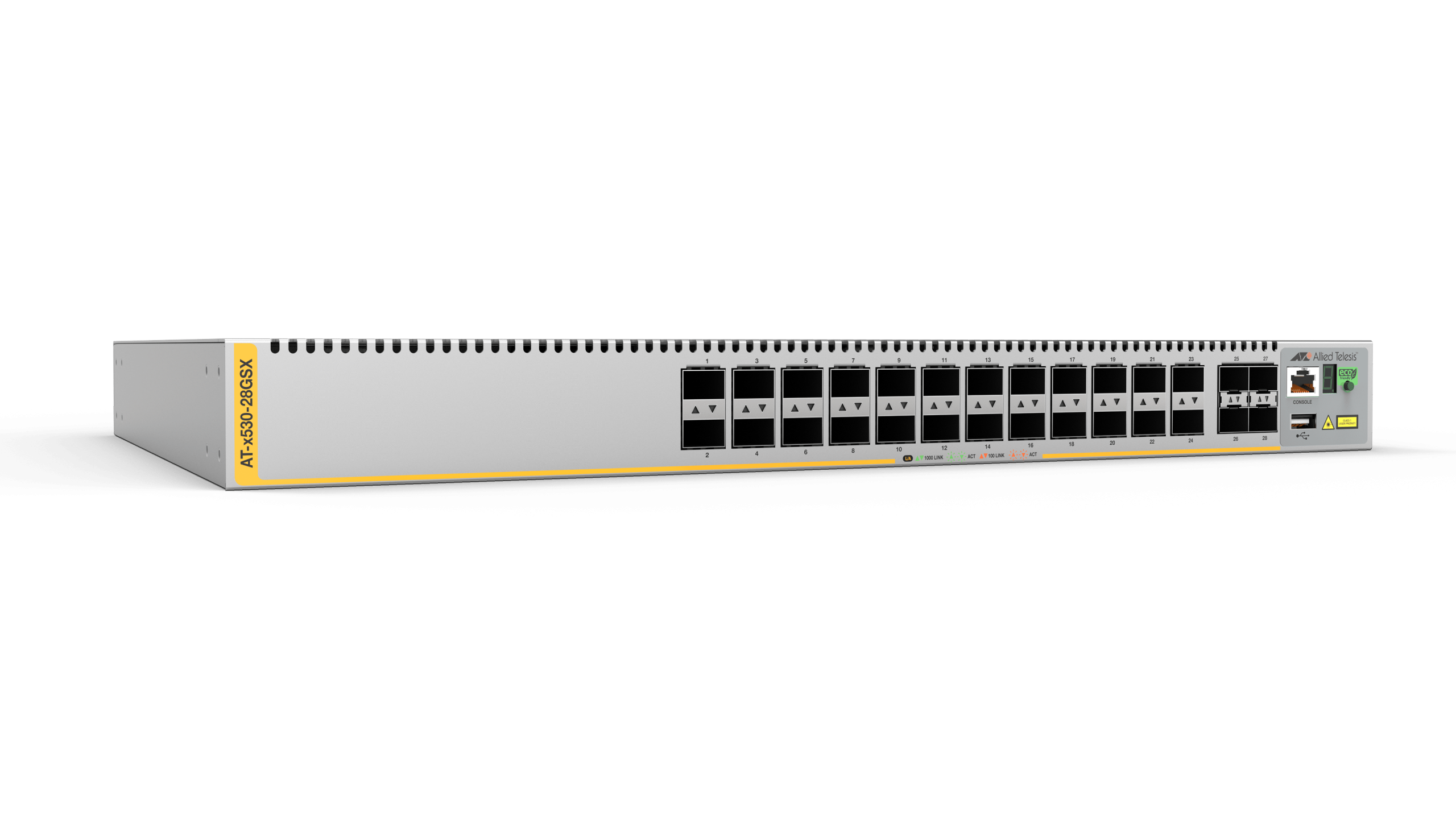

Hanwha - HV-x530-28GSX-90 - Multi-Gigabit L3 Dual PSU Switch
Part number:
Price:
- • Stackable Multi-Gigabit Layer 3 Dual PSU Switch by Allied Telesis
- • 24x. SFP Ports
- • 4x SFP+ Ports and dual fixed PSU
- • TAA compliant
- • Optimized to use with Hanwha network camera products
| Port Configuration | |
|---|---|
| Copper Ports | None (This is an all-fiber SFP model) |
| Fiber Ports | 24 x Gigabit SFP slots 4 x 1/10 Gigabit SFP+ uplink slots |
| Stacking Ports | 2 (Can be used as additional 1G/10G Ethernet ports when not stacked) |
| Performance | |
| Switching Fabric | 128 Gbps |
| Forwarding Rate | 95 Mpps (Million packets per second) |
| Power Supply | |
| Power Supply | Dual fixed PSUs |
| Physical Specifications | |
| Dimensions (W x D x H) | 441 x 323 x 44 mm (17.36 x 12.72 x 1.73 in) |
| Weight | 5.2 kg (11.46 lb) - Unpackaged |
| Power & Environmental | |
| Power Consumption | 62 W (Max, no PoE load) |
| Heat Dissipation | 212 BTU/h (No PoE load) |
| Noise Level | 36 dBA (No PoE load) |
Name
Description
Size
Downloads
File
ati-x530series-datasheet_1.pdf
0.9mb
