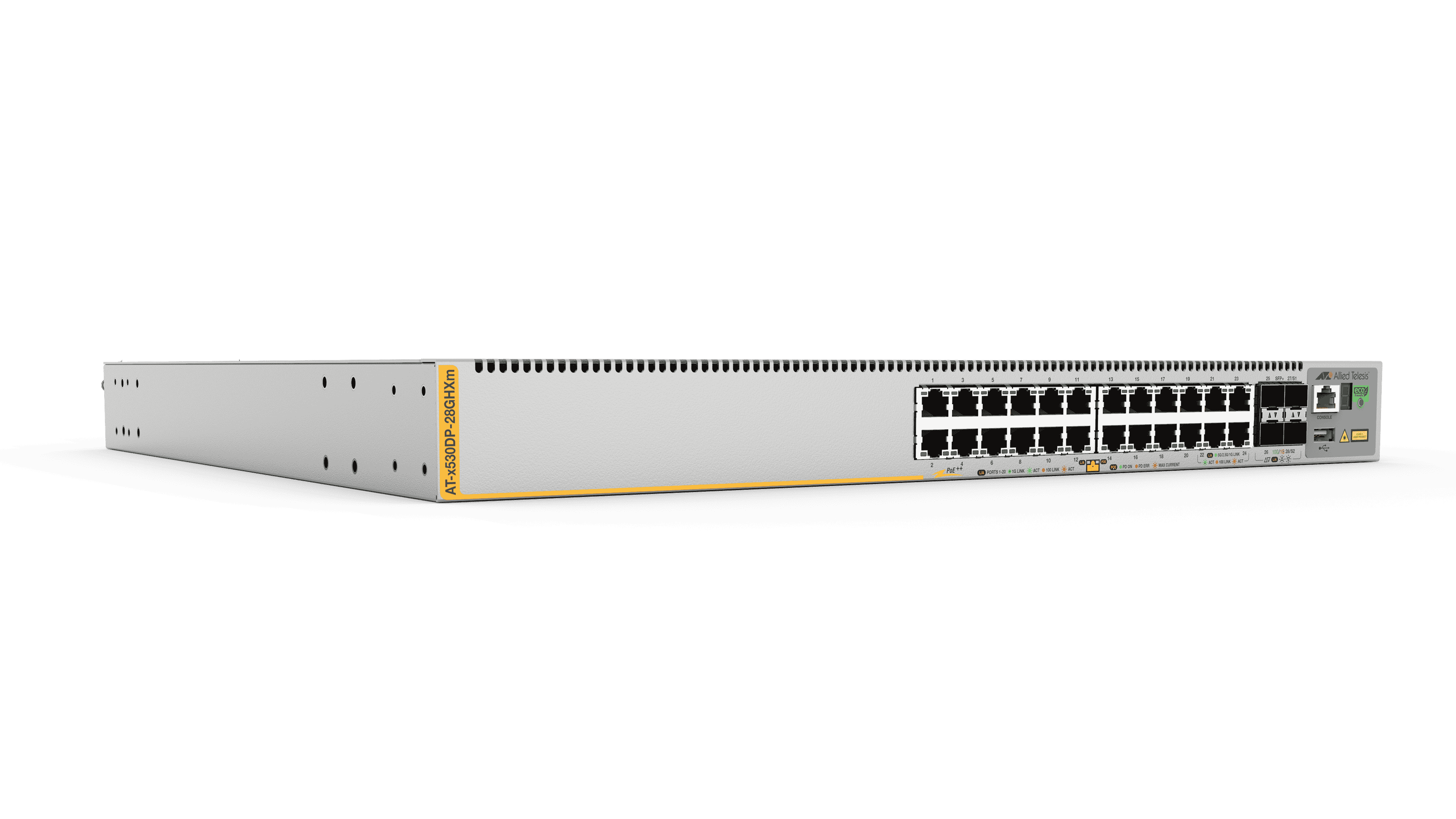

Hanwha - HV-X530DP-28GHXM-900 - 20 x Gigabit Ethernet PoE++ 1480 W
Part number:
Price:
• 24 ports, with 4 uplinks
• Swappable PSU
• 1480W PoE+/PoE++ power budget with x2 PWR1200V2
• Fully managed
• AW+ OS (CLI, GUI and NetCONF/RESTCONF)
• SFP+ support 1Gbps and 10Gbps
• Active fiber monitoring
• Static and multicast routing
• Tri-authentication: MAC-based, Web-based and IEEE 802.1x
• QoS classification
• Virtual Chassis Stack (up to 8)
• EPSR Master or Transit
• Compatible Power Supply - PWR1200V2
| Network Switch Specifications | |
|---|---|
| 10/100/1000T Copper Ports | 24 |
| 1/10G SFP+ Ports | 4 |
| Total Ports | 28 |
| PoE+ Enabled Ports | 24 |
| Switching Fabric | 160 Gbps |
| Forwarding Rate | 119 Mpps |
| Non PoE+ Load | |
| Max Power Consumption (W) | 140 |
| Max Heat Dissipation (BTU/H) | 478 |
| Max Noise (dBA) | 63 |
| Full PoE+ Load | |
| Max Power Consumption (W) | 1840 |
| Max Heat Dissipation (BTU/H) | 6279 |
| Max Noise (dBA) | 63 |
| Total PoE Power Budget (W) | 1480 |
| PoE Sourcing Ports | PoE (7.5W): 24, PoE (15.4W): 24, PoE+ (30W): 24, PoE++ (60W): 24 |
| Physical Characteristics | |
| Height | 44 mm (1.73 in) |
| Width | 441 mm (17.36 in) |
| Depth | 420 mm (16.53 in) |
| Weight | 5.4 kg (11.9 lb) |
| Port Speed Latency | |
| 10 Mbps | 30.12 µs |
| 100 Mbps | 7.38 µs |
| 1 Gbps | 4.05 µs |
| 2.5 Gbps | 7.74 µs |
| 5 Gbps | 5.28 µs |
| 10 Gbps | 1.63 µs |
