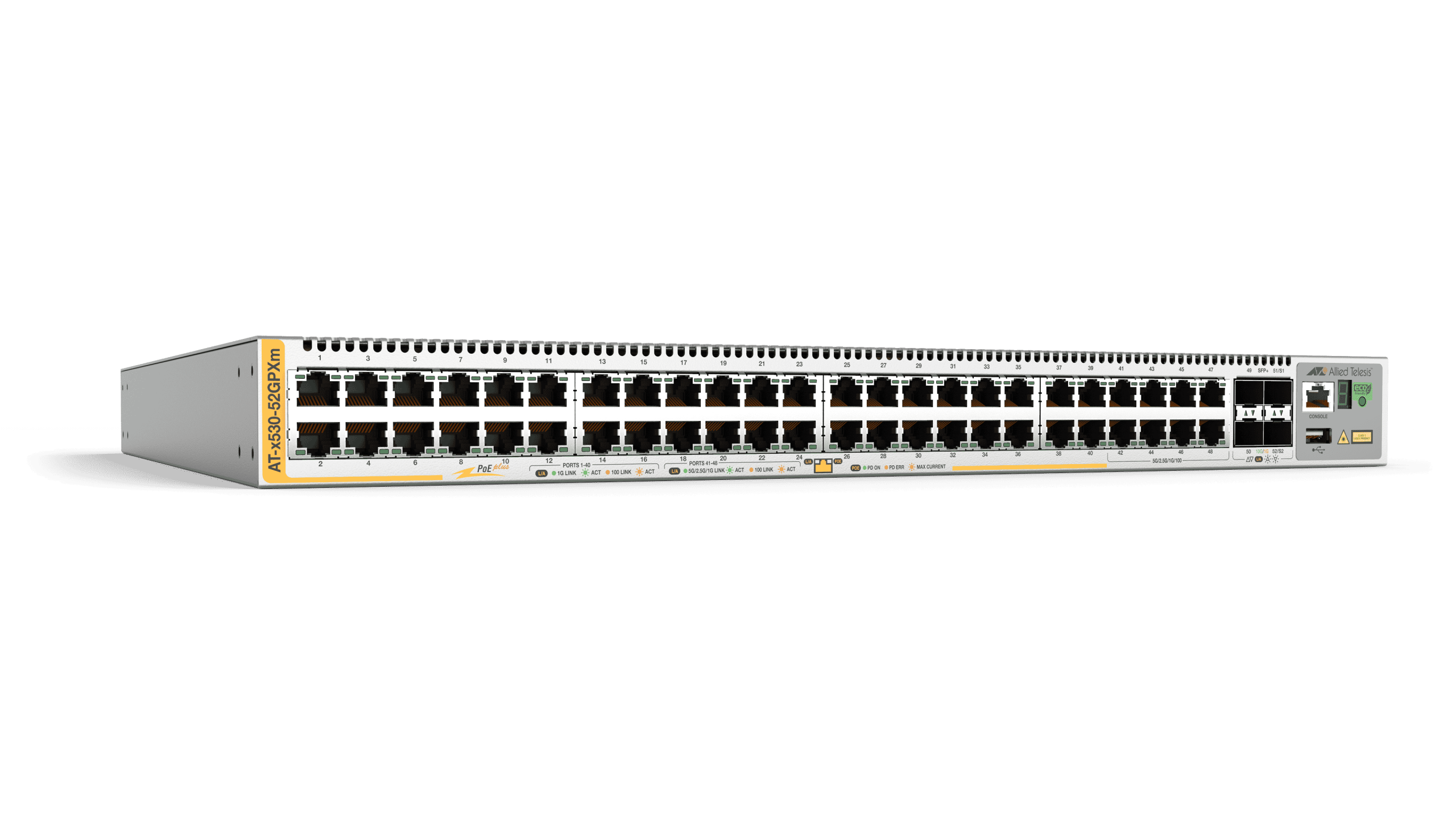

Hanwha - HV-X530L-52GPX-90 - 48 x Gigabit Ethernet PoE+ 740W
Part number:
Price:
• 8/16/24/48 ports, with 2/4 uplinks
• 520/740W PoE+/PoE++ power budget
• Fully managed
• AW+ OS (CLI, GUI and NetCONF/RESTCONF)
• SFP+ support 1Gbps and 10Gbps
• Active fiber monitoring
• Static and multicast routing
• Tri-authentication: MAC-based, Web-based and IEEE 802.1x
• QoS classification
• Virtual Chassis Stack (up to 8)
• EPSR Master or Transit
| Ports & Performance | |
|---|---|
| 10/100/1000T Copper Ports | 48 |
| 100M/1/2.5/5 Gigabit Ports | 0 |
| 1/10G SFP+ Ports | 4 |
| Total Ports | 52 |
| PoE+ Enabled Ports | 48 |
| Switching Fabric | 176 Gbps |
| Forwarding Rate | 130.9 Mpps |
| Non PoE+ Load | |
| Max Power Consumption (W) | 95 |
| Max Heat Dissipation (BTU/H) | 324 |
| Max Noise (dBA) | 42 |
| Full PoE+ Load | |
| Max Power Consumption (W) | 950 |
| Max Heat Dissipation (BTU/H) | 3242 |
| Max Noise (dBA) | 42 |
| Total PoE Power Budget (W) | 740 |
| PoE Sourcing Ports | PoE (7.5W): 48, PoE (15.4W): 48, PoE+ (30W): 24, PoE++ (60W): -, PoE++ (90W): - |
| Physical Characteristics | |
| Height | 44 mm (1.73 in) |
| Width | 441 mm (17.36 in) |
| Depth | 421 mm (16.57 in) |
| Weight | 6.7 kg (14.47 lb) |
| Port Speed Latency | |
| 100 Mbps | 8.34 µs |
| 1 Gbps | 5.27 µs |
| 2.5 Gbps | - |
| 5 Gbps | - |
| 10 Gbps | 1.67 µs |
