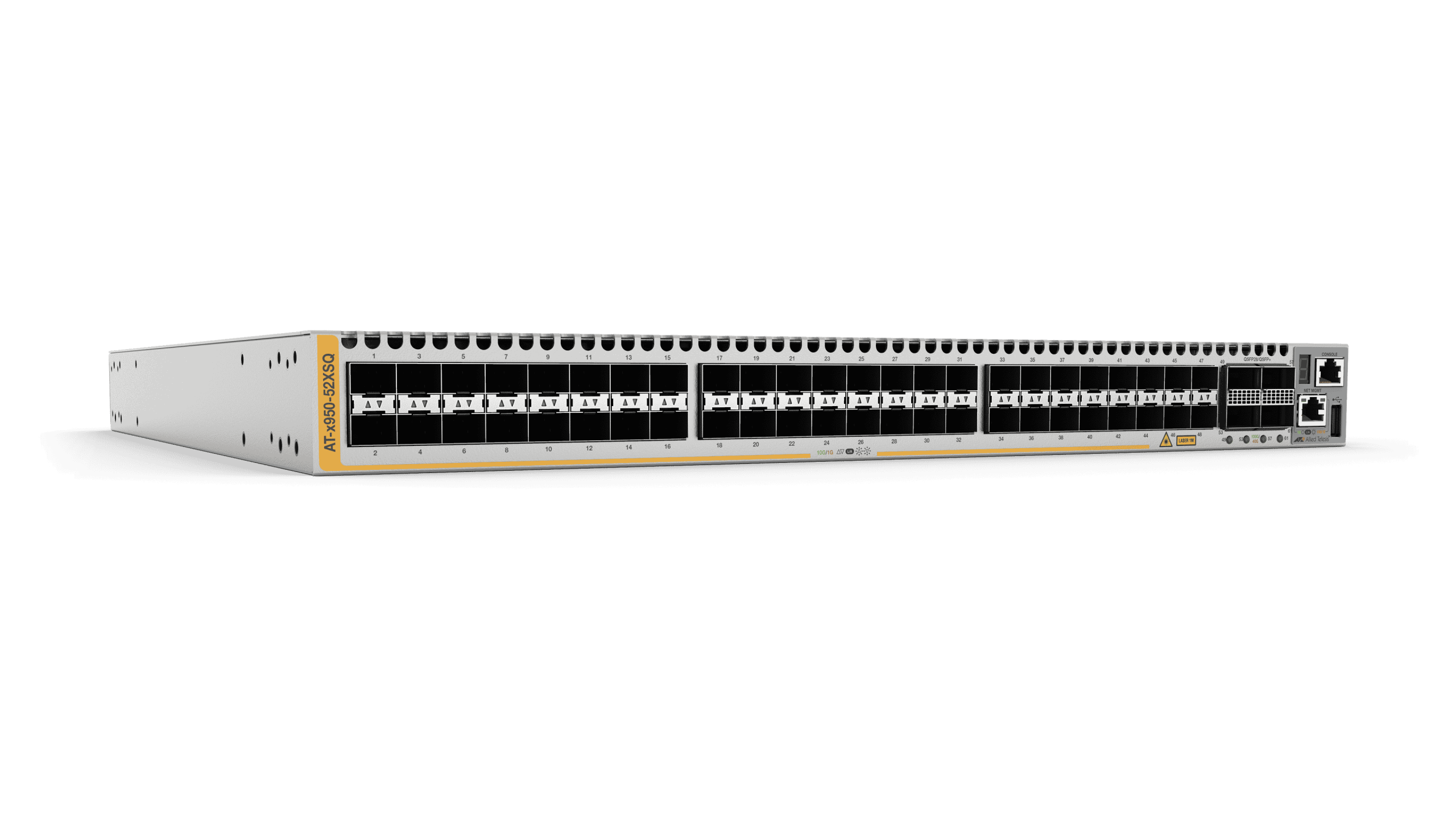

Hanwha - HV-x950-52XSQ-900 - Top of the Rack switch L3 Dual Hotswap PSU
Part number:
Price:
- • Advanced Layer 3 Stackable Switch by Allied Telesis
- • 48x 1/10G SFP+ slot
- • 4x 40/100G QSFP28 slot
- • 2x PSU bays
- • PSU must be ordered separately
- • Purchasing service needed
- • TAA compliant
- • Optimized to use with Hanwha network camera products
| Port Configuration | |
|---|---|
| SFP+ Ports | 48 x 1/10 Gigabit SFP+ |
| QSFP28 Ports | 4 x 40G/100G QSFP28 |
| Expansion | No expansion bay (XEM) on 52-port model |
| Performance | |
| Switching Fabric | 1.92 Tbps |
| Forwarding Rate | 1,309 Mpps |
| Power Supply | |
| Power Supply | Dual, hot-swappable, load-sharing PSUs (AC and/or DC) |
| Physical Specifications | |
| Dimensions (W x D x H) | 441 x 449 x 44 mm (17.36 x 17.68 x 1.73 in) – 1 Rack Unit (RU) |
| Weight | 7.5 kg (16.5 lbs) – Unpackaged |
| Power & Environment | |
| Max Power Consumption | 266.1W (with two PSUs) |
| Max Heat Dissipation | 908.1 BTU/h |
| Noise Level | 65.7 dBA |
