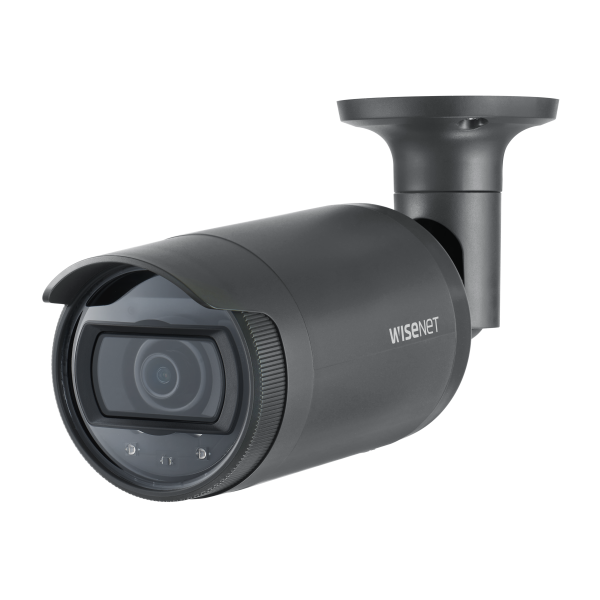

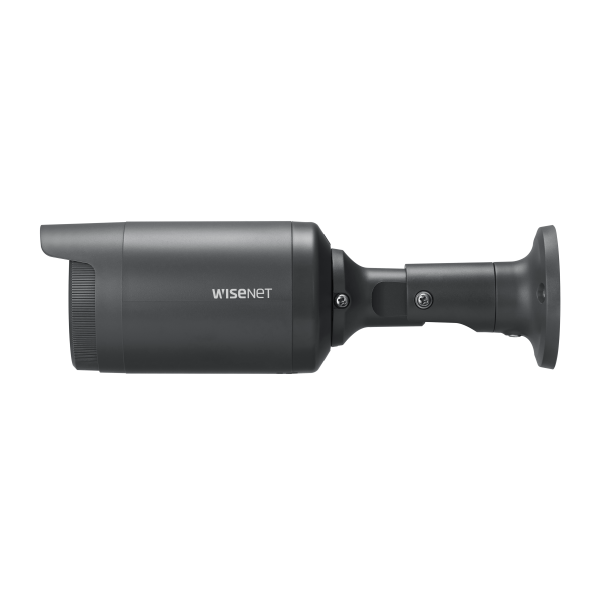

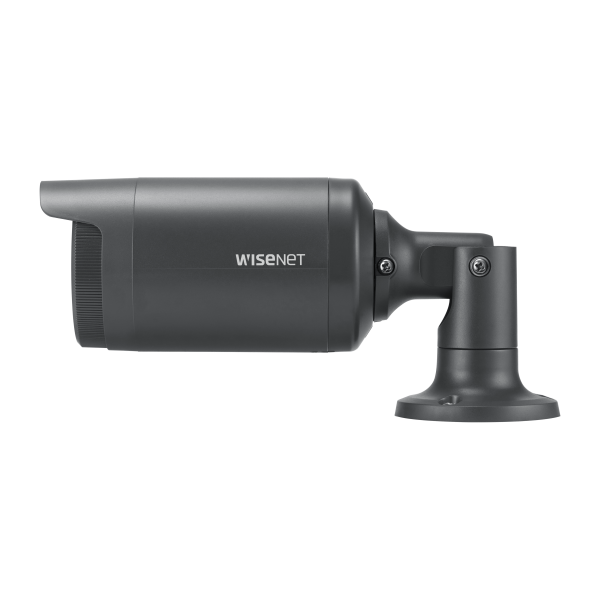

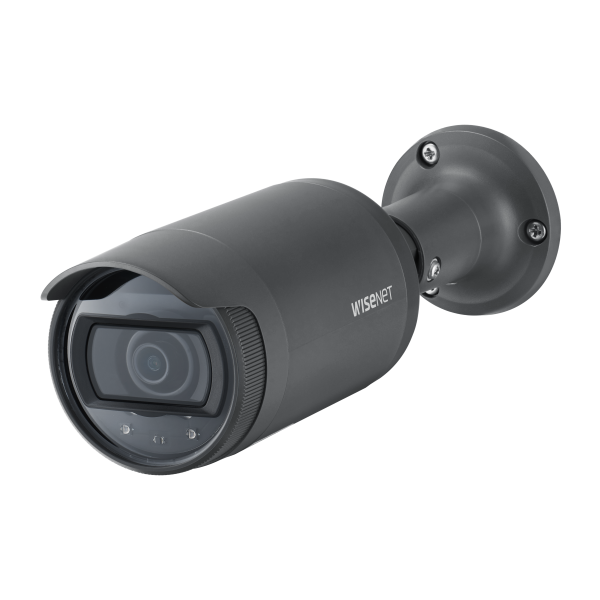

Hanwha - LNO-6012R - 2MP Outdoor Network Bullet Camera with Night Vision with Built-in 2.8mm fixed lens
Part number:
LNO-6012R
Price:
The Wisenet L series outdoor bullet camera provides excellent quality and outstanding value, featuring 2MP @ 30fps, 2.8mm fixed focal lens (113.7°), Double codec H.264/MJPEG, Wisestream II, 120dB WDR, IR LEDs, hallway view, SD card, IP66, PoE.
Features:
- 2 megapixel (1920 x 1080) resolution
- Built-in 2.8mm fixed lens
- 30fps@ all resolutions (H.264)
- H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Tampering, Motion detection
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR viewable length 30m
- IP66 support
- Genetec Stratocast compatible
Video
| Imaging Device | 1/2.8" 2 MP CMOS |
| Effective Pixels | 1945(H)x1097(V) |
| Minimum Illumination | Color: 0.1Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on) |
Lens
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Focus Control | Fixed |
| MaxJNVN Aperture Ratio | F2.0 |
| Angular Field of View | H: 113.7 / V: 61.5° / D: 134.5° |
Operational
| IR Viewable Length | 30m(98.43ft) |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Alarm Triggers | Analytics |
| Alarm events | File upload via FTP and e-mail Notification via e-mail |
| Ethernet | RJ-45 (10/100BASE-T) |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
