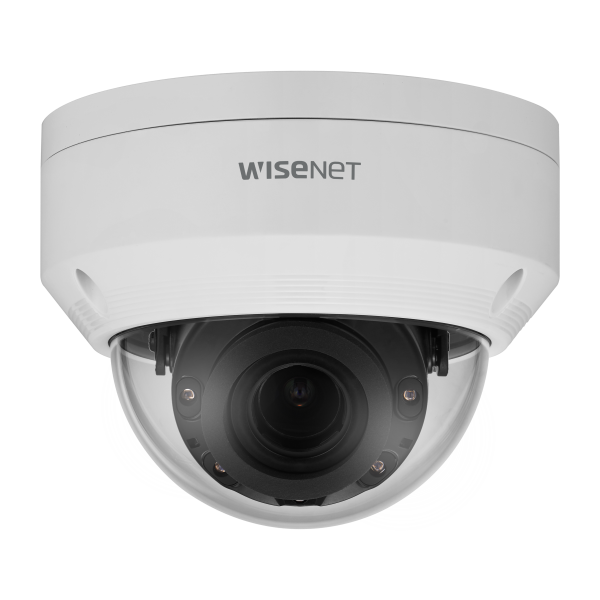

Hanwha - LNV-6072R - 2MP IR Outdoor Dome Camera
Part number:
LNV-6072R
Price:
The Wisenet L series outdoor vandal dome camera provides excellent quality and value, featuring 2MP @ 30fps, vari-focal lens 3.1x (3.2 ~ 10mm) (101.6° ~31.3°), Double codec H.264/MJPEG, Wisestream II, 120dB WDR, IR LEDs, hallway view, SD card, IP66, IK10, PoE, white camera body.
Features:
- 2 Megapixel (1920 x 1080) resolution
- 3.2 ~ 10mm varifocal lens
- 30fps@all resolutions (H.264)
- H.264, MJPEG codec support, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Tampering, Motion detection
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway View, WiseStream II support
- IR viewable length 30m
- IP66, IK10 support
- White camera body
- Genetec Stratocast compatible
Video
| Imaging Device | 1/2.8" 2MP CMOS |
| Effective Pixels | 1945(H)x1097(V) |
| Minimum Illumination | Color: 0.095Lux(F1.6, 1/30sec) BW : 0Lux (IR LED on) |
Lens
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) manual varifocal |
| Maximum Aperture Ratio | F1.6(Wide)~F2.9(Tele) |
| Angular Field of View | H: 109.0°(Wide)~33.2°(Tele)/ V: 57.4°(Wide)~18.7° (Tele)/ D: 132.0°(Wide)~38.0° (Tele) |
| Focus Control | Manual |
| Minimum Object Distance | 0.5m(1.64ft) |
| Lens Type | DC auto iris |
Operational
| IR Viewable Length | 30m(98.43ft) |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto (ICR |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Alarm Triggers | Analytics |
| Alarm events | File upload via FTP and e-mail Notification via e-mail |
| Ethernet | RJ-45 (10/100BASE-T) |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
