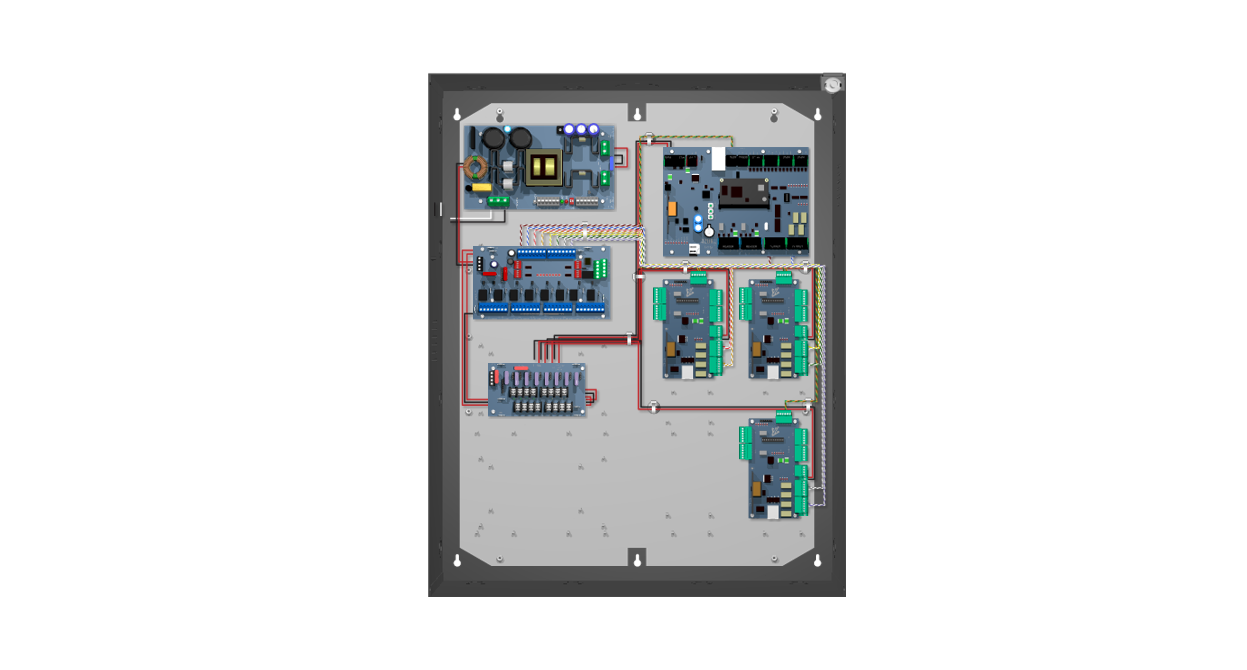

Hanwha - NOA-E2PW8 - Enclosure Kit, Access and Power Integration Solution 8-Door
Part number:
Price:
- • 8-door kit
- • Prewired for 1 × 2-Door Network Controller (IC2) and 3 × Downstream Reader Interfaces (RI2M)
- • Includes eFlow6NB power supply/charger (10A @ 12/24VDC, network-managed)
- • PDS8CB 8-output power distribution module (2.5A max per output, PTC protected)
- • VR6 voltage regulator (up to 6A output)
- • ACMS8CB 8-relay access control module (2.5A max per output, fused)
- • Dual-voltage outputs for controllers and locking devices
- • Factory-installed wire management and harness assemblies with terminal blocks
- • 16 AWG galvanized steel backplane
- • Convenient knockout configuration: 1 × 2" conduit, 16 × double knockouts for 1/2" & 3/4"
- • Supervision for AC fail, battery fail/presence, and low power shutdown
- • Accommodates up to four 12VDC/7AH batteries
- • CE compliant
- • Lifetime warranty on Altronix power supply/chargers and sub-assemblies
- • Dimensions: 27.25" × 21.5" × 6.5" (692.2 × 546.1 × 165.1 mm)
- • Controller and expansion panels sold separately
| POWER SUPPLY / CHARGER (eFLOW104NB) | |
|---|---|
| Input Fuse | 6.3A/250V |
| Input Voltage | 120VAC, 60Hz. 4.5A max |
| Output Voltage | 24VDC @ 10A |
| Output Auxiliary | 1A (unswitched) |
| Output Protection | Overvoltage protection. Filtered and regulated |
| Battery Charging Capacity | 7AH/12VDC (2 within enclosure), 40AH/65AH (requires separate enclosure) |
| Battery Charging Type | Sealed lead acid or gel type |
| Battery Charging Failover | Upon AC loss, instantaneous (Batteries are sold separately) |
| Fire Alarm Disconnect Supervised | Latching or non-latching |
| Fire Alarm Disconnect EOL | 10K Resistor |
| Supervision AC Failure | Form "C" contacts |
| Supervision Battery | Form "C" contacts |
| Supervision Low DC Power Shutdown | Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply) Prevents deep battery discharge |
| Indicators (LED) AC Output | 120VAC is present |
| Indicators (LED) DC Output | 24VDC is present |
| Indicators (LED) Battery | Discharged or not connected |
| DUAL INPUT ACCESS POWER CONTROLLER (ACMS8CB) | |
| Input Voltage | 24VDC from eFlow104NB and 12VDC from VR6 |
| Input PTC's | 9A |
| Output Voltage | 24VDC |
| Outputs | Eight (8) independently controlled PTC outputs: a) Fail-Safe and/or Fail-Secure power outputs Form "C" Relays rated 28VAC or VDC @ 2.5A b) Auxiliary power outputs (unswitched) c) Any combination of the above |
| Output PTC's | 2.5A |
| Indicators (Red LEDs) | Outputs are triggered (relays energized) |
| Indicators (Green LEDs) | FACP disconnect is triggered |
| VOLTAGE REGULATOR (VR6) | |
| Output Voltage | 12VDC |
| Output Current | 6A continuous |
| Other | Surge suppression |
| Indicators (LED) Input | 24VDC is present |
| DUAL INPUT POWER DISTRIBUTION MODULE (PDS8CB) | |
| Input Voltage | 24VDC from eFlow104NB and 12VDC from VR6 |
| Input PTC's | 9A |
| Output Voltage | 12VDC and/or 24VDC |
| Outputs | • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2 • Individual outputs may be set to OFF position for servicing |
| Output PTC's | 2.5A |
| Indicators (LED) DC Output | Eight (8) individual output LEDs Green: 12VDC Red: 24VDC |
| NOA-E2PW8 KIT | |
| Agency Listings | All components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. |
| CE | European Conformity |
| PHYSICAL AND ENVIRONMENTAL | |
| Dimensions (H x W x D) Enclosure | 27.25" x 21.5" x 6.5" (692.2mm x 546.1mm x 165.1mm) |
| Dimensions (H x W x D) Shipping | 32.5" x 26.5" x 11.125" (825.5mm x 673.1mm x 282.6mm) |
| Product Weight (Approx.) | 41.6lb. (18.87kg) |
| Shipping Weight (Approx.) | 45.6lb. (20.68kg) |
| Operating Temperature | 0°C to 49°C (32°F to 120°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr (approx.) | 145 BTU/Hr. |
